CONNECTION TO AN EXTERNAL UNIT

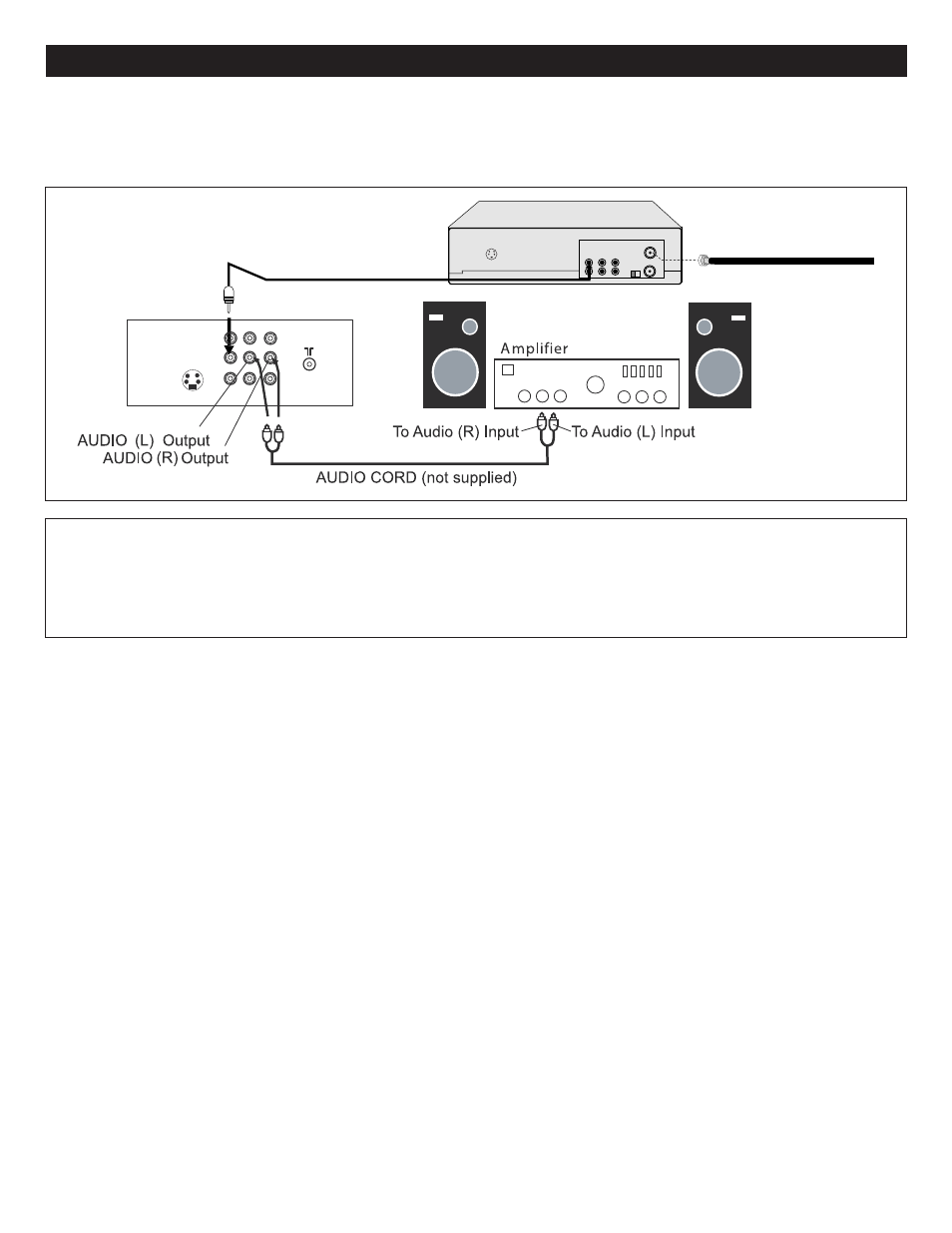

CONNECTION USING THE AUDIO/VIDEO OUT JACKS:

Follow the instructions below to connect an external audio unit. This will output the sound from the TV into the external audio

unit’s speakers.

1. Connect the left and right audio cable from the Amplifier’s Audio IN jacks to this unit’s AUDIO OUT jacks.
2. If desired, connect an external unit’s Video IN jack to this unit’s Video OUT jack.

VIDEO CORD (not supplied)

VIDEO OUT Jack

VIDEO IN Jack
