CONNECTIONS
7

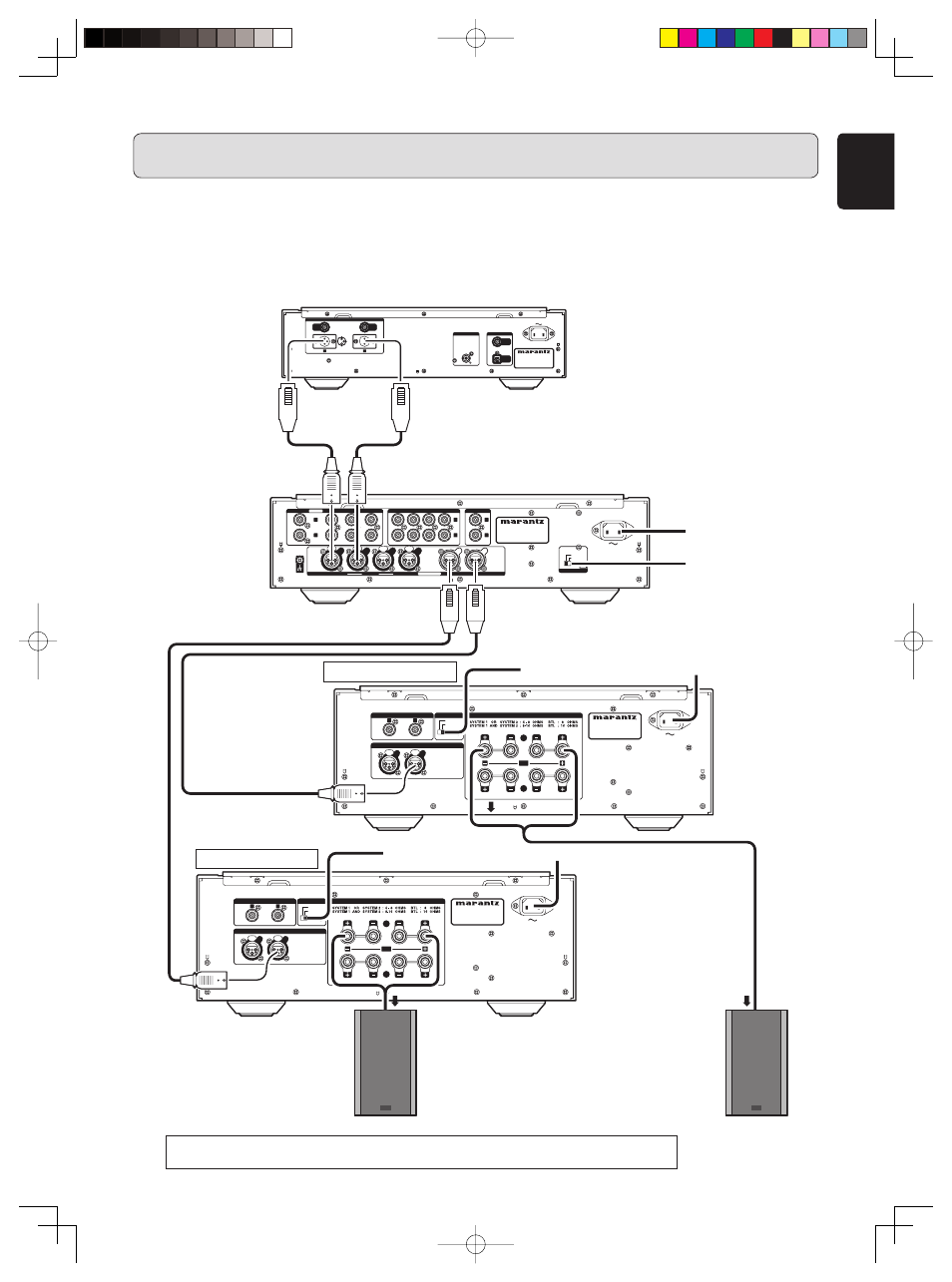

Connection Example 3: Connection for using connecting 2 SM-11S1s in BTL mode for
stereo playback
Note:
When using this unit in BTL mode, ensure that the speakers have an impedance of more than 8 Ω .
BALANCED
HOT (+)
GND
L R
ANALOG OUTPUTS
EXT.CLOCK INPUT DIGITAL OUTPUTS
UNBALANCED L R
COAX.
OPT.
AC IN
MODEL NO. SA-11S2
COLD (-)
AC IN
MODEL NO. SM-11S1
R CH L CH
R CH L CH
R L STEREO
UNBALANCED INPUT
BALANCED INPUT
AMP MODE
BTL
BTL
L R
BTL
SPEAKER SYSTEMS
1
2
BTL 3 3 1 1 2 2 3 3 1 1 2 2
PUSH PUSH PUSH PUSH
AC IN
MODEL NO. SM-11S1
R CH L CH
R CH L CH
R L STEREO
UNBALANCED INPUT
BALANCED INPUT
AMP MODE
BTL
BTL
L R
BTL
SPEAKER SYSTEMS
1
2
BTL 3 3 1 1 2 2 3 3 1 1 2 2
PUSH PUSH PUSH PUSH
3 3 1 1 2 2 3 3 1 1 2 2 3 3 1 1 2 2 3 3 1 1 2 2 3 3 1 1 2 2 3 3 1 1 2 2
AC IN
MODEL NO. SC-11S1
STEREO
BI-AMP
PHONO
GND
AMP MODE
R R
L
R
L
R
L
R
PHONO CD 1 2 - LINE - PRE OUT
IN OUT IN OUT
1 2 - RECORDER -
PRE OUT 2 INPUT 1 BALANCED
INPUT
L L R L PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH
CD Player
L ch R ch To BALANCED
LINE OUT jack
To power outlet
Set to STEREO
To power outlet Set to BTL
To power outlet Set to BTL
Speaker R ch Speaker L ch
L ch R ch
Set the BALANCED button and SPEAKER 1 button on the front panel of the SM-11S1s for both the left
channel and right channel to ON
SM-11S1 for L ch
SM-11S1 for R ch
