4
ENGLISH

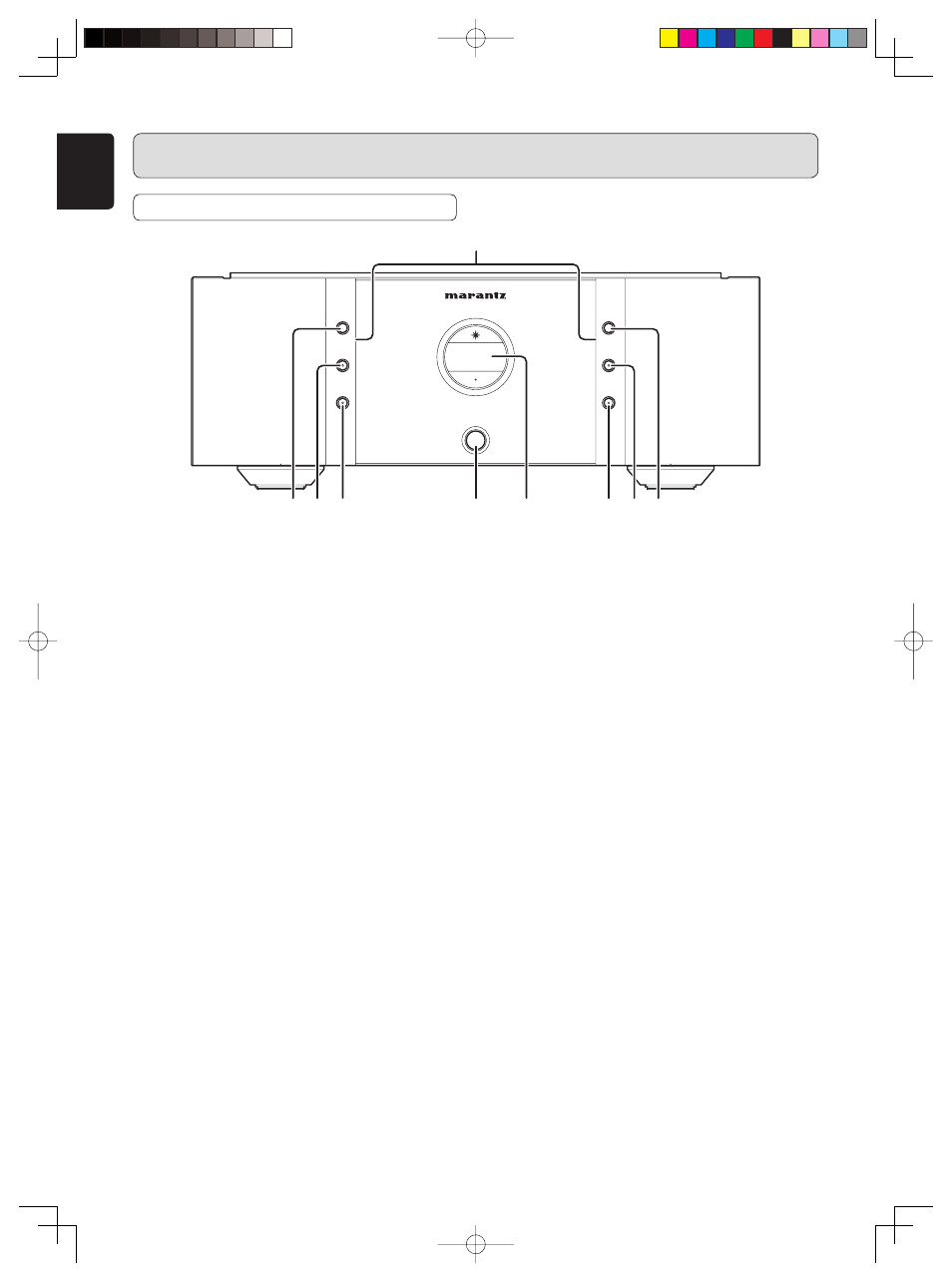

NAMES AND FUNCTIONS OF PARTS
DISPLAY DISPLAY
POWER ON/OFF POWER ON/OFF
METER METER MODE MODE
BALANCED BALANCED
UN- UN- BALANCED BALANCED
SPEAKERS SPEAKERS 1
SPEAKERS SPEAKERS 2
STANDBY STANDBY
q o w
y
u i e t r
q POWER ON/OFF Switch
This switch turns power to the SM-11S1 ON and OFF.
When pressed, power is activated and the blue indicator
in the display
w lights up. Pressing the switch again turns
the power OFF.
w Display
The monitor displays the output power to the speakers,
and setting status of the various setting modes.
e UNBALANCED Input Selection Button
This button switches the input signal from the
UNBALANCED terminal on the rear panel ON/OFF.
Press this button for 3 seconds or more to set the gain
settings for the input signal from the UNBALANCED
terminal. For instructions on
BALANCED INPUT /
UNBALANCED INPUT GAIN SETTING , see pg. 18.
r Balanced Input Selection Button
This button switches the input signal from the BALANCED
terminal on the rear panel ON/OFF.
Press this button for 3 seconds or more to set the gain
settings for the input signal from the BALANCED terminal.
For instructions on
BALANCED INPUT / UNBALANCED
INPUT GAIN SETTING , see pg. 18.
t METER MODE Button
This button changes the display to digital power meter
display mode. For more information on
HOW TO USE
THE METER BUTTON (DIGITAL POWER METER) , see
pg. 18.
y Illumination Lamp
The illumination lamp casts a blue light over the switches
and buttons.
It can be turned ON and OFF with the DISPLAY button.
For instructions on
HOW TO OPERATE THE SIDE
ILLUMINATION , see pg. 19.
u DISPLAY Button
This button turns the display and side illumination ON and
OFF. For instructions on
HOW TO OPERATE THE SIDE
ILLUMINATION , see pg. 19.
i SPEAKERS 1 Button
This button switches the speaker output signal from the
SPEAKERS 1 terminal on the rear panel ON/OFF.
o SPEAKERS 2 Button
This button switches the speaker output signal from the
SPEAKERS 2 terminal on the rear panel ON/OFF.
FRONT PANEL
