OM-228 956 Page 39
.
Hardware is common and
not available unless listed.
804 589-A
1
2
3
4

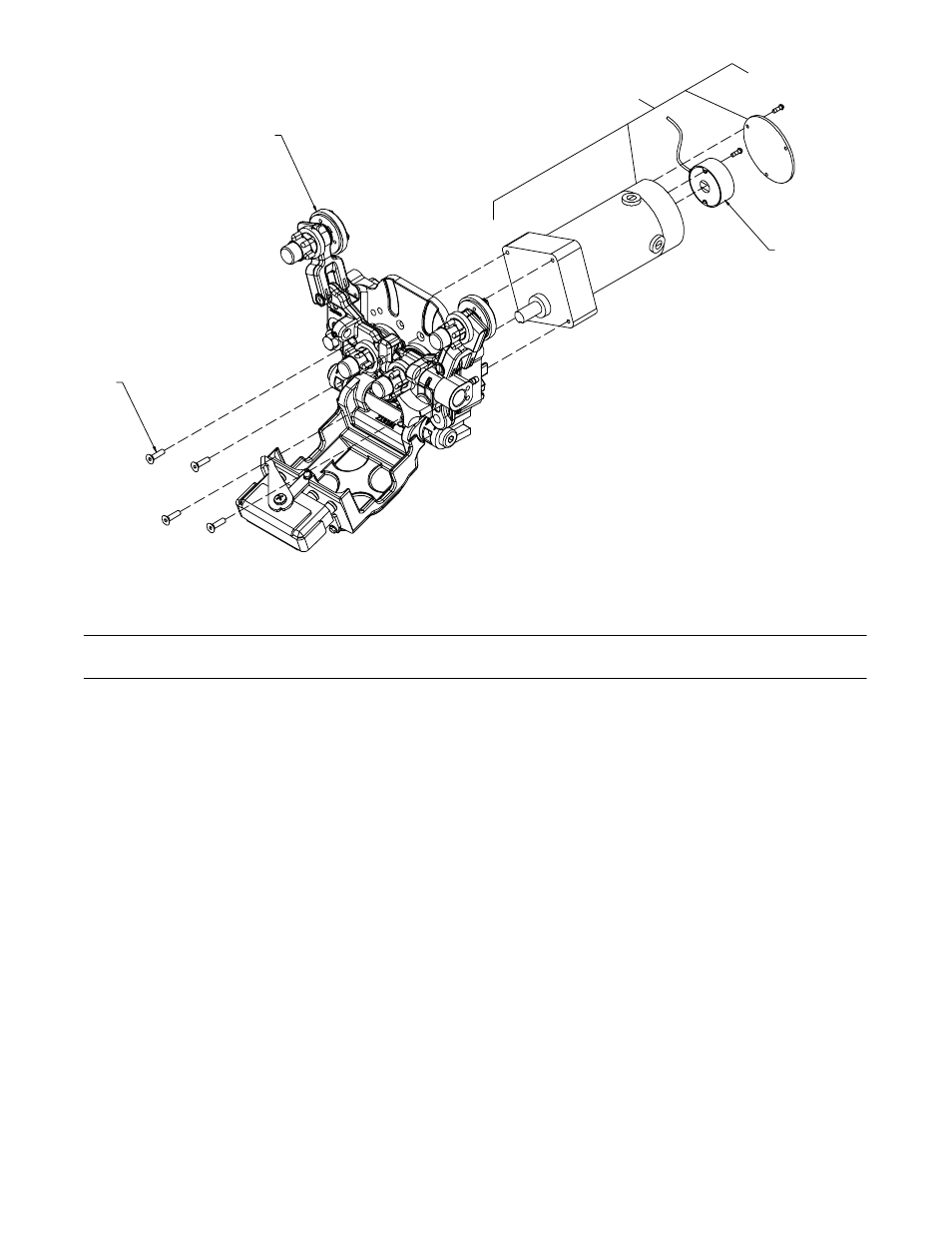

Figure 9-4. Drive Assembly, Wire
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 9-4. Drive Assembly, Wire (Fig 9-1 Item 4)
Quantity
1 220 012 SCREW, 250-28x.62 button soc-hd zinc 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Figure 9-3 DRIVE ASSEMBLY 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 M1 *227 024 MOTOR 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 {229550 ENCODER, quadrature 500PPR incremental 5V shaftless 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*Recommended Spare Parts.
{Have nearest Factory Authorized Service Agent replace encoder.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
