OM-228 956 Page 11

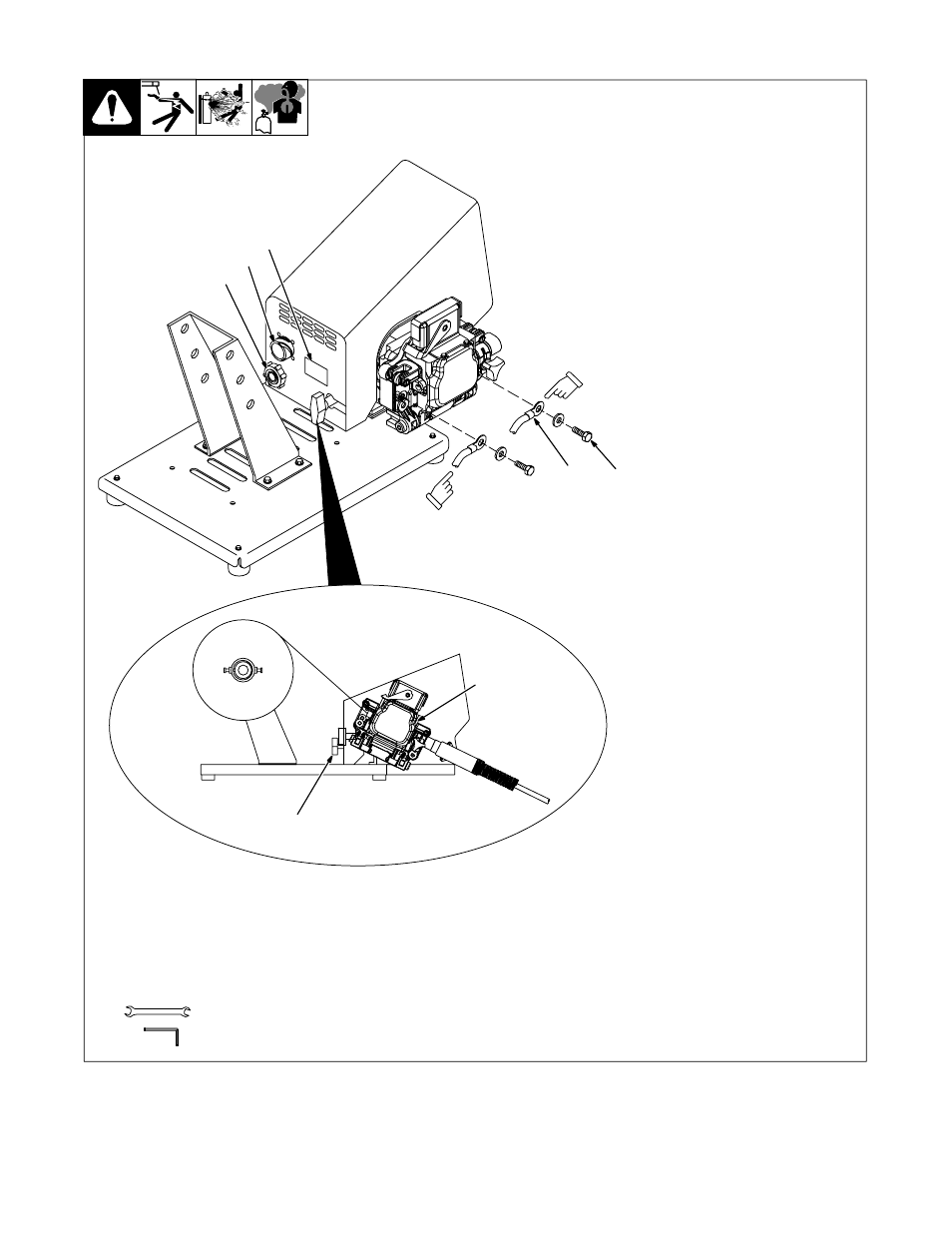

4-3. Rear Panel Connections And Rotating Drive Assembly
804 586-A
3
4
1 9-Pin Network Receptacle
2 Shielding Gas Valve Fitting
Requires fitting with 5/8-18 right-
hand threads. Connect customer-
supplied gas hose.
3
Weld Cable
4 Weld Cable Screw - Screw
Size (.375 - 16 x 1.50)
5 Drive Assembly
6 Drive Assembly Rotation
Knob
7 Rating Label Location
To rotate the drive assembly, loos-
en drive assembly rotation knob,
rotate drive assembly, and tighten
knob.
9/16, 5/8 in
Tools Needed:
3/16 in
5
6
2
1
7
0 to 350 Amps
weld connection
350 Amps and above
weld connection
