4-4. 9-Pin Network Receptacle Information
9
Pin Pin Information
A Capacitor C1 to ground
B Shield
G
F
C Volt sense
H
G
E
F
D Can low
I
H
D
E
E Can high
A
B
I
C
D
F +24 volts dc common
B
C
G + 24 volts dc
H Motor voltage −40 volts
I Motor voltage +40 volts

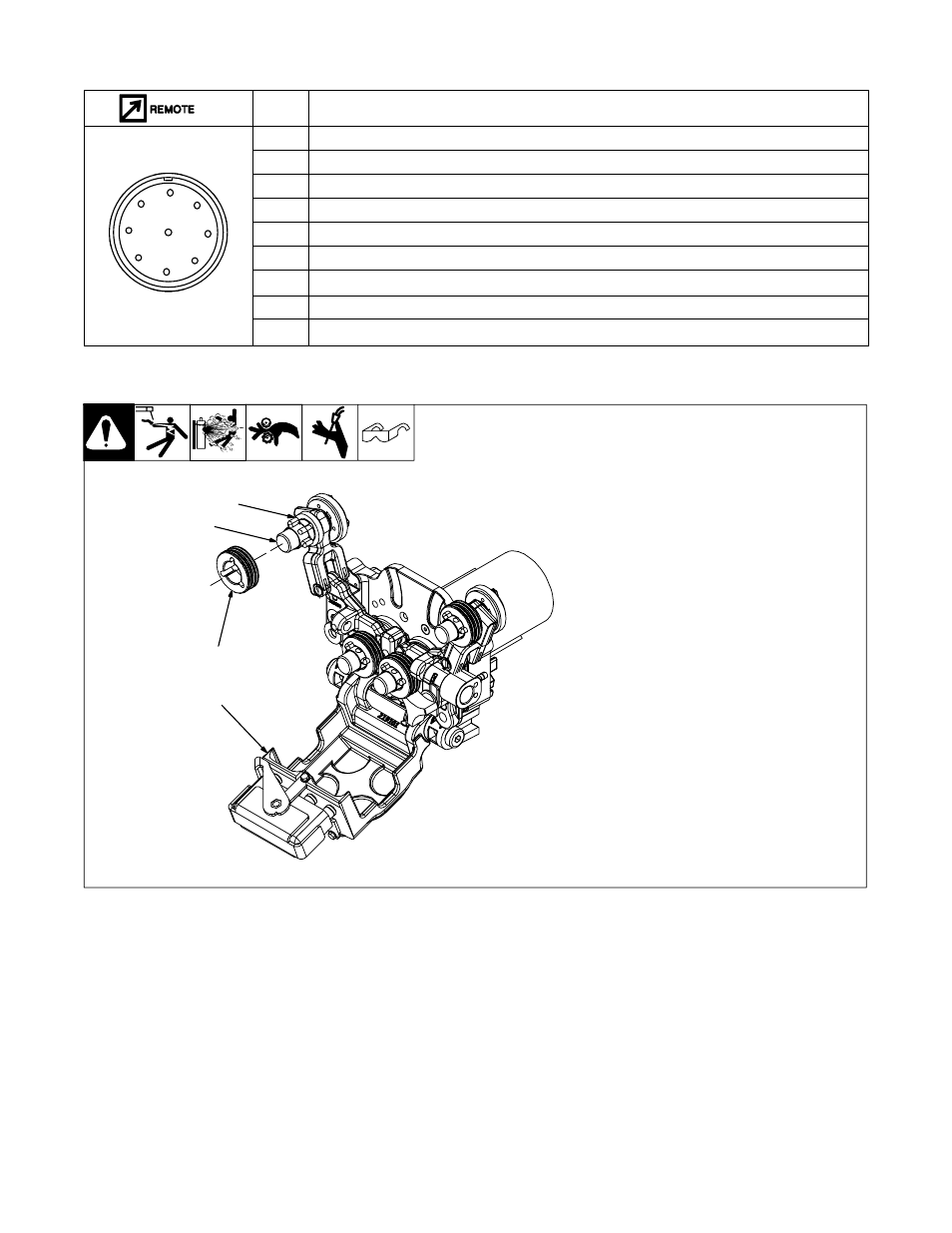

4-5. Installing Drive Rolls
804 187-A
1 Pressure Assembly Door
2 Drive Roll
3 Ejector Button
4 Drive Roll Carrier
Installation
Open pressure assembly door.
Align drive roll slots with three lobes
on drive roll carrier.
Insert drive roll onto carrier. Drive
roll will snap into place.
Removal
.
Remove PD wire guide before
removing lower drive rolls.
Lift up drive roll swing arm and
press ejector button in middle of
drive roll carrier.
.
If ejector button does not re-
turn to normal position (out),
install a drive roll and ejector
button will pop out.
1
2
4
3
