Status

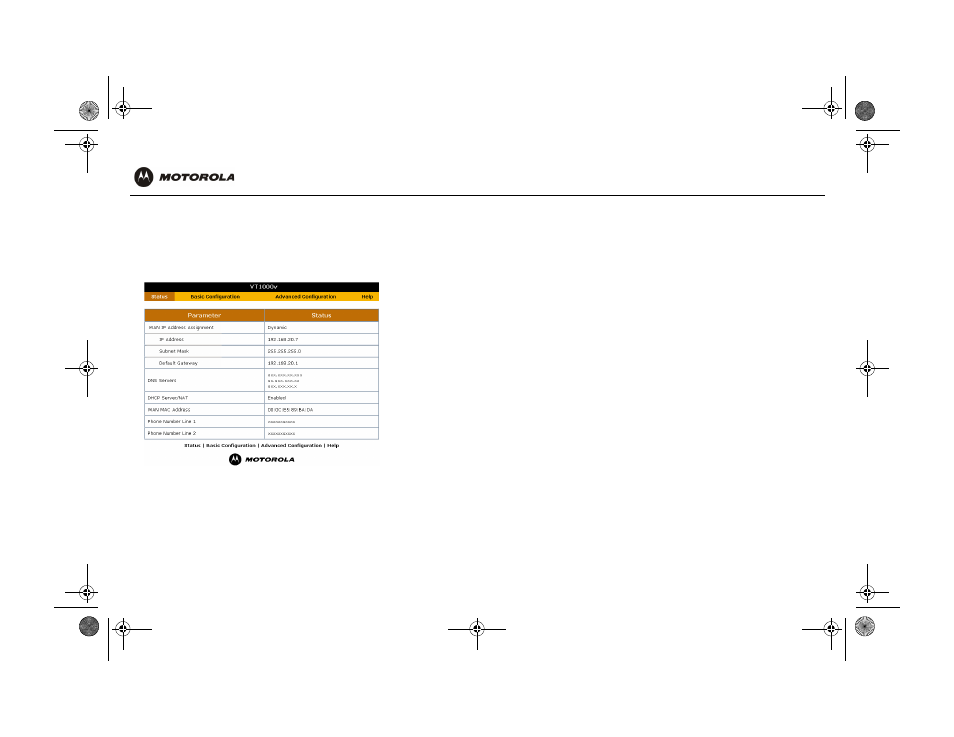

The Status window displays the Motorola voice terminal configuration.

Field

Description

WAN IP Address
Assignment

Displays the method chosen on the Basic Configuration page —
Dynamic, Static, or PPPoE.

IP Address
Subnet Mask
Default Gateway

These fields display the Motorola voice terminal IP address, subnet
mask, and default gateway IP address:
■ For a cable modem with no router where the cable provider

assigns IP addresses dynamically, these are obtained
dynamically from the cable provider.

■ For static assignment, these are defined on the Basic

Configuration page

DNS Servers

Displays the DNS servers assigned to your computer.

DHCP Server/NAT

Displays whether Enable DHCP/NAT on LAN Port is enabled on the
Advanced Configuration page.
