IV. THERMOCOUPLE INSTALLATION
1. Install the thermocouple sensing bulb into the hole in the
rear of the oven, as shown in Figure 2-6. Fasten the
thermocouple in place using the #10-32 x 3/8" screw
supplied in the Installation Kit.
2. Thread the thermocouple lead(s) through the grommet
and into the machinery compartment, as shown in Figure
2-6.
3. Remove the right-side access panel of the machinery
compartment.
4. Thread the thermocouple lead(s) through the side of the
machinery compartment as shown in Figure 2-7, and into
the electrical box (at the right-front of the machinery com-
partment).
5. Connect the thermocouple leads to the temperature con-
troller as shown in Figure 2-8.
V. CONVEYOR INSTALLATION
NOTE
The conveyor assembly MUST be inserted from the drive end
of the oven.
1. Lift the conveyor and position it in the oven as shown in
Figure 2-9.
2. Continue moving the conveyor into the oven until the lip on
the bottom edge of the frame butts firmly against the end
plug.
8=White=Positive
7=Red=Negative
R=No Connection
Ground=Shielded cable

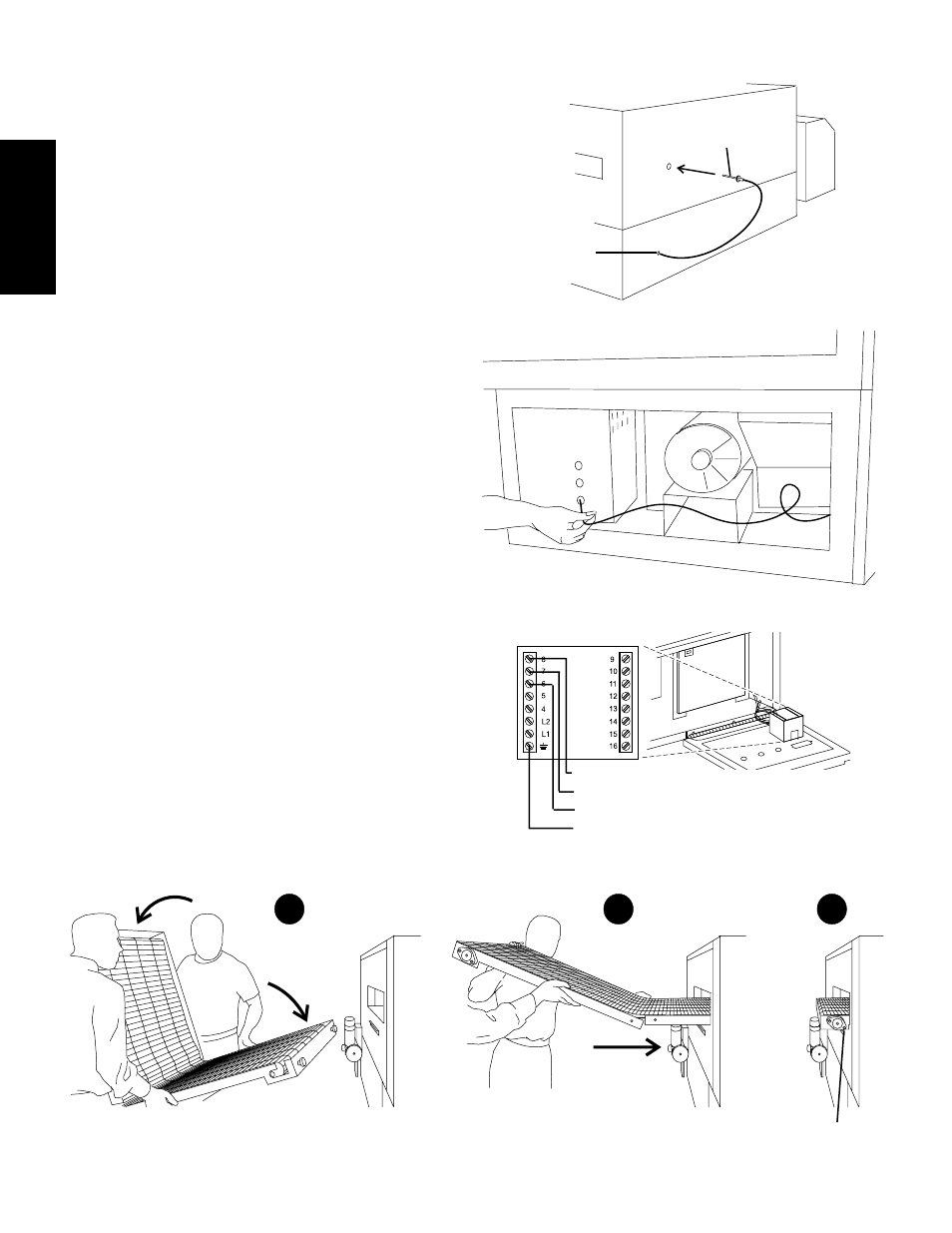

Figure 2-6 - Thermocouple Installation Location
Figure 2-7 - Placing the Thermocouple Leads
Figure 2-8 - Thermocouple Lead Connections
Grommet-
protected hole
SECTION 2 - INSTALLATION
Thermocouple
Figure 2-9 - Conveyor Installation
1 2 3
Lip on bottom
edge of frame fits
against end plug
Unfold
conveyor
Slide into drive
end of oven
