DS5 User Guide
Wireless Kit Assembly - DS5M
If your DS5M did not come with the wireless kit and you would like to install this module
yourself, simply follow these instructions:

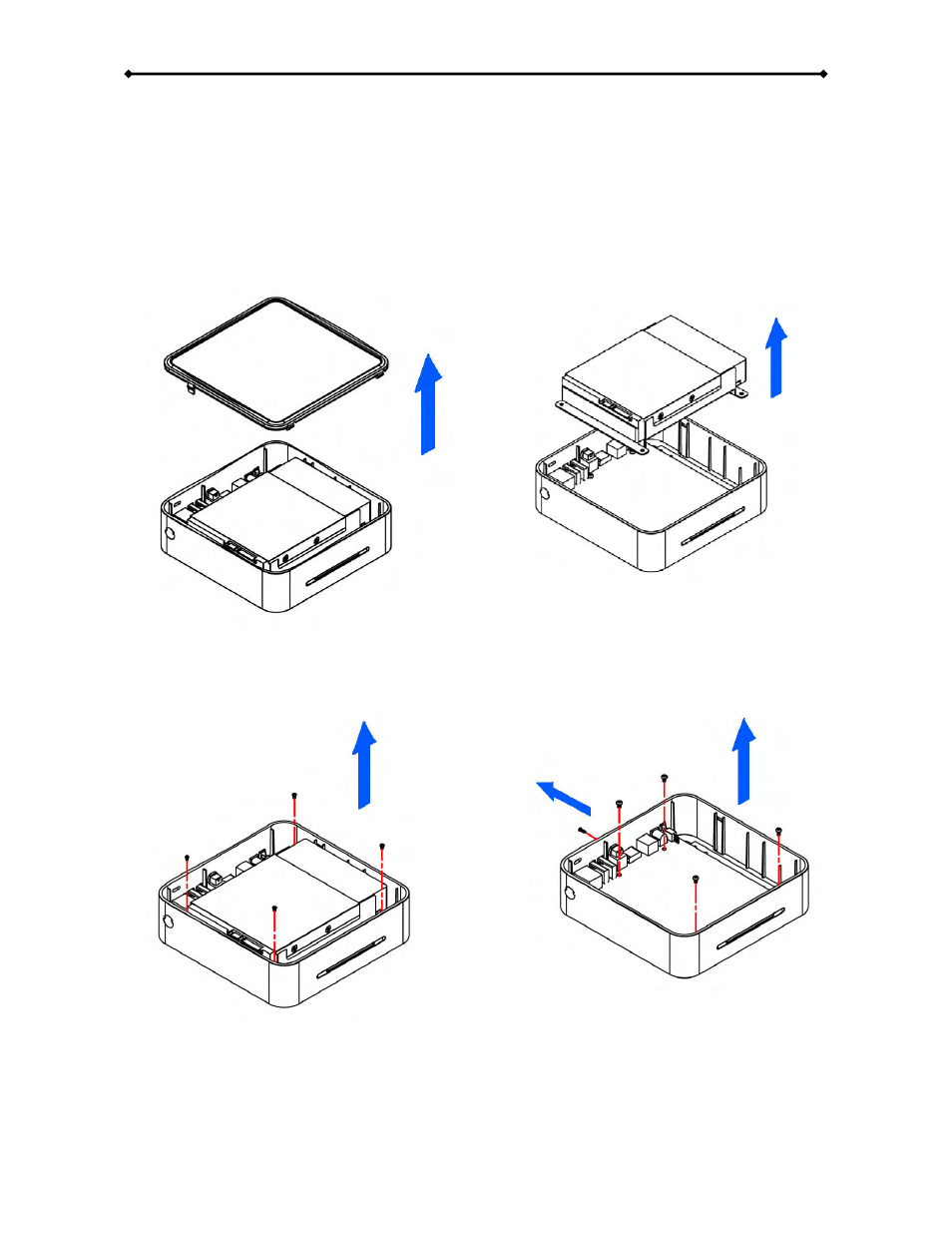

1. Lift the top cover off the body. Push it
upwards with a thin and small item
through the opening at the bottom.
2. Remove the screws which are holding
the aluminium frame in place.
3. Disconnect the cables, then lift the
frame and the hard drive out of the
plastic casing.
4. Remove the screws which are used to
mount the bridge board to the heat
sink and lift the board out of the casing.
Page 15 / Chapter 2 - Hardware Installation
