En-8

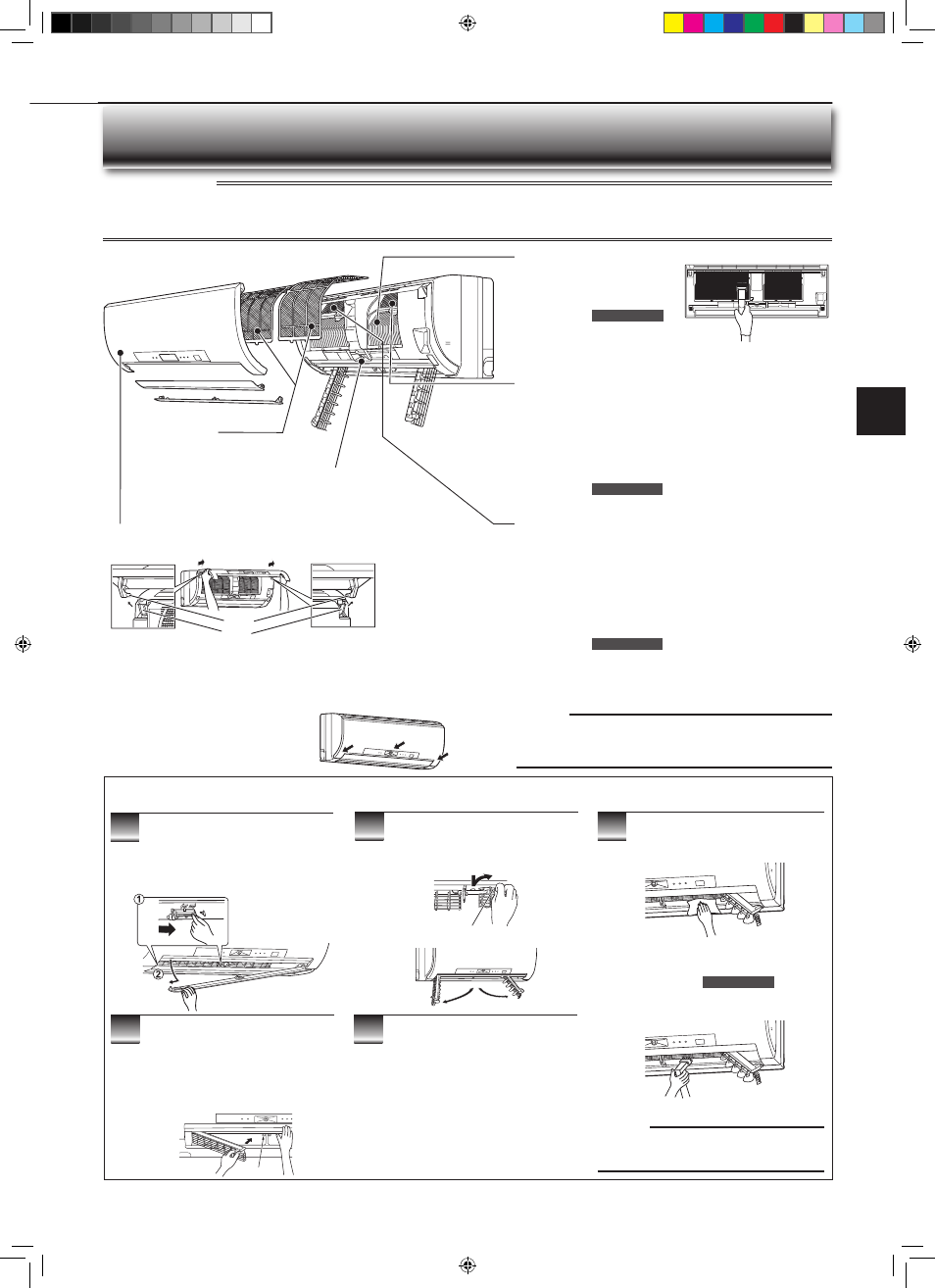

Heat exchanger
• Wear gloves to protect your hands.
• Use the QUICK CLEAN KIT
(option).
Parts Number MAC-093SS-E
• Refer to the instructions described in
the QUICK CLEAN KIT for details.
Front panel
Instructions:
1. Lift the front panel until a “click” is heard.
2. Hold the hinges and pull to remove as shown in the above illustration.
• Wipe with a soft dry cloth or wash it with water.
• Do not soak it in water for more than two hours.
• Dry it well in shade before installing it.
3. Install the panel by following the removal
procedure in reverse. Close the front panel
securely and press the positions indicated by
the arrows.
Hole
Hinge
Hold the tab
Plasma anti-allergy enzyme fi lter
Every 3 months:
• Remove dirt by a vacuum cleaner.
When dirt cannot be removed by vacuum cleaning:
• Soak the fi lter together with its frame in lukewarm water and wash it.
• After washing, dry it well in shade and put it back to its original position.
Every year:
• Replace it with a new air cleaning fi lter for best performance.
• Parts Number MAC-417FT-E
Plasma deodorizing fi lter
Every 3 months:
• Remove dirt by a vacuum cleaner, or soak the fi lter in lukewarm water
(30 to 40°C) for about 15 minutes. Rinse well.
• After washing, dry it well in shade and put it back to its original posi-
tion.
• Deodorizing feature recovers by cleaning the fi lter.
When dirt or smell cannot be removed by cleaning:
• Replace it with a new air cleaning fi lter.
• Parts Number MAC-307FT-E
Air outlet and Fan (before cleaning, make sure that the fan is stopped)
Air fi lter
• Clean every 2 weeks
• Remove dirt by a vacuum cleaner,
or wash with water.
• Dry it well in shade before install-
ing it.
C
LEANING
1
Turn the horizontal vanes downward.
Then, remove the upper vane as
shown in ➀ and ➁.
• Repeat ➀ and ➁ for the lower vane.
2
Swing out the two vertical vanes
one by one.
4
Put the vertical vanes back to
their original positions correctly
one by one, into their respective
guide.
• Push the vanes until they click into place.
3
Clean the air outlet and fan.
• Wipe with a soft dry cloth.
Clean the fan.
• Use the QUICK CLEAN KIT (option).
Parts Number MAC-093SS-E
• Refer to the instructions described in the
QUICK CLEAN KIT for details.
5
Install the horizontal vane by
following the removal procedure
in reverse.
• If the horizontal vane is not installed cor-
rectly, all LED lamps blink when power is
turned on.
Unlock
• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
• Use only diluted mild detergents.
• Do not expose parts to direct sunlight, heat, or fl ames to dry.
• Do not use water hotter than 50°C.
Guide
Note:
Do not apply excessive force to the fan or fan
guard.
Note:
• Clean the fi lters regularly for best performance and to reduce power
consumption.
• Do not touch the i-see sensor.
i-see sensor
Do not touch the i-see
sensor.
