En-3
● OPERATING INSTRUCTIONS ●
• Make sure the polarity of the batteries is correct.
• Do not use manganese batteries. The remote controller could malfunction.
• Do not use rechargeable batteries.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with
expired shelf lives last shorter.
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
• Press RESET and CLOCK gently using a thin
stick.
If the RESET button is not pressed, the remote
controller may not operate correctly.

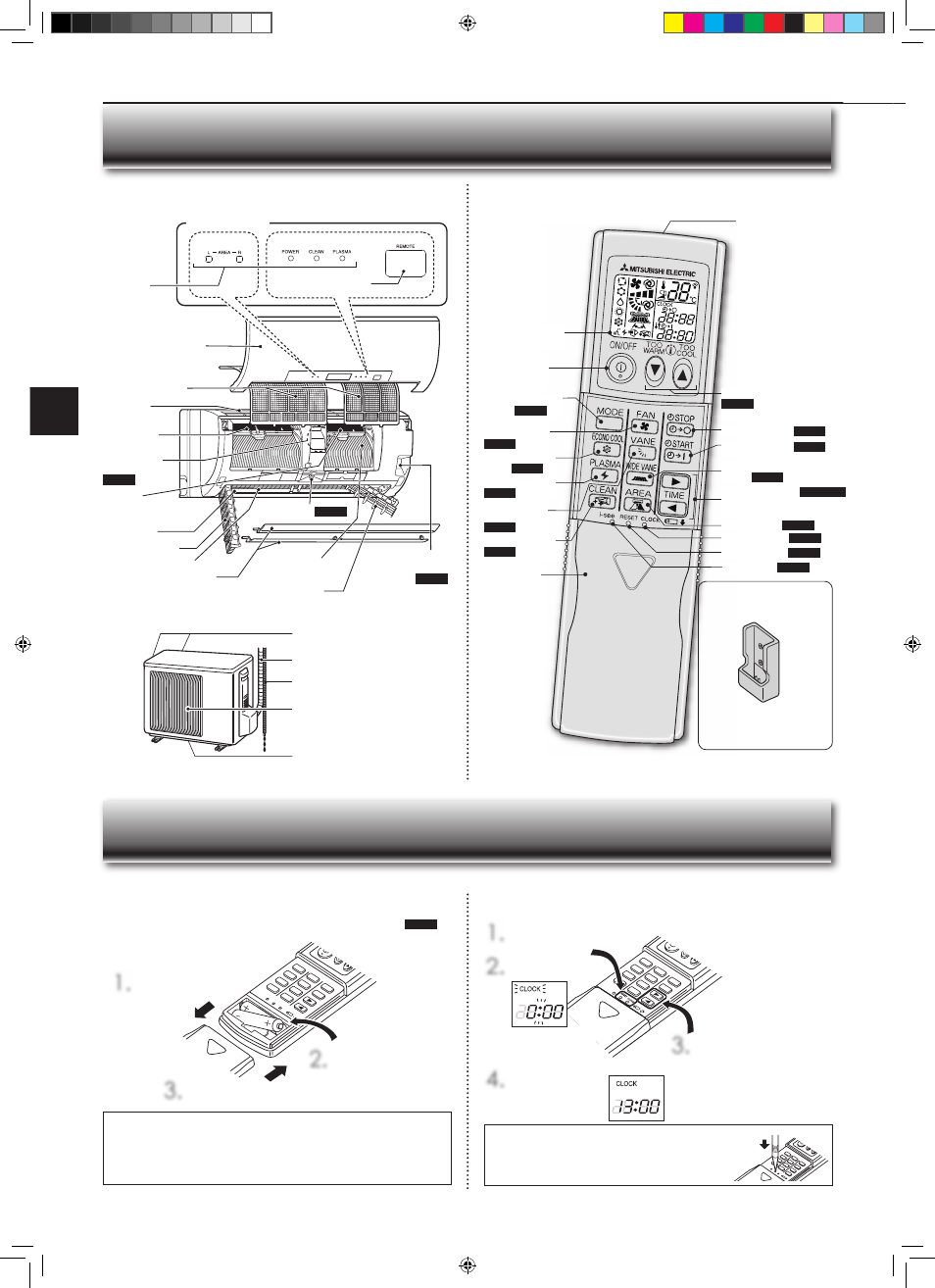

Display section
Operation
indicator
lamp
Remote control
receiving section
Emergency
operation
switch Page 5
Air inlet (back and side)
Piping
Drainage hose
Air outlet
Drain outlet
Remote controller
holder
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard
from the indoor unit when
the signal is received.
Operation display
section
ON/OFF
(operate/stop)
button
Temperature buttons
Page 5
Operation select
button Page 5
ECONO COOL
button Page 7
FAN speed
control button
Page 6
Off-timer button Page 7
On-timer button Page 7
VANE
control button
Page 6
TIME set buttons Pages 3, 7
Increase time
Decrease time
CLOCK button Page 3
RESET button Page 3
Lid
Slide down
to open
• Install the remote control-
ler holder to a place where
the signal can be received
by the indoor unit.
Use the remote controller provided with the unit only.
Do not use other remote controllers.
Horizontal vane
Vertical vane
Air outlet
Fan
Air fi lter
Air inlet
Heat
exchanger
Front panel
Plasma
anti-allergy
enzyme fi lter
Fan guard
Outdoor unit
Installing the remote controller batteries Setting current time
N
AME OF EACH PART
P
REPARATION BEFORE OPERATION
1.
Remove the front lid
2.
Insert AAA
alkaline batteries
3.
Install the front lid
1.
Press RESET
2.
Press CLOCK
4.
Press CLOCK again
3.
Press the TIME buttons to set the
time.
Each press increases/decreases
the time by 1 minute (10 minutes
when pressed longer)
Indoor unit Remote controller
Appearance of the outdoor unit may differ from some models.
Plasma
deodorizing
fi lter
CLEAN button
Page 7
WIDE VANE
button Page 6
AREA button Page 4
PLASMA button
Page 7
i-see button Page 4
i-see sensor Page 4
Plasma elec-
trode unit
Page 7
Be sure to set the installation position before installing the batteries. Page 4
