Control board pc1 testing information, Section 10-5), Section 10-5 – Miller Electric BLUE STAR 6000 TM-499C User Manual
Page 44: 5. control board pc1 testing information
TM-499 Page 40

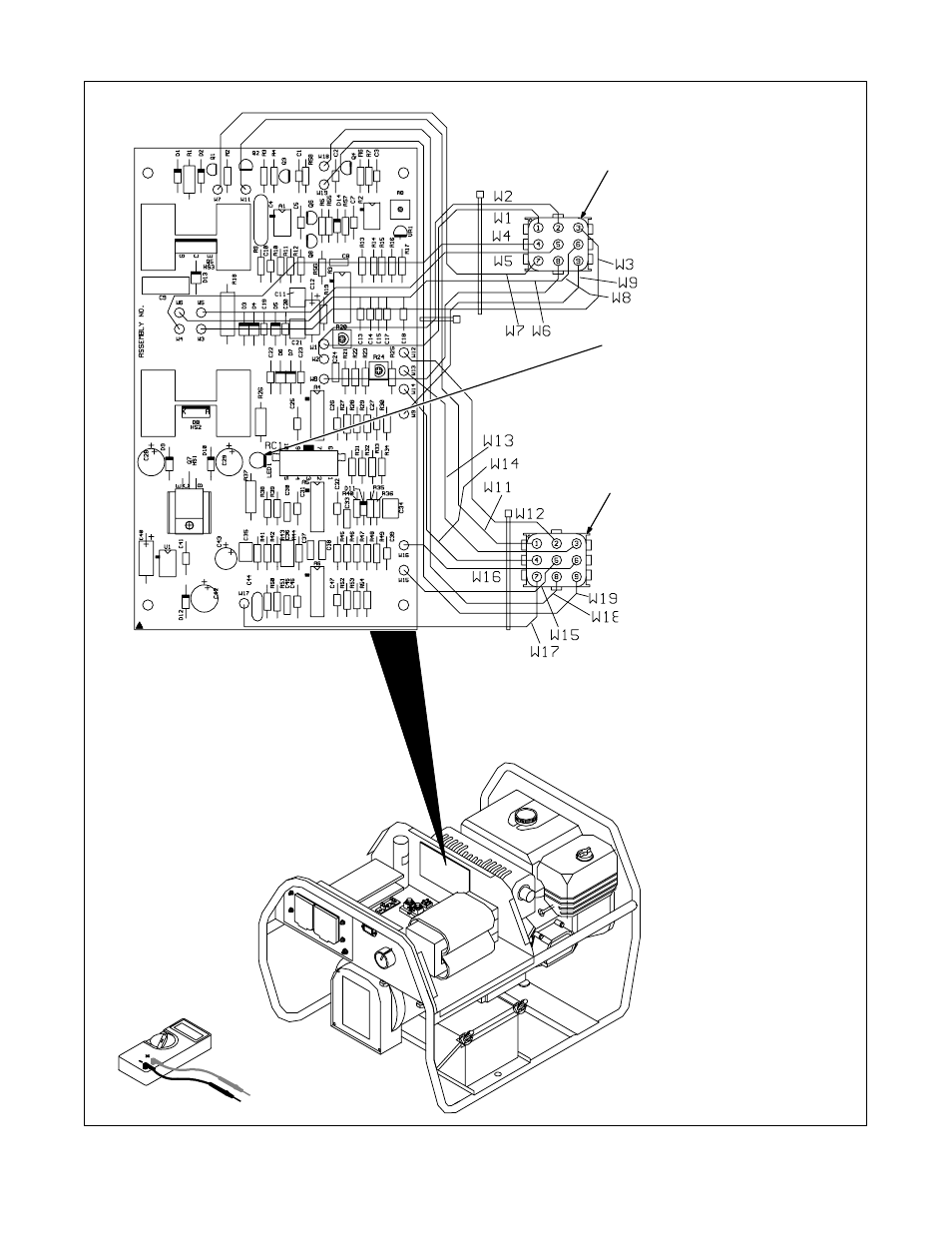

10-5. Control Board PC1 Testing Information
802 524 / 198 221-A
Be sure plugs are secure before
testing. See Section 10-6 for
specific values during testing.
1
Receptacle RC5
2
Receptacle RC4
3
LED1
LED1 lights when board is
energized.
Test Equipment Needed:
2
1
3
