8
note: diaGraMs & iLLustrations are not to scaLe.

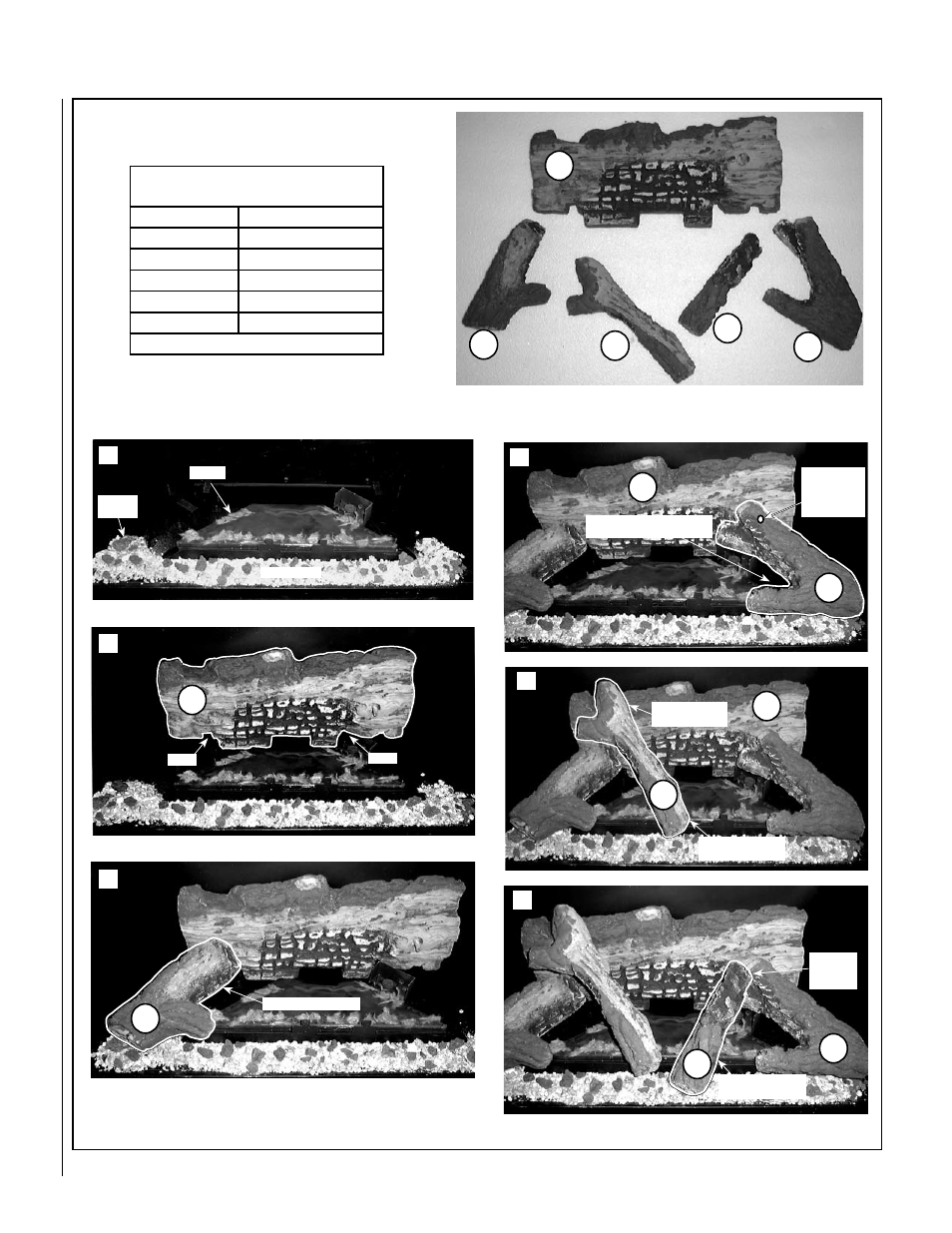

Figure 8
ModeL LMdV-3328 & LMdV-3530
Log placement instructions
d
c e
a
B
a
e
B
c
d
Vermiculite
Volcanic
Stone
Embers
DO NOT PLACE EMBERS OVER GAS SLOTS
1
2
3
4
5
6
The 2 notches on log bottom rest on locating brackets
Notch Notch
Slot fits over bracket.
Hole on bot-
tom of log (E)
fits over pin
on log (A).
a
V-Shape area of log (E) should
align to sides of burner ports
Log (C) fits into
indent in Log (A)
a
Slot on bottom of Log
(C) fits over bracket
Slot on bottom of Log
(D) fits over bracket
Log (D) fits
into indent
on Log (E)
e
LoG set
catalog number H3366
* item description
a Log, rear
B Log, Left
c Log, Left center
d Log, right center
e Log, right
* Item "letters" above correspond to photos
install the embers, Vermiculite, Volcanic stone and Logs in the order
shown here (1 through 6) and per the instructions on Page 7.
