6
note: diaGraMs & iLLustrations are not to scaLe.
WarninG
Handle this glass with extreme
care! tempered glass is suscep-
tible to damage – do not scratch
or handle roughly while rein-
stalling the glass door frame.
Front Glass enclosure panel, removal
and installation
WarninG
do not operate appliance with the
glass front removed, cracked or
broken. replacement of the glass
should be done by a licensed or
qualified service technician.
WarninG
do not attempt to substitute the
materials used on this door, or
replace cracked or broken glass
with any materials other than
those provided by the appliance
manufacturer.
WarninG
the glass door of this appli-
ance must only be replaced as a
complete unit as provided by the
manufacturer. do not attempt to
replace broken, cracked or chipped
glass separately.
WarninG
do not attempt to touch the front
enclosure glass with your hands
while the fireplace is in use.
These are direct-vent appliances. They are
designed to operate only when the front glass
enclosure panel is installed. Generally the front
glass enclosure panel should not be removed
except to gain access to the components within
the firebox, and the appliance may only be op-
erated without the front glass enclosure panel
in place for very brief periods of time during
appliance checkout and adjustment. Note: The
flame appearance will be diminished while the
front glass enclosure panel is removed.
During this appliance checkout and adjust-
ment period, a potential safety hazard exists
- eXercise eXtreMe caution to prevent
the occurrence of any burn injuries from the
exposed flames or hot surfaces. Also note, that
while the front glass enclosure panel (or any of
the panels) is removed, the flame appearance
will appear to be smaller than normal.

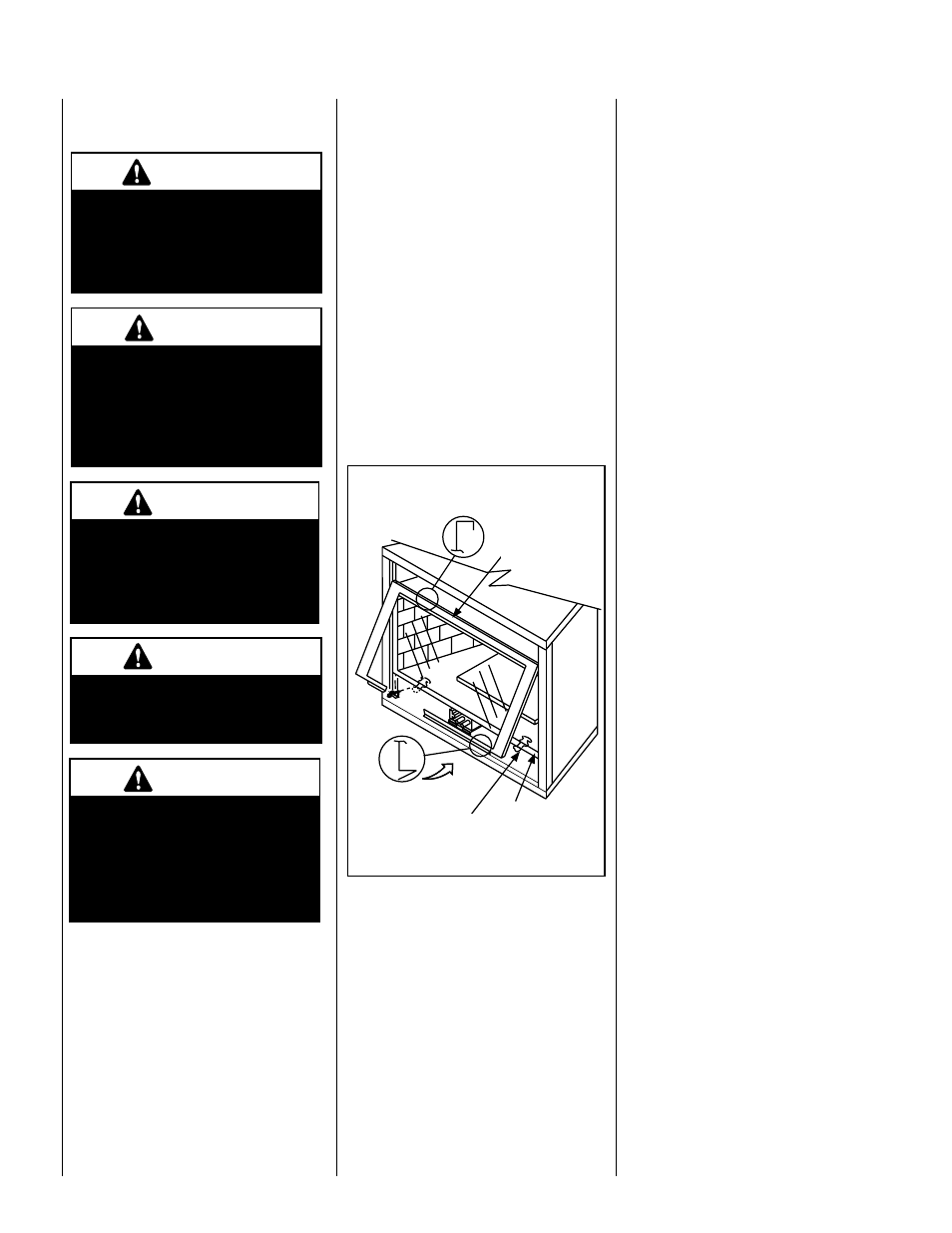

Figure 6 - instaLLinG GLass door
top Flange on
Glass door
Bottom Vee-flange
Glass door
Glass door Latch
Glass door
Firebox Floor
removing Glass enclosure panels
(see Figure 6)
1. Remove the top louver assembly by pulling
it up and out.
2. Remove the control compartment access
door (see removal instructions on Page 3
- Removing Control Compartment Door).
3. Locate the two (2) latches at the top of the
control compartment. To disengage the two
latches from the bottom vee-flange of the
glass enclosure panel, reach for the handles
located towards the back of the latches and
pull the handles down toward the front of
the appliance.
4. Swing the bottom of the door out and raise
it slightly to lift the top flange of the door
frame away from the appliance.
installing Glass enclosure panels
(see Figure 6)
1. Visually inspect the gasket on the backside
of the glass panel. The gasket surface must
be clean, free of irregularities and seated
firmly.
2. Position the glass enclosure panel in front of
the firebox opening at a 45 degree angle and
engage the top flange over the lip at the top
of the firebox opening. See Figure 6.
3. Swing the glass enclosure panel down and
back. Ensure the gasket seats evenly as the
panel draws shut. Engage the Vee-flange at
the bottom of the panel with the latches and
close the latches to secure the panel.
4. Reinstall the control compartment door
see installation instructions on Page 3,
Reinstalling Control Compartment Door).
