7

note: diaGraMs & iLLustrations are not to scaLe.

WarninG

the size and position of the log

set was engineered to give the

appliance a safe, reliable and

attractive flame pattern. any

attempt to use a different log

set in the fireplace will void

the warranty and will result in

incomplete combustion, soot-

ing, and poor flame quality.

reFerence

Firebox accessories/parts

cat. no.

Model no.

description

88L53

FGe

Bag of Glowing embers

(1 oz. rockwool)

H3696

Vermiculite, Bag (2 liters)

80L42

FdVs

Bag of decorative

Volcanic stone

Table 8

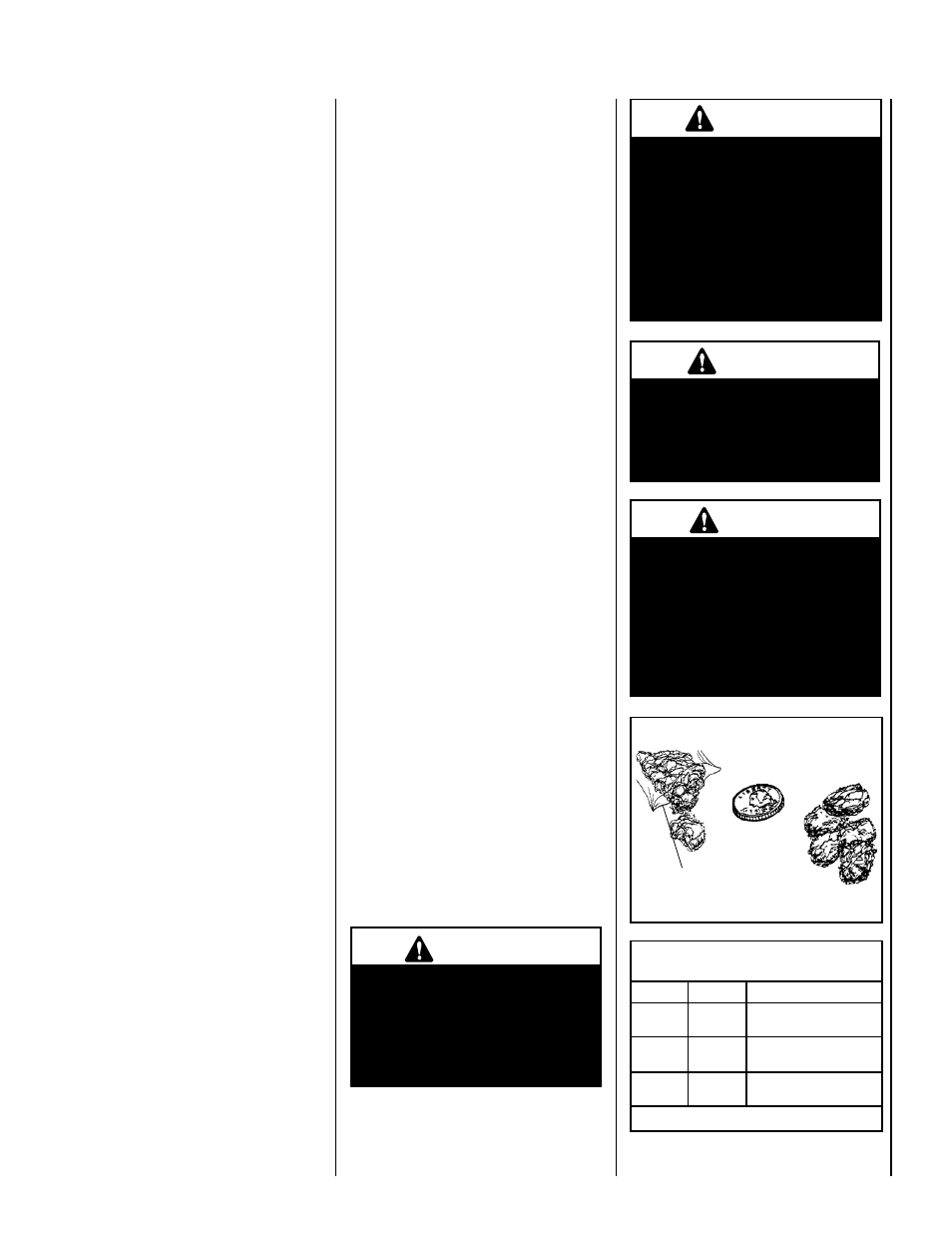

Glowing Embers

Bag of Glowing

Embers (rockwool)

Separate into Quarter

Size (separate) Pieces

instaLL VerMicuLite, VoLcanic

stone, GLoWinG eMBers and LoGs

1. Remove the front glass enclosure panel

(see Removing Glass Enclosure Panels on

this page).

2. Carefully remove the old logs, embers

volcanic stone and vermiculite from the

firebox. Handle logs carefully to prevent

breakage.

3. Install Vermiculite - Place some vermiculite

on the firebox floor around the burner (the

entire bag of vermiculite will NOT be used).

See

Figures 8 & 9. do not pLace anY

VerMicuLite on tHe Burner. Mound

up a portion of the vermiculite in front of the

burner.

4. install decorative volcanic stone - Sprinkle

the decorative volcanic stone (dark colored)

on top of the vermiculite (light colored) in a

pleasing pattern (see

Figures 8 & 9).

5. Placement of Glowing Embers -

Separate the Embers (rockwool) into pieces

about the size of a quarter (see

Figure 7).

Keep the pieces fluffed up, not matted.

Distribute these pieces over the surface of

the burner, as shown in

Figures 8 & 9. Do

not use more than is necessary. Ensure that

the main burner slots remain uncovered by

the ember material.

Note: This appliance is provided with enough

Glowing Embers for several applications, do

not use all that is in a new bag at one time. For

best glowing effect, replace the ember material

annually.

6. placement of Logs and twigs -

All logs that have locating notches or slots to

help ensure that they are properly positioned.

All top logs that rest on lower logs, do so

over notches, indents or pins. Proper twig

placement is critical to prevent sooting. Twigs

should be placed in the gaps between the flame

peaks and should be positioned so they do not

impinge the flames.

LMDV-3328 & LMDV-3530 - Install as Follows

Carefully position the ceramic fiber logs and twigs

over the burner as shown in Figure 8. Logs

should be placed in the order shown and per the

following instructions.

WarninG

do not attempt to install the logs

until the appliance installation

has been completed, the gas line

connected and tested for leaks

and the initial burner operation

has been checked out.

Figure 7

WarninG

this appliance is not designed

to burn wood. any attempt to

do so could cause irreparable

damage to appliance and prove

hazardous to your safety.

WarninG

if logs are not installed according

to the log installation instruc-

tions, flame impingement and

improper combustion could

occur and result in soot and/or

excessive production of carbon

monoxide (co), a colorless,

odorless, toxic gas.

1. Place the rear log (A) as shown. Position the

2 notches on the bottom of the log over the

2 corresponding locating brackets against

the back wall of firebox.

2. Place the left log (B) as shown. The notch

on the bottom of the log should fit over the

corresponding locating bracket.

3. Place the right log (E) as shown. The hole

on the back of the log should fit over the

corresponding pin on the rear log (A). Make

sure that the log is positioned so it aligns

to the sides of the gas ports on the corner

of the burner.

4. Place the left center log (C) as shown.

The forked end of the log fits into the cor-

responding notch on rear log (A). The slot

on the other end (bottom) of log fits over

the corresponding locating bracket on the

sub-floor.

5. Place the right center log (D) as shown. One

end of the log fits into the corresponding

indent on the right log (E). The slot on

the other end (bottom) of log fits over the

corresponding locating bracket on the sub-

floor.

LMDV-4035 - Install as Follows

Carefully position the ceramic fiber logs and twigs

over the burner as shown in Figure 9. Logs

should be placed in the order shown and per the

following instructions.

1. Position the center log (C) onto the 2 cor-

responding location pins on the burner.

2. Place the rear log (A) as shown. Position the

2 notches on the bottom of the log over the

2 corresponding locating brackets against

the back wall of firebox.

3. Place the left log (B) as shown. The notch

on the bottom of the log should fit over the

corresponding locating bracket.

4. Place the right log (E) as shown. The notch

on the bottom of the log should fit over the

corresponding locating bracket. Make sure

that the log is positioned so it aligns to the

sides of the gas ports on the corner of the

burner.

5. Place the center front log (D) as shown.

The slot in the bottom of the log fits over

the corresponding location bracket on the

sub-floor.
