note: diaGraMs & iLLustrations are not to scaLe.

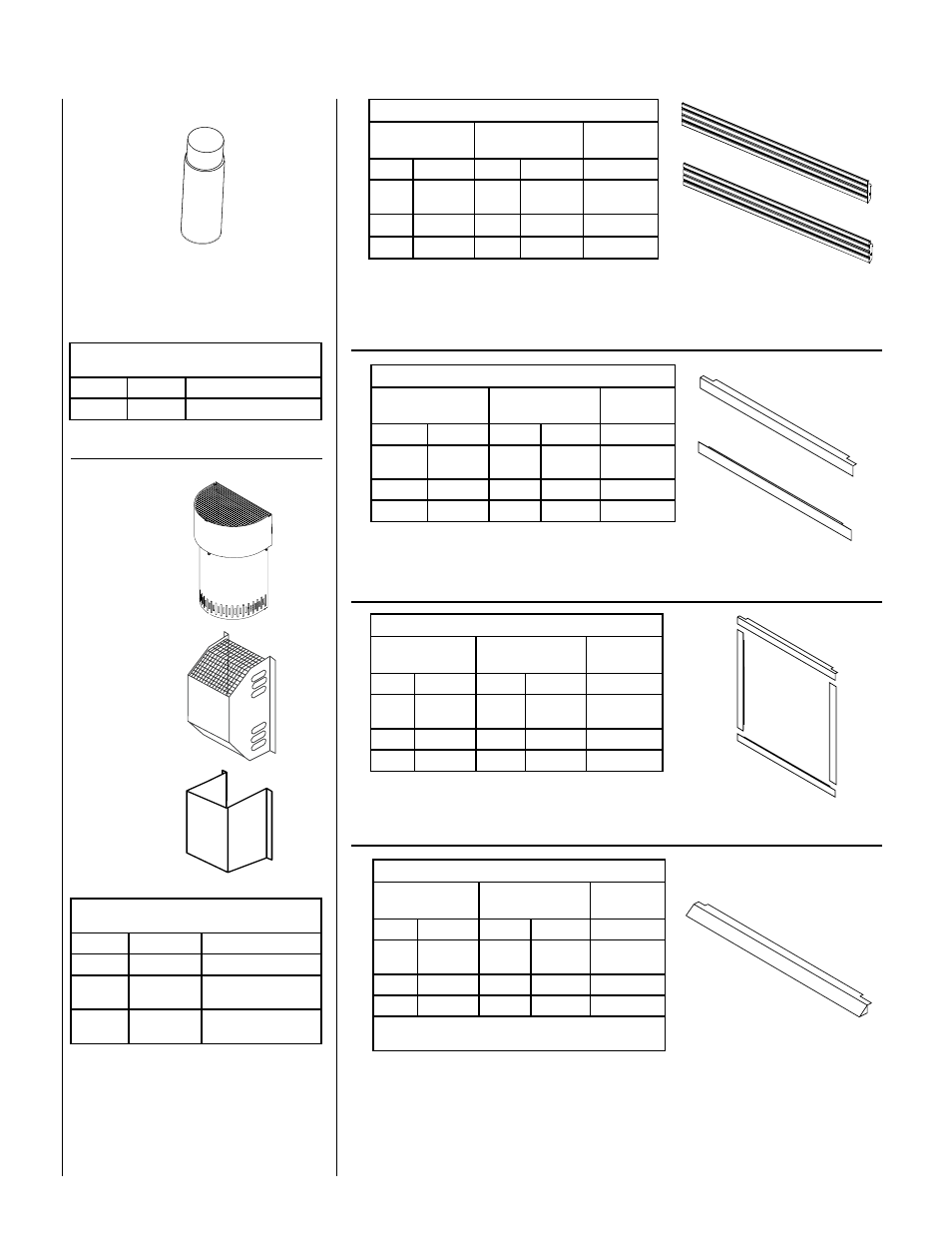

accessorY coMponents
* assembled 8-piece Louver Kits
polished Brass Brushed stainless Models
Where used
cat. # Model cat. # Model
H1522 LK-400B H1523 LK-400Bs LMdVt-3328
LMdVr-3328
H1524 LK-500B H1525 LK-500Bs LMdV-3530
H1526 LK-600B H1527 LK-600Bs LMdV-4035
polished Brass & Brushed stainless 2-piece door Frame Kits
These kits are designed to attach directly to the front face of the appliance at the glass enclosure panel's top
and bottom edges.
(ref. Form # 750,098M)
2- piece door Frame Kits
polished Brass Brushed stainless
Models
Where used
cat. # Model cat. # Model
98L18 2dFK33pB 98L19 2dFK33Bs
LMdVt-3328
LMdVr-3328
26M88 2dFK35pB 26M91 2dFK35Bs LMdV-4035
26M89 2dFK40pB 26M92 2dFK40Bs LMdV-4035
polished Brass & Brushed stainless Louvers Kits
These kits include a top 4-louver assembly and a bottom 4-louver assembly. They provide a touch of elegance.
These kits can be retrofitted to previously installed appliances.
(ref. Form # 750,166M)
polished Brass & Brushed stainless Hood Kits
Attractive hoods are available in two styles. These hoods are designed to be fitted to the glass viewing sides
of the appliance. In addition to providing an aesthetically pleasing appearance to your appliance installation,
the hood reduces heat effects to decorative mantles and finish materials located above the fireplace opening.
The hood kit replaces the standard hood that comes with these appliances and snaps into place. These kits
can be retrofitted to previously installed appliances.
(ref. Form #504,142M)
eyebrow Hood Kits
polished Brass Brushed stainless Models
Where used
cat. # Model cat. # Model
98L10 eB33pB 98L11 eB33Bs
LMdVt-3328
LMdVr-3328
96K67 eB35pB 88L49 eB35Bs LMdV-4035
96K68 eB40pB 88L50 eB40Bs LMdV-4035
* these hood kits replace the standard hood that comes with
these fireplaces.
door Frame Kits
A decorative door frame kit is available for use with these appliances. It is designed to attach directly to the front face
of the appliance at the four edges of the glass enclosure panel resulting in the appearance of a picture frame.
(ref. Form # 750,098M)
4 piece door trim Kits
polished Brass Brushed stainless Models
Where used
cat. # Model cat. # Model
98L22 4dFK33pB 98L23 4dFK33Bs
LMdVt-3328
LMdVr-3328
26M82 4dFK35pB 26M85 4dFK35Bs LMdV-3530
26M83 4dFK40pB 26M86 4dFK40Bs LMdV-4035
* Lennox Nameplate Logo, 12L15, is sold separately.
touch-up paint Kit
Repair of minor scratches and discoloration of the
appliance charcoal painted surfaces may be accom-
plished with the touch-up paint kit.
touch-up paint Kits
(all models)
cat. no. Model no. description
90L74 tpK-c touch-up paint (charcoal)
(TPK-C ref. Form # 504,216M)
PA I N T
Ref. 750,109M Ref. 750,055M
termination Guard Kits
(all models)
cat. no. Model no. description
H5820 4.5HtsK termination shroud
87L02 sV4.5HGs termination Guard,
deluxe
17M52 sV4.5HGs-1 termination Guard,
square
Square Termination
Guard
Deluxe Termination
Guard
termination Guard Kits
The vent termination guards may be used to cover
the vent termination on the exterior of the home
to minimize exposure to the hot surface of the
termination.
Termination Shroud
