any one of these criteria are not met the link may still be operational but may have issues time to
time.
Note: If a Canopy module is placed into Alignment Mode it will automatically drop into
Operational Mode after 15 minutes.
BER Display
Bit Error Rate (BER) Display is utilized by the operator to measure the amount bit errors present in
a link. BER Display will only work if the access point module is configured to send the BER stream.
**IMPORTANT** If one access point module in a cluster is set to send a BER stream then all
other access point modules in that cluster must be configured in the same fashion.

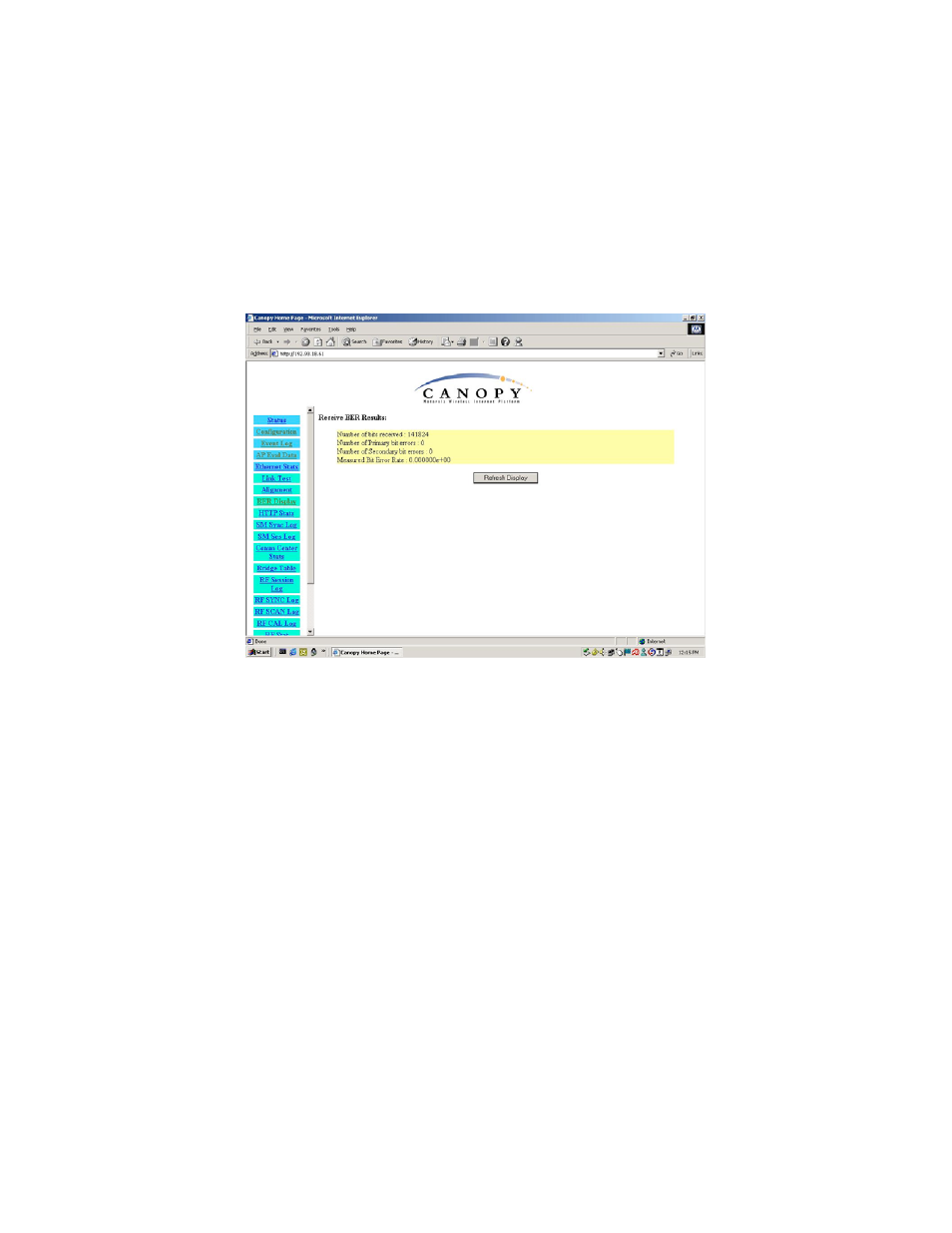

The field, Measured Bit Error Rate, will display a value that corresponds to the BER at the moment
of web browser refresh. An acceptable link will have a BER that is less than 10
-4 . If the BER is
greater than 10 -4 then the operator needs to evaluate the subscriber and/or access point module
installation for potential issues. To refresh the screen, click the Refresh Display button as
appropriate or configure the web page auto-refresh option.
