Component Disassembly

Section 2

2-12

Gearmotor Shaft Seal Replacement (continued)

8

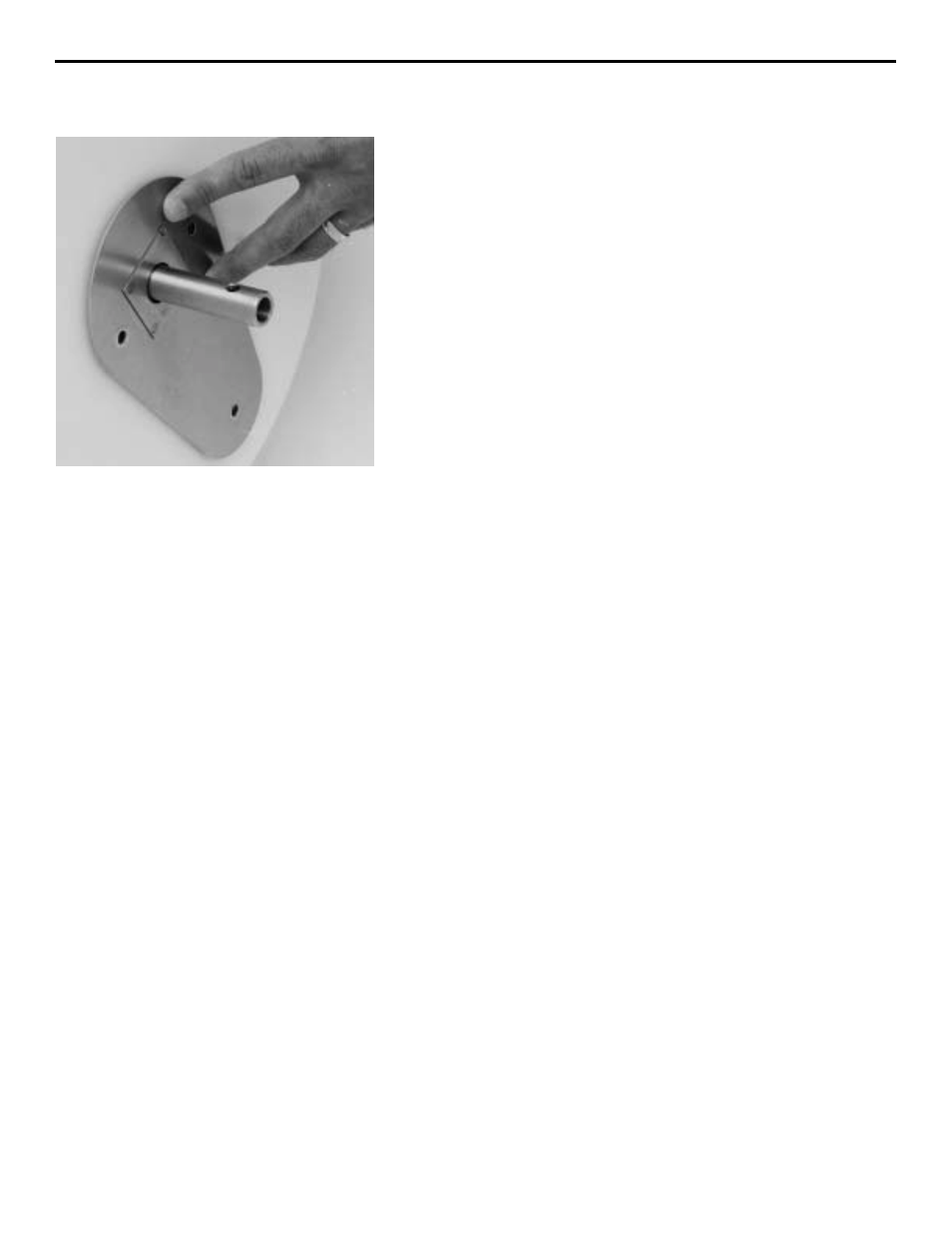

Press the bin insulator plate back into place.

9

Replace the three bolts. Using a 7/16” nut
driver, tighten a quarter turn past tight.

10

Replace the paddle wheel, agitator and

paddle wheel pin in the dispenser.

11

Refill the dispenser or restart the ice

machine.

12

Restore power to the dispenser and ice

machine.
