Section 2
Component Disassembly
2-5
Disassembling the Rocking Chute/Door (continued)
8

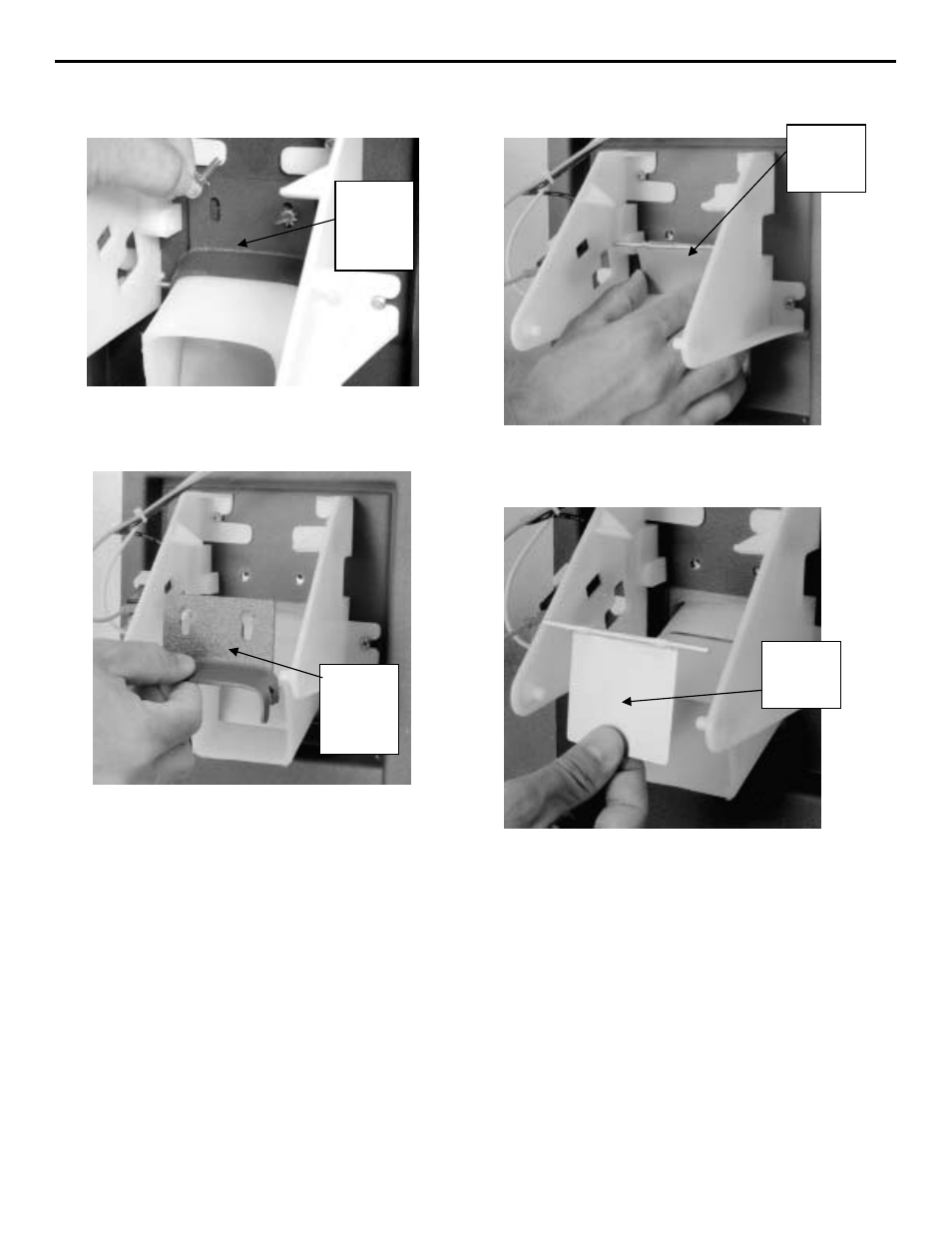

Remove the two thumb screws from the plastic
paddle wheel guard retainer.
9
Remove the paddle wheel guard retainer
10
Pull the stainless steel paddle wheel guard
from the slot that is cut into the chute…
11
…and remove the paddle wheel guard
retainer.
Paddle
wheel
guard
Retainer
Paddle
wheel
guard
Retainer
Paddle
wheel
guard
Paddle
wheel
guard
