10
Rear Panel
The 3-pronged power plug and console port are located at the rear panel of the
MIL-S8001TG as shown in Figure 2-3. The switch will work with AC in the
range 100-240V AC, 50-60Hz.

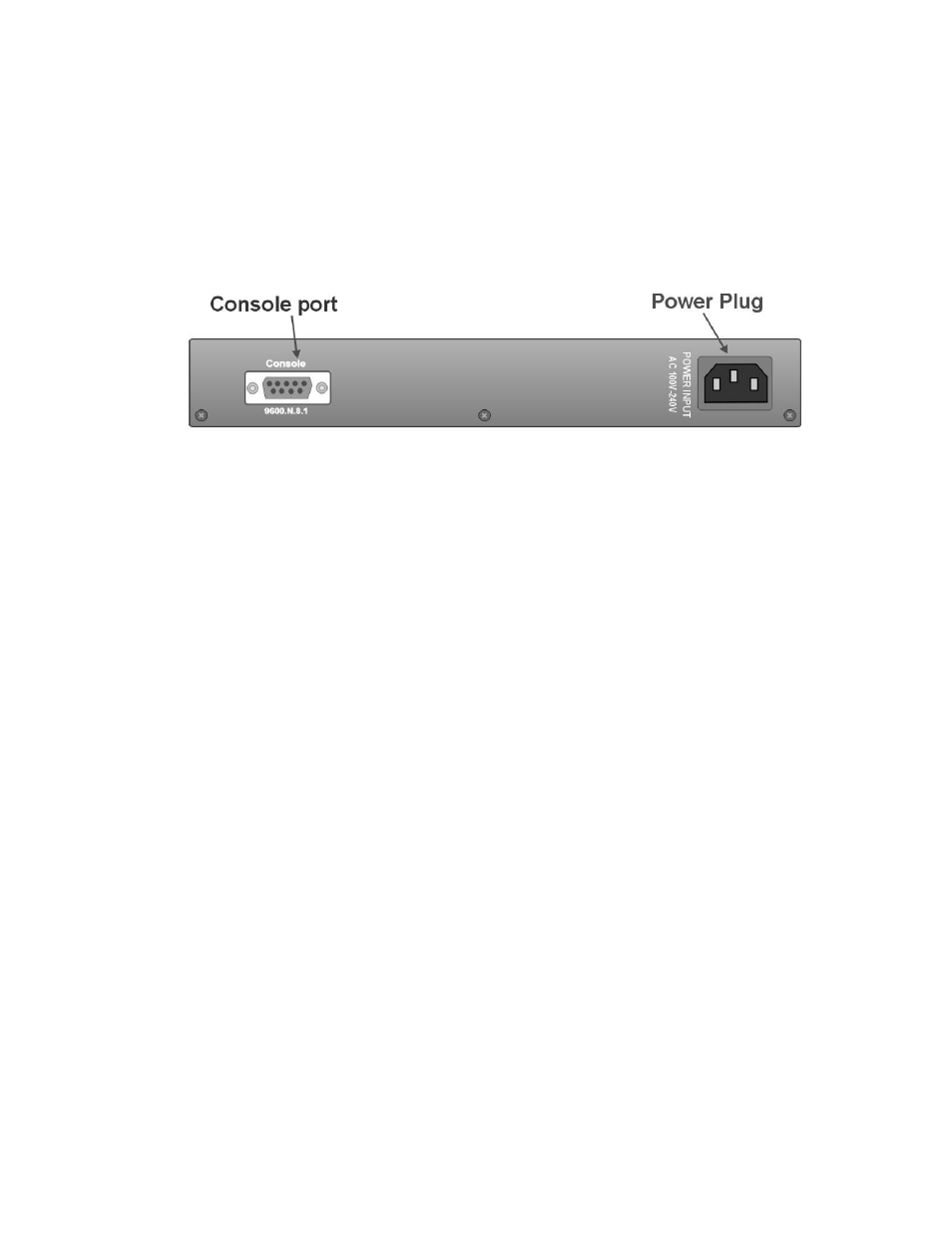

Figure 2-3. The Rear Panel of MIL-S8001TG switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The
surface where you put your switch should be clean, smooth, level and sturdy.
Provide enough clearance around the switch to allow attachment of cables,
power cord and air circulation.
Attaching Rubber Feet
A. Make sure the mounting surface on the bottom of the switch is grease and
dust free.
B. Remove adhesive backing from the rubber feet.
C. Apply the rubber feet to each corner on the bottom of the Switch.
These footpads can prevent the switch from shock/vibration.
