Magellan MAESTRO 5310 - Manual (Page 13)

Installation 4

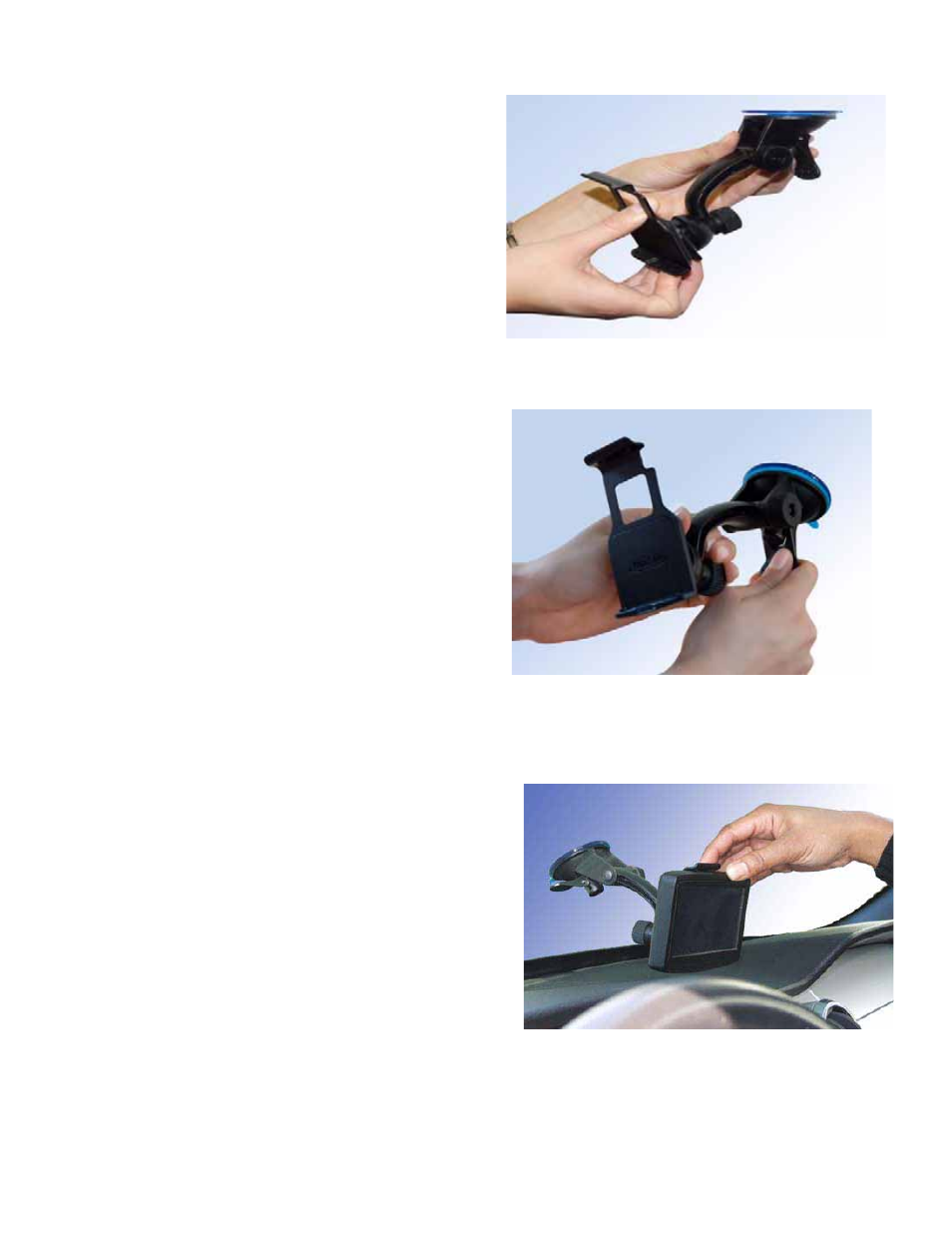

Attach the Cradle to the Swivel Mount
Line up the two tabs on the swivel mount
with the holes on the back of the cradle.
Push the cradle down until it locks in place
with the swivel mount.
Secure the Swivel Mount to the Windshield or Adhesive Disk
Make sure that the lever at the base of the
adjustable mount is in the up position. Place
the base of the swivel mount firmly over the
area of the windshield to be used or the
adhesive disk. Push the lever at the base of
the swivel mount all the way down until it
snaps in place. Carefully let go of the
assembly, making sure that it is securely
mounted.
Attaching the Magellan Maestro to the Cradle
Place the Magellan Maestro in the cradle, aligning
the indents on the bottom to the tabs on the
cradle. Snap the Magellan Maestro into place.
Adjust the Mount for Optimum Viewing
Loosen the adjustment locking knobs and position the Magellan Maestro for optimum viewing. Once
set, tighten the locking knobs. (Never attempt to adjust the mount while driving.)
