March Products 120 III (PC620) User Manual
Page 43
User Manual version 2503
LIBRA 120 III (PC620 Intel 815E)
3-33
F
IGURE

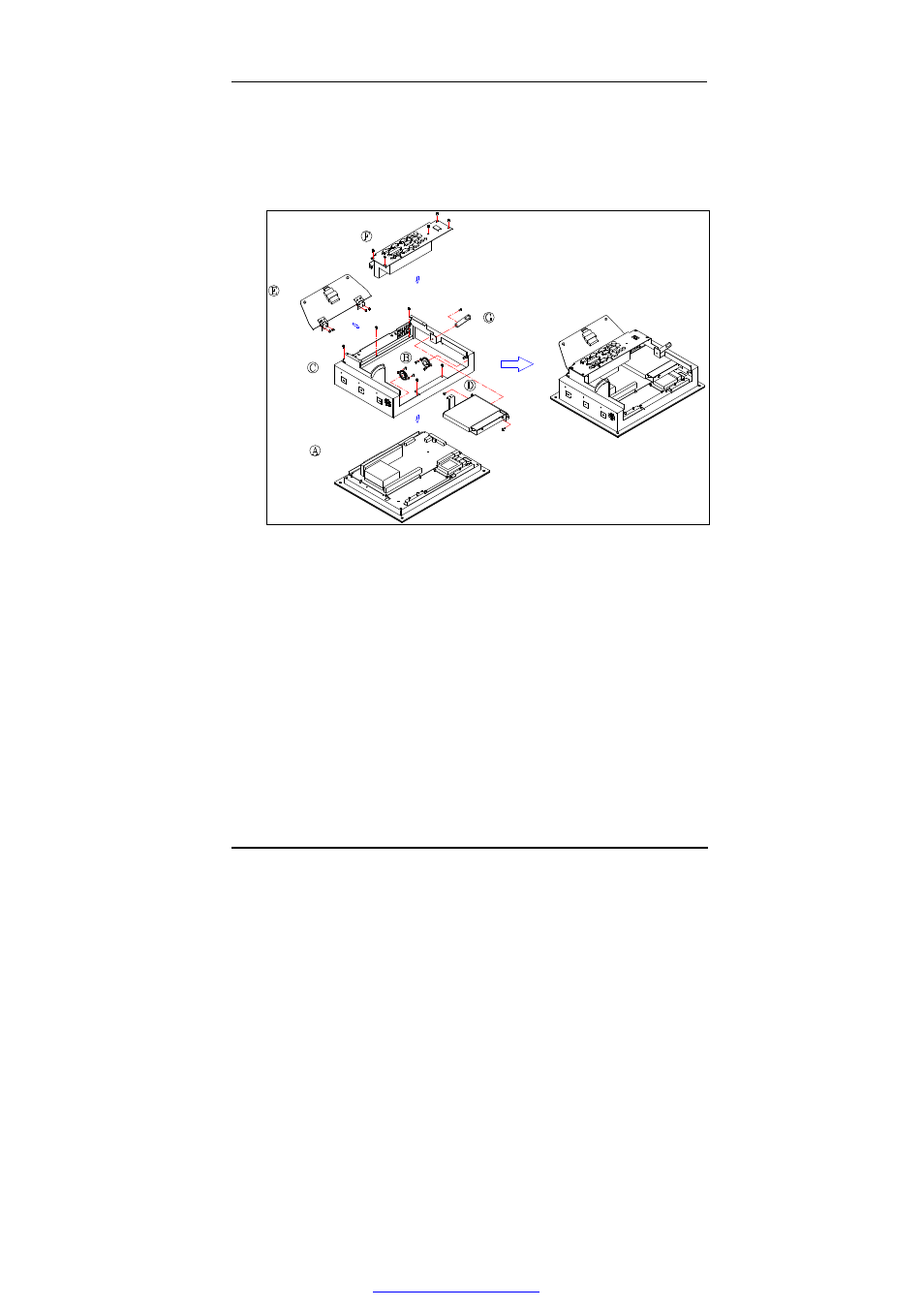

3-8:
P
ANEL
PC
M
ODULE
A
SSEMBLY
8. Connect the other end of the power switch wire form the
I/O module to the 2-pin
POWER ON
switch,
CN3
on the
motherboard
9. Fix the service door plate (E) to the chassis with four M3
nuts.
