User Manual version 2503
LIBRA 120 III (PC620 Intel 815E)
2-13
2.1.4. Wall Mounting
At the rear side of the cabinet, there are four avocado-shape
holes reserved for system’s wall mounting.

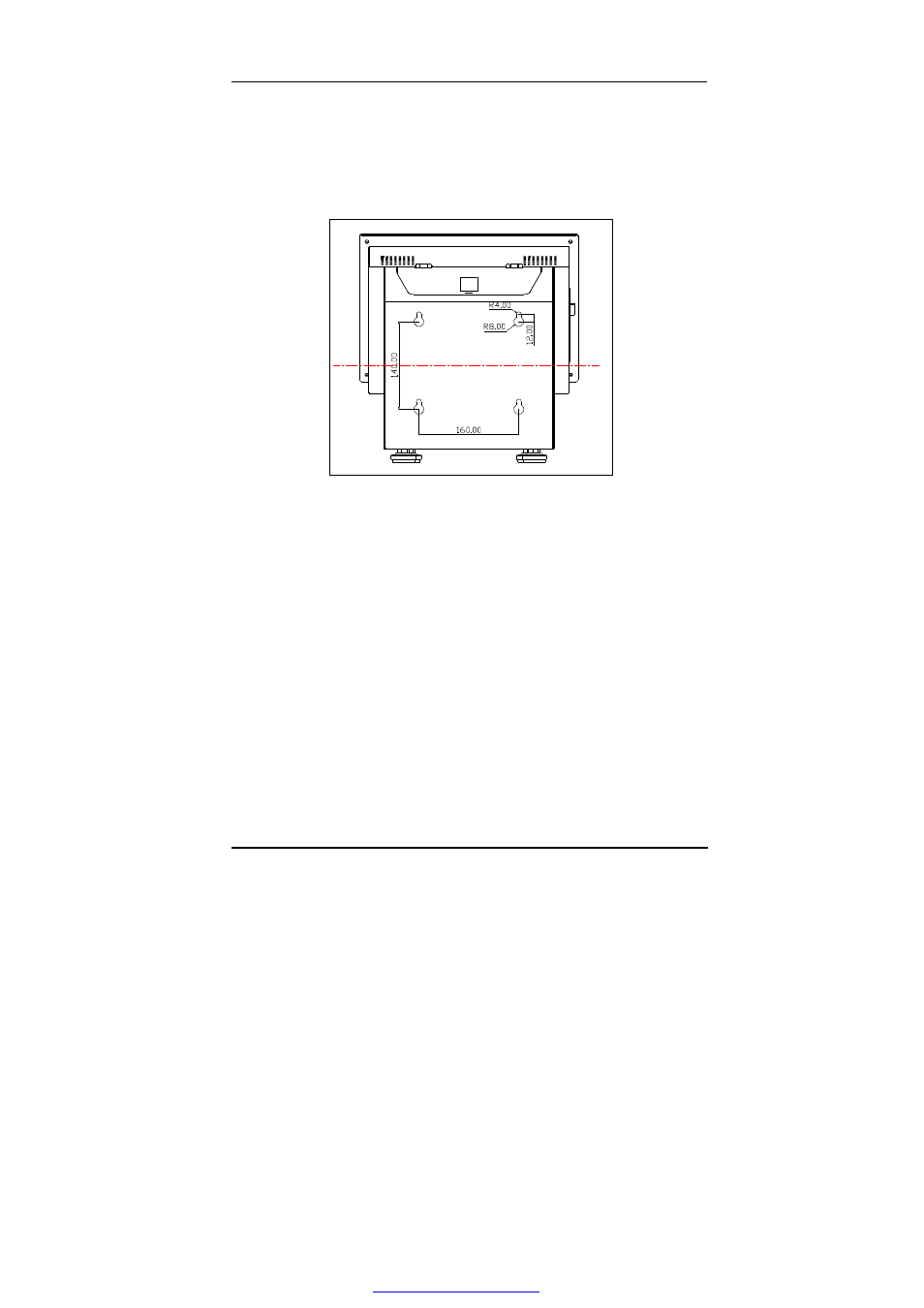

The following figure illustrates the distance between the
avocado holes.
F
IGURE
2-5:
WALL MOUNT
D
RAWING
