– 34 – EN
1L25
BALANCE
When the volume level differs from each speaker,
adjustment can be made in the unit of dB, from -12 dB
to 0 dB.
Select the speaker to set by pressing o/p buttons, then
press the ENTER button
Select the volume level by pressing o/p buttons, then
press the ENTER button
¡ TEST: The test tone is output in clockwise from
FRONT (L).
¡ Selecting respective speakers outputs the test tone at
the volume presently set.
Note
¡ When TEST is selected and the test tone is being
output, balance adjustment cannot be made.
¡ When TEST is selected, no test tone will be output
from SUBWOOFER.
¡ It is not possible to adjust this item for the speaker
that has been set to OFF in SPEAKER SIZE setting.
5 Press the SETUP button.
¡ The setup mode will be cancelled and the ordinary
screen will appear.
(R) (L) Center
Speaker
Sub-
Woofer
Surround (L) Surround(R)
The position to which it watches
and listens
The ideal position of the center speaker
Distance A
Distance C Distance F
Distance S
Distance B
The ideal position of the
surround speaker
Distance A = Distance F - Distance C
Distance B = Distance F - Distance S
We are making the plan so that a user may set up
Distance A and B.

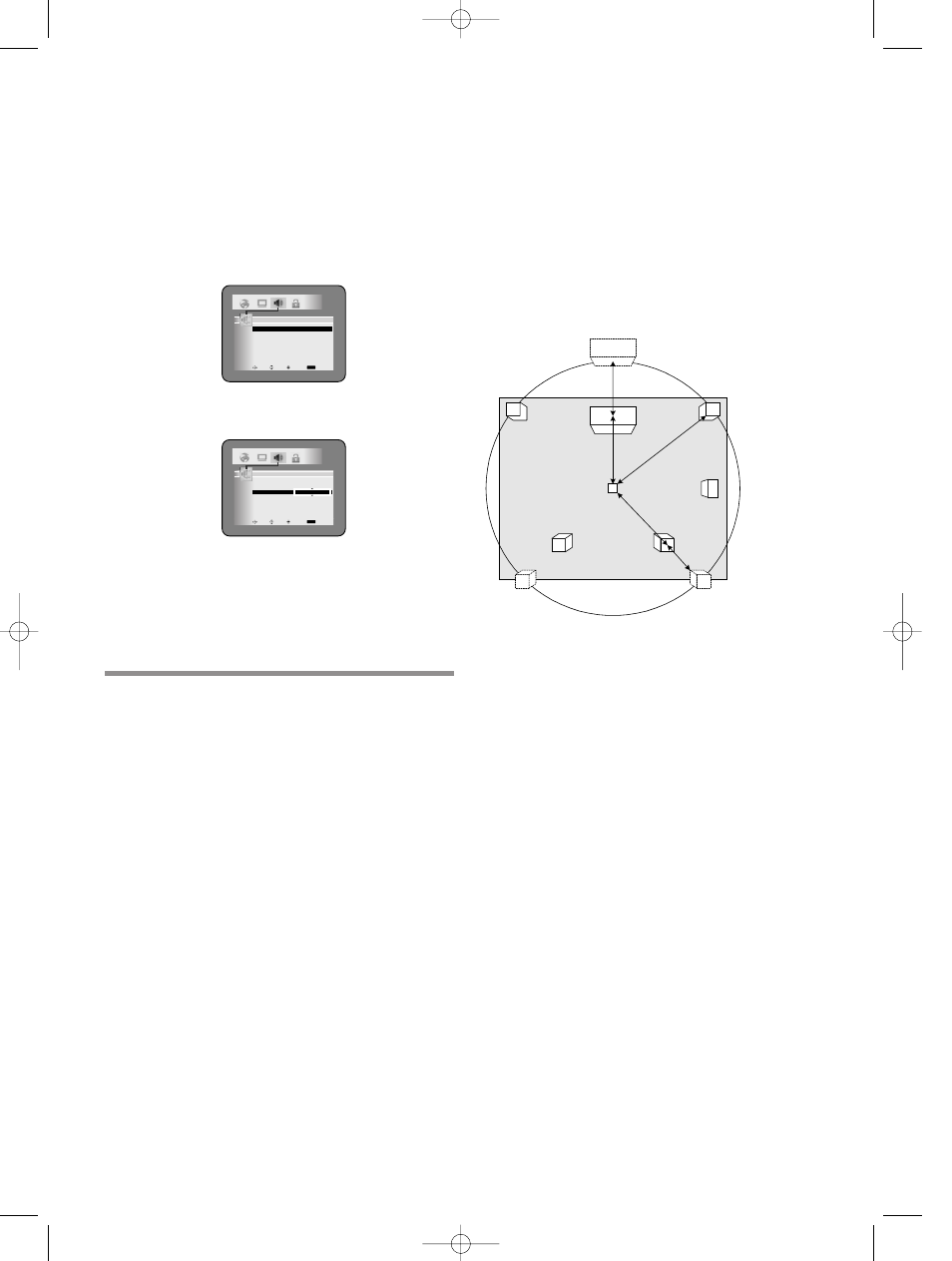

ABOUT A DELAY TIME
The delay effect is given to a voice output from a
center speaker and a surround speaker, and the ideal
viewing-and-listening position is discovered virtually.
As for a speaker, it is ideal to be arranged on a circle,
as shown in the following figure.
However, such arrangement may not be able to be
performed depending on your place.
It is possible to set up a delay time from the difference
in the position of an ideal speaker and the position of
an actual speaker.
ICON LINE ENTER RETURN RETURN
AUDIO
TEST OFF
FRONT(L) 0 dB
CENTER 0 dB
FRONT(R) 0 dB
SUB WOOFER 0 dB
SURROUND(L) 0 dB
SURROUND(R) 0 dB
LANGUAGE DISPLAY AUDIO PARENTAL
ICON LINE ENTER RETURN RETURN
AUDIO
TEST OFF
FRONT(L) 0 dB
CENTER 0d B
FRONT(R) 0 dB
SUB WOOFER 0 dB
SURROUND(L) 0 dB
SURROUND(R) 0 dB
0 dB
LANGUAGE DISPLAY AUDIO PARENTAL
