2. Slide the conveyor belt
through the support rods
underneath the frame, and
thread it through the oven.
Then, reach through the oven
window and pull the free end
of the belt through the oven
so that it lies atop the
conveyor frame.
Check that the links on the
conveyor are oriented as
shown in Figure 2-26.
Direction
of travel

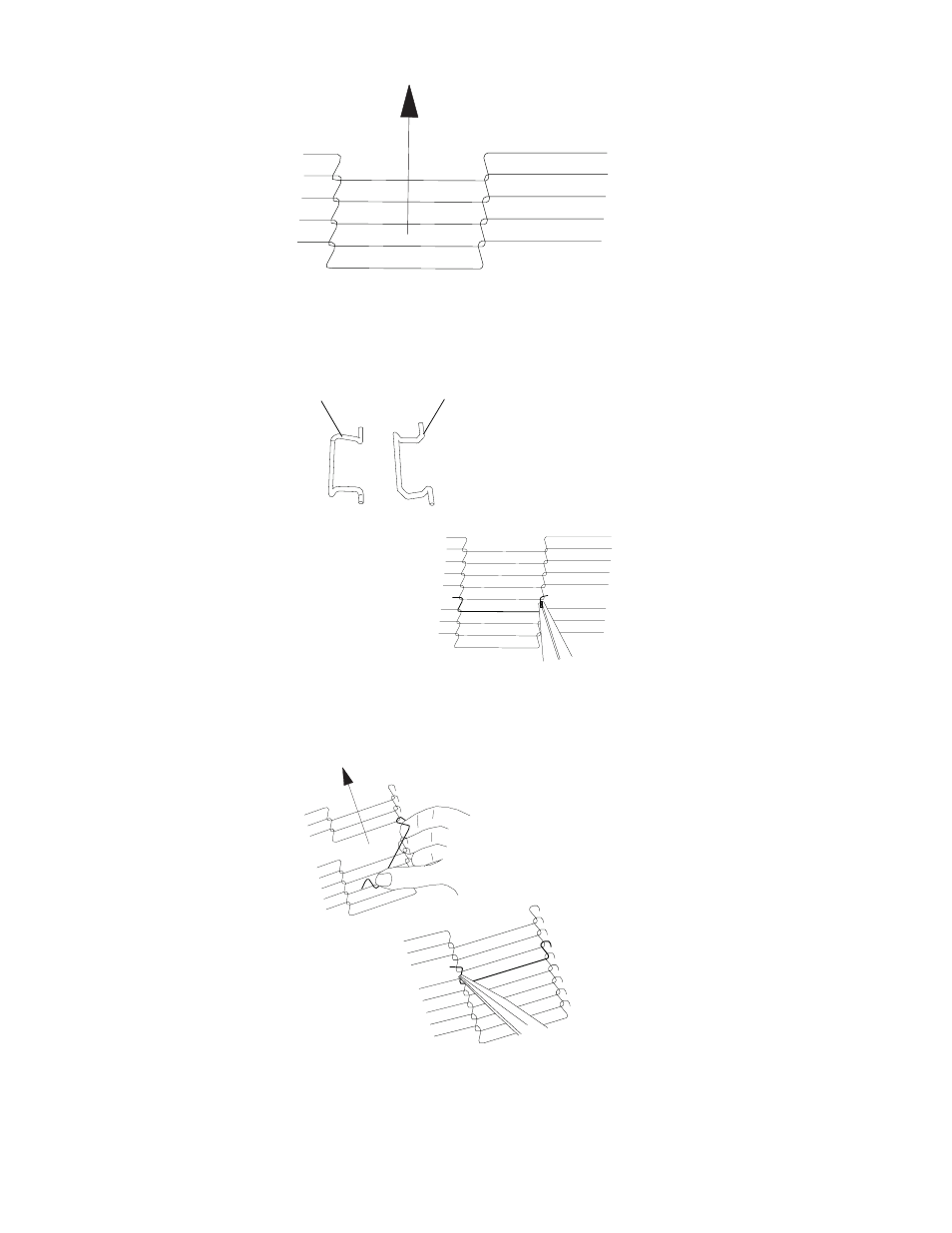

Figure 2-26
Conveyor Link Orientation
3. Connect the inside master
links. Check that the links
are oriented as shown in
Figure 2-27.
4. Connect the outside master
links. Note that the outside
master links have right and
left sides. The right-side
master link has an open hook
facing you, as shown in
Figure 2-28.
Figure 2-27
Inside Master Links
Correct
position
Incorrect
position
Direction
of travel
Figure 2-28
Outside Master Links
