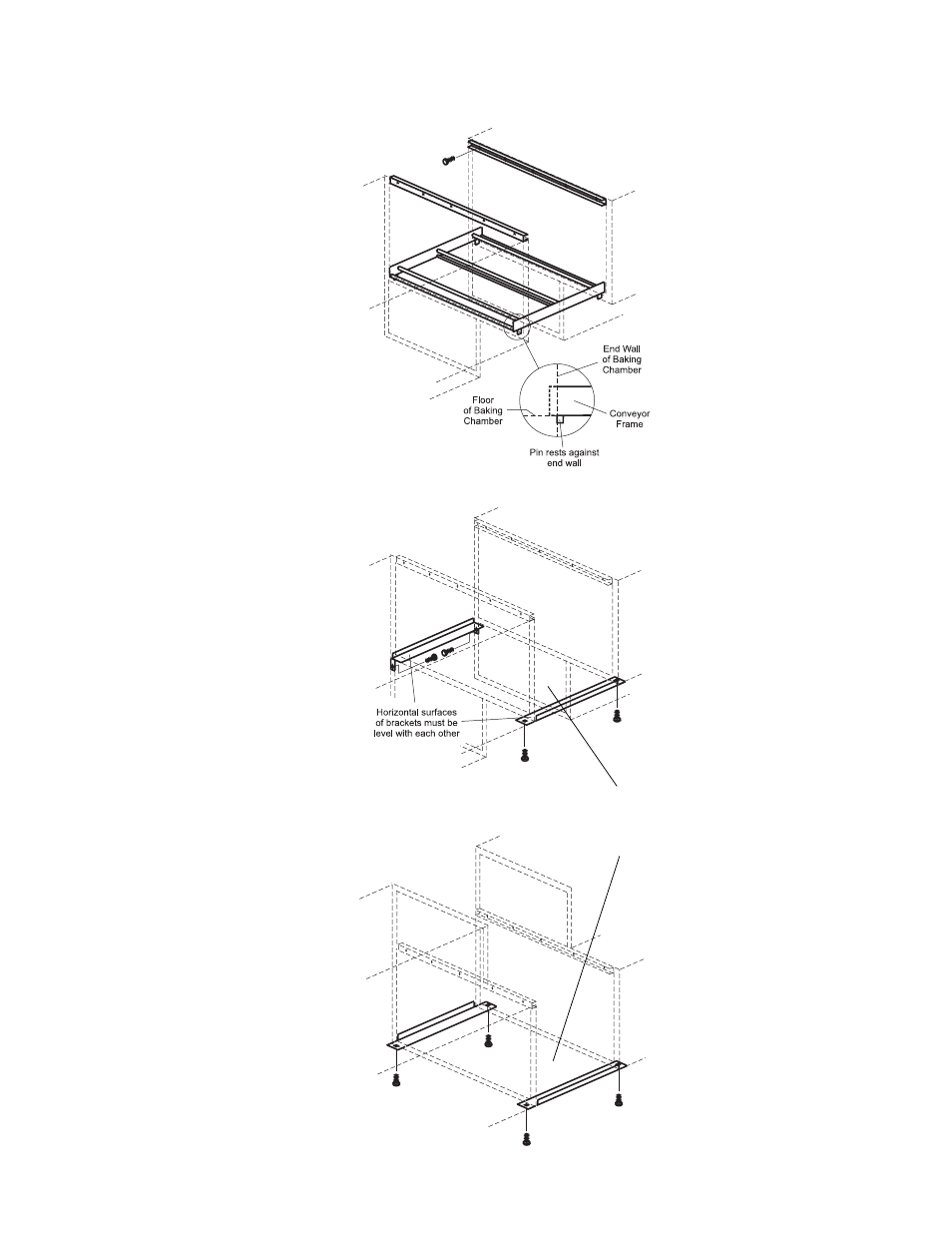

9. Test-fit the transition
section of the conveyor
frame, as shown in Figure
2-21. The alignment pins
on the bottom of the frame
ensure correct spacing of
the center ovens.
Figure 2-21
Transition
Frame Placement
10. Attach the two angled support
brackets between the two
center ovens, as shown in
Figures 2-22a and 2-22b.
Note that a LOWER OVEN
(PS360L, PS360WB-L) uses
different support brackets for
the front and rear, while an
UPPER OVEN (PS360U,
PS360WB-U) uses identical
brackets on the front and rear.
Figure 2-22a
Support Brackets -
Lower Oven
Figure 2-22b
Support Brackets -
Upper Oven
Conveyor frame
shown removed
for clarity
