SECTION 2
INSTALLATION
IV. THERMOCOUPLE
INSTALLATION
1. Install the thermocouple
sensing bulb into the correct
hole in rear of bake chamber as
shown in Figure 2-11.
2. Thread thermocouple lead
through grommet and into the
machinery compartment.
3. Remove the right-side ac-
cess panel of the machinery
compartment.
Thread the thermocouple lead
through the side of the machin-
ery compartment as shown in
Figure 2-12, and into the elec-
trical box (at the right-front of
the machinery compartment).

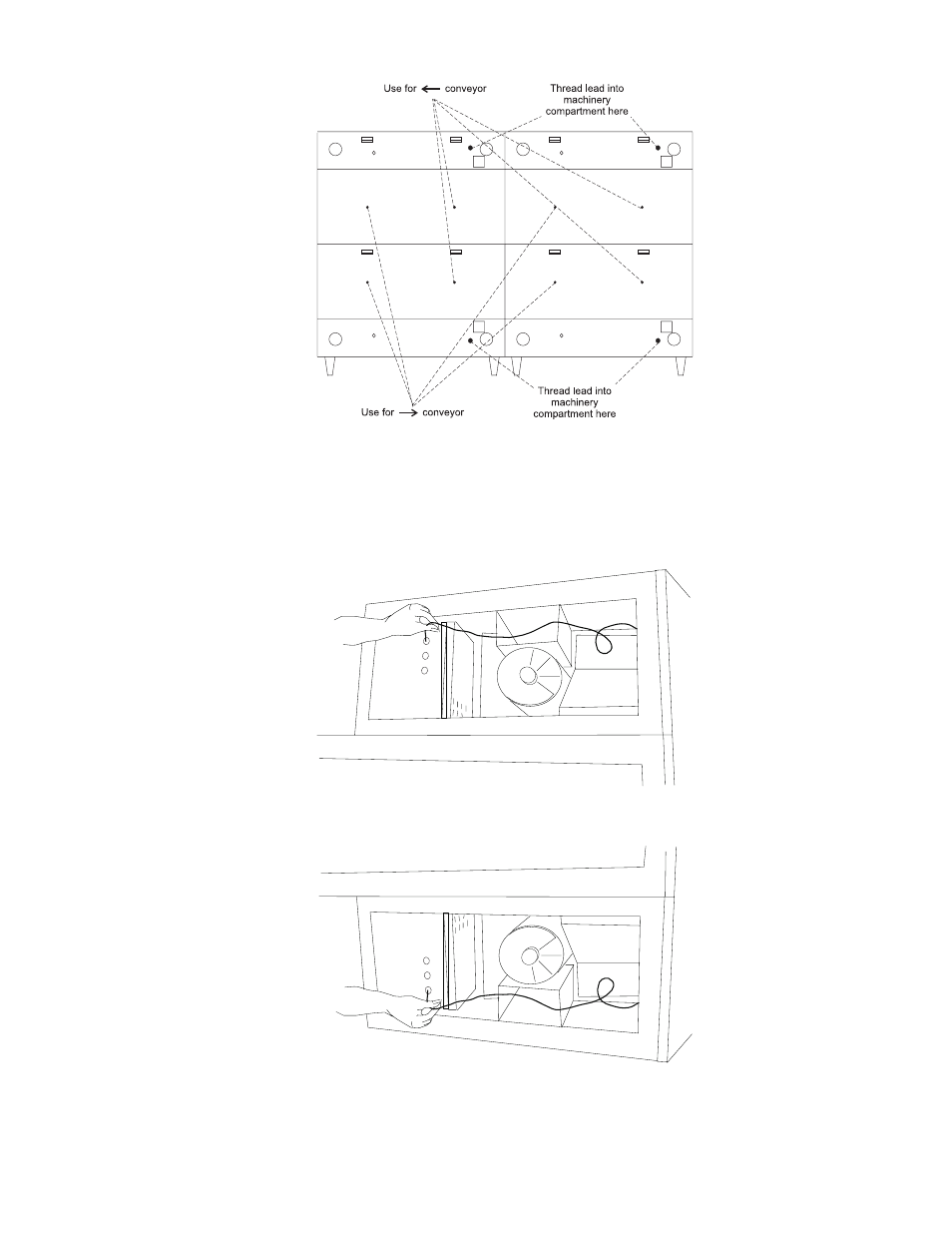

Figure 2-11
Thermocouple Installation Locations
Figure 2-12
Placing the Thermocouple Leads
