SECTION 4
MAINTENANCE

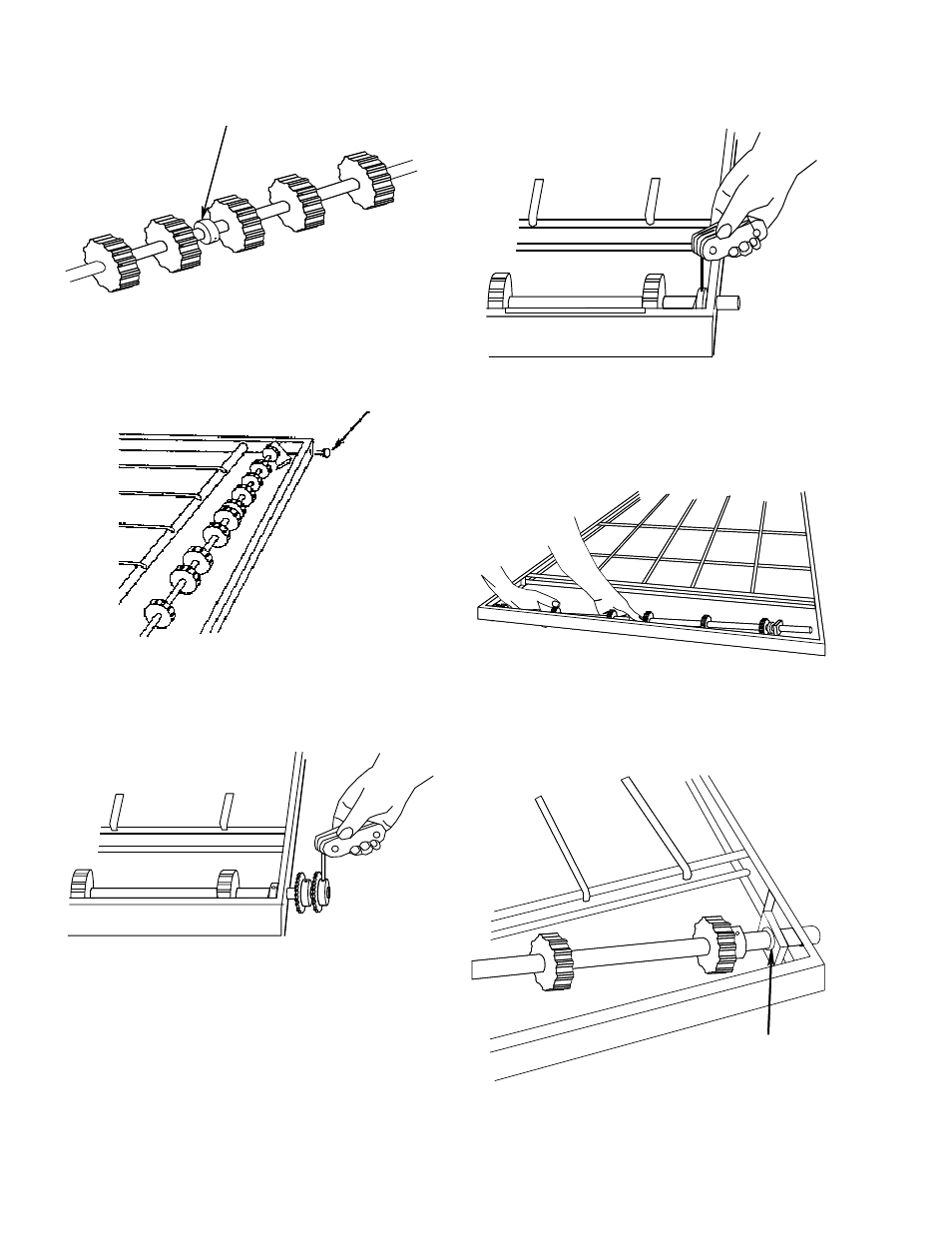

6. Make sure bronze washer is in between the two halves.
Figure 4-47.
7. Place the idler shaft assembly back into place and
reinstall the adjustment screws.
Figure 4-48.
8. Loosen the set screw on each conveyor drive sprocket
and remove sprockets.
Figure 4-49.
9. Loosen the split locking collar.
Figure 4-50.
10. Remove drive shafts by sliding to right then lifting the
left side. Follow cleaning and lubricating procedures out-
lined in Steps 4-6.
Figure 4-51.
11. Reassemble conveyor drive shafts into frame, mak-
ing sure nylon spacer is in place.
Figure 4-52.
