Middleby Marshall PS540 User Manual
Page 20
16
SECTION 2
INSTALLATION
RESTRAINT CABLE INSTALLATION
Install the restraint cable assembly on the oven, as shown
in Figure 2-6.

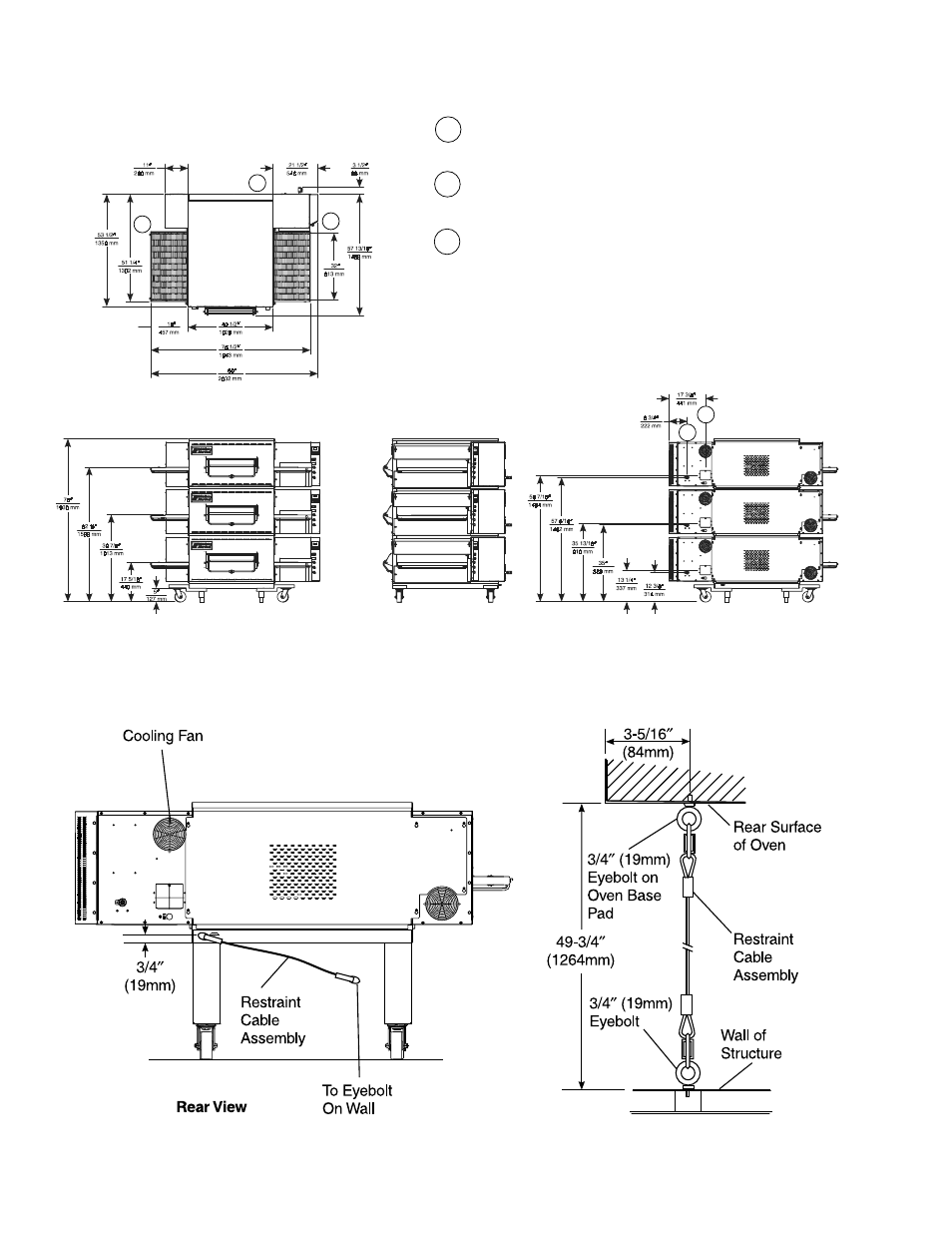

Figure 2-7. MODEL TRIPLE OVEN DIMENSIONS
GAS INLET
ELECTRICAL JUNCTION BOX
RECOMMENDED MINIMUM CLEARANCES:
Rear of Oven to Wall - 6
″ (150mm)
Non-control End of Oven to Wall - 0
″
Control End of Oven to Wall - 0
″
1
2
3
Figure 2-8. Restraint Cable Assembly Installation
2
3
3
3
1
