Status trunk – Multi-Tech Systems MT5600BL User Manual
Page 29
3 Using the Front Panel
21

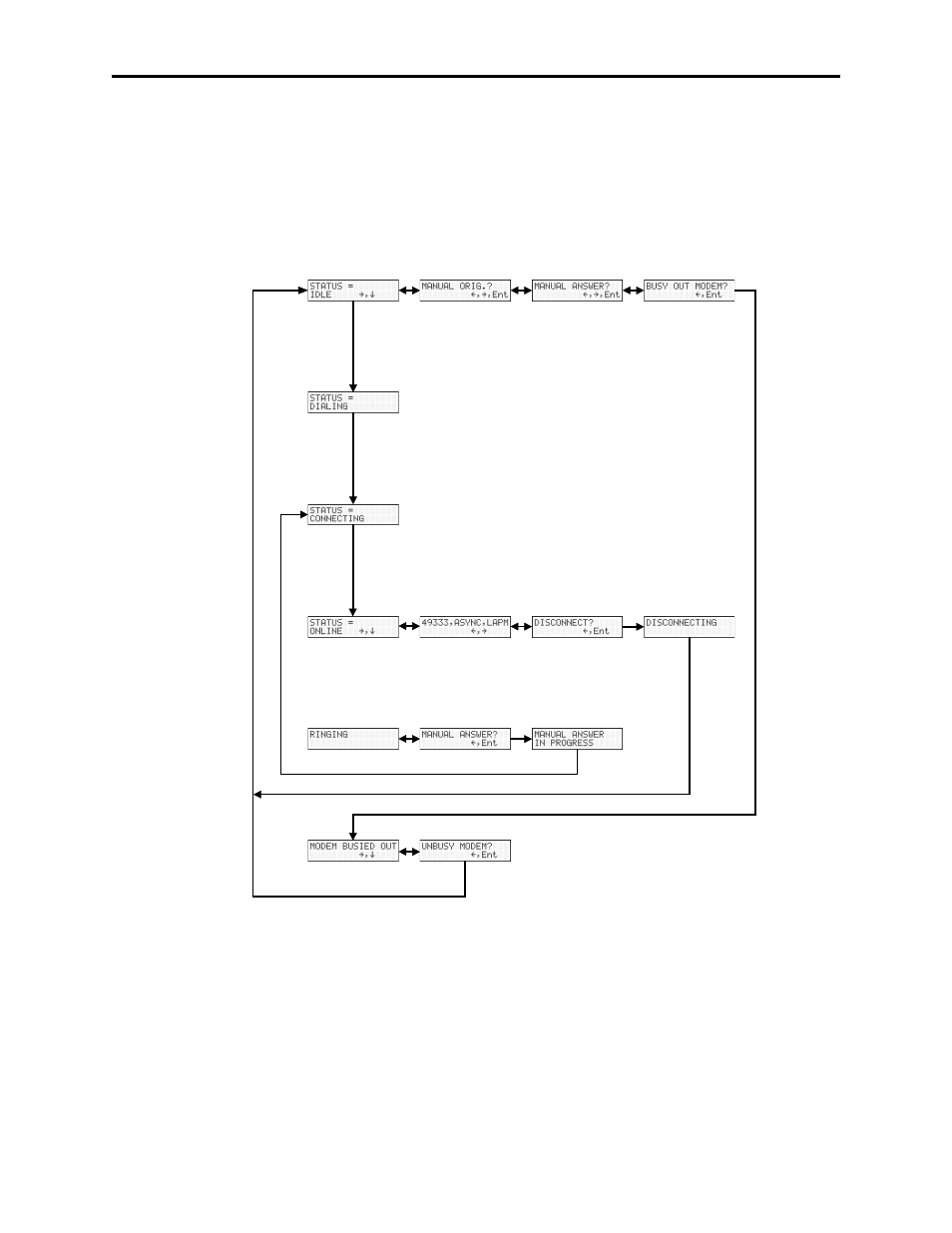

Status Trunk
The Status Trunk shows the current operating status of the modem. Limb changes
are automatic, but certain options can be accessed by pressing the
à button. Note
that when the modem is online, pressing the
à button shows the connect status, in-
cluding the data speed, connection type, and compression type.
Limbs
Twigs
