Technical data

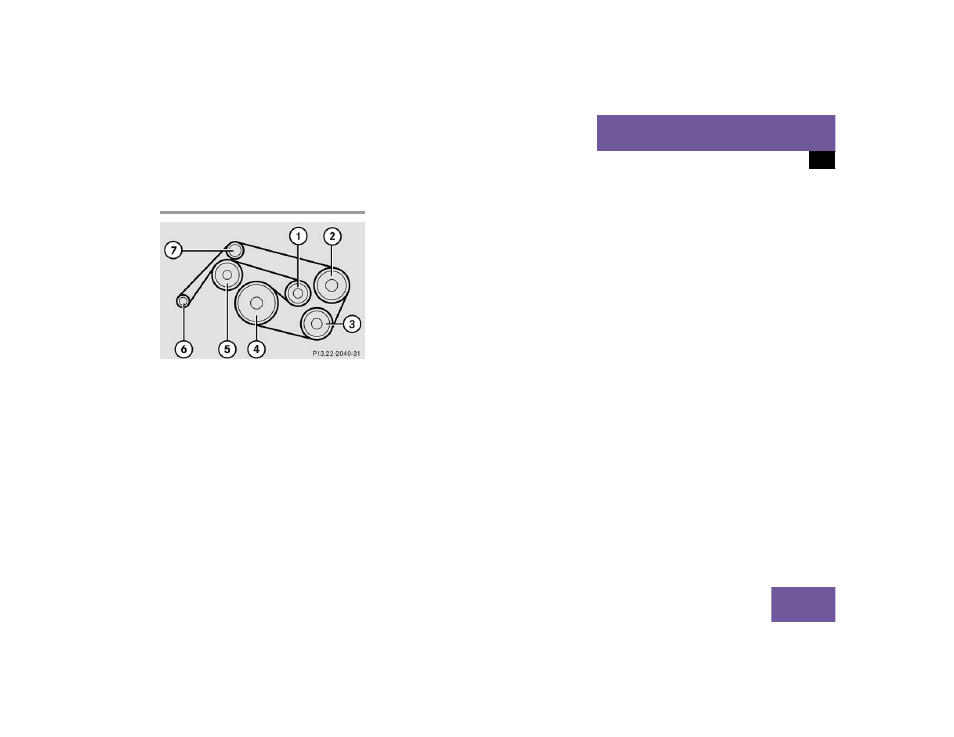

Layout of poly-V-belt drive

Layout of poly-V-belt drive

E 320/E 500

1 Automatic belt tensioner
2 Power steering pump
3 Air conditioner compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
