Philips Magnavox MRD300 - Manual

Front Speaker
(Right)
Front Speaker
(Left)
MRD300
1 2
PUSH
OUT
PUSH
IN
Center Speaker
Rear Speaker
(Surround Right)
Rear Speaker
(Surround Left)
Passive
Subwoofer
FM Antenna
AM Loop
Antenna
MAGNAVOX
S M A R T . V E R Y S M A R T .
Rear of TV
(example only)

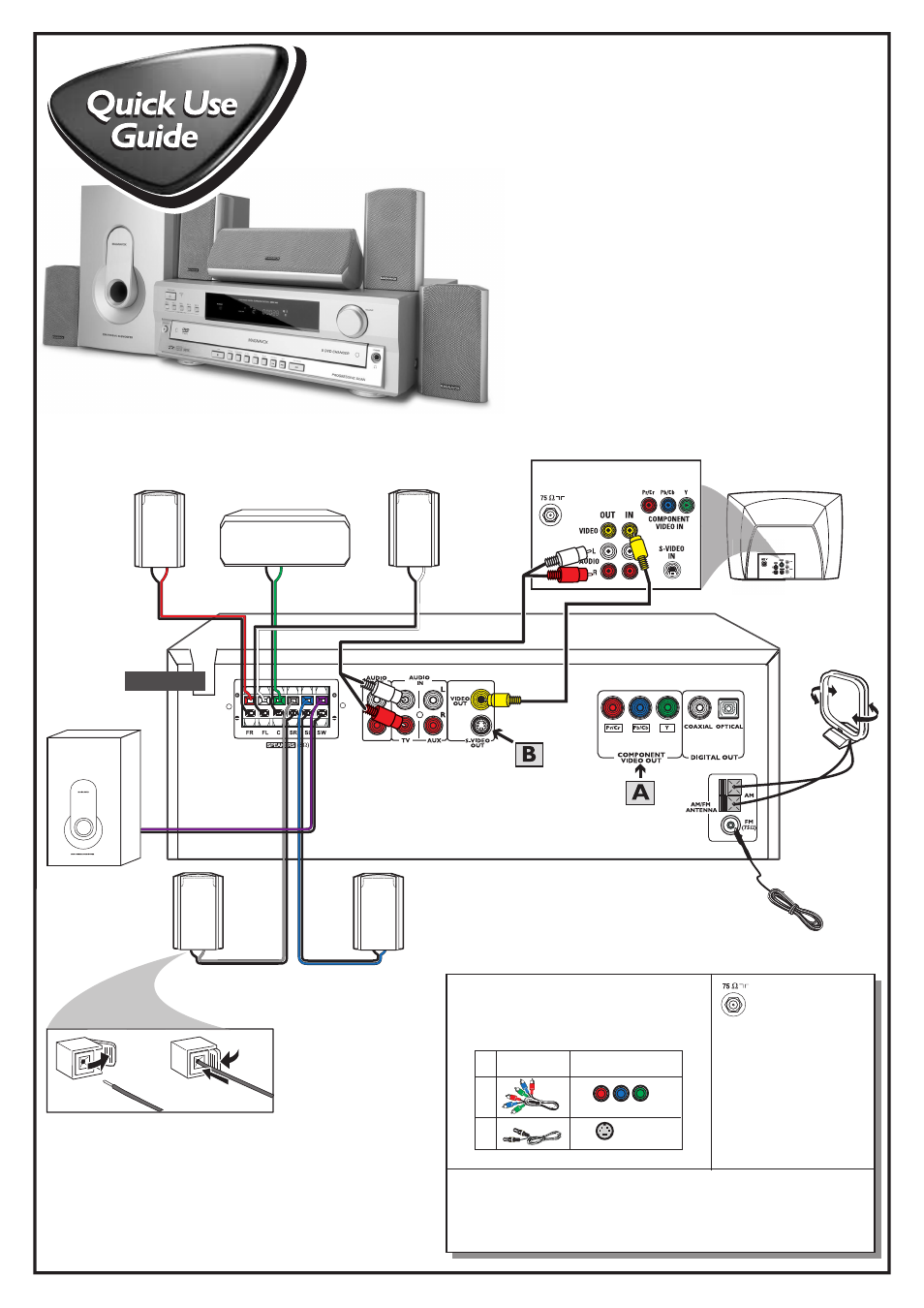

Connecting Speaker Cable
Printed in China
First connect ...
... then play
(see next page)
Helpful Hints
To obtain a better picture quality effect, you can
choose to connect an extra video connection if
your TV has the same input connector: A or B.
If your TV has
this video input jack(s)
A
B
Use this
video cable(s)
not supplied
S-VIDEO
IN
COMPONENT VIDEO IN
ANTENNA IN
When listening to TV programs, press TV•AUX button at the front panel
of the DVD system to select ‘AUDIO IN-TV’ in order for the sound to be
heard.
For connecting to a VCR, see page 9 in the owner’s manual for more details.
If your TV has only
a single Antenna In
jack, you will need an
accessory RF
modulator. The RF modulator
converts the video from the
DVD system so it can play
through the TV’s Antenna
connector. Refer to your
owner’s manual for proper
connection (refer to page 9 in
the owner’s manual.)
