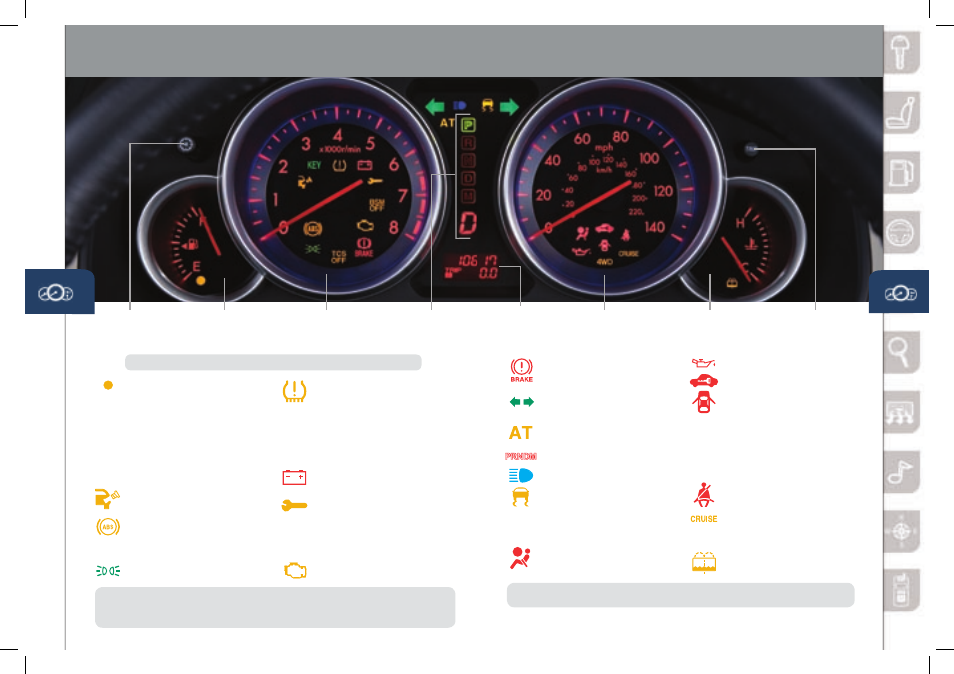

Instrument Cluster
7
8
Low Fuel
KEy Warning Light
(
rED
)
Advanced key not detected
or transmitter battery is dead.
KEy Indicator Light
(
GrEEn
)
On: Advanced key detected; engine
is ready to start.
Flashing: Advanced key battery is low.
Check Fuel Cap
ABS
(Antilock Brake System)
ABS malfunction
Lights On (Exterior Lights)
Tire Pressure
Monitoring System (TPMS)
Tire pressure may be low in one or
more tires.
TCS OFF
(Traction Control System)
Charging System
Charging system malfunction
Powertrain Malfunction/
reduced Power
BSM OFF
(Blind Spot Monitoring)
Check Engine
TAChOMETEr
FUEL GAUGE
Brake
Parking brake on/low brake
fluid/malfunction
Turn Signals/
hazard Warning
Automatic Transmission
Transmission malfunction
A/T Shift Position
headlight high Beam
Traction Control System
(TCS)/Dynamic Stability
Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Airbag/Front Seat Belt
Pretensioner System
On or Flashing: Airbag malfunction
Low Engine Oil Pressure
Security Indicator
Door Ajar
4WD
Dealer inspection is required if this
light is flashing, indicating high
temperature differential oil, or if the
light stays illuminated, indicating an
abnormality with the system.
Seat Belt
Seat Belt unbuckled/malfunction
Cruise Main Indicator
Light
(
AMBEr
)
/Cruise Set
Indicator Light
(
GrEEn
)
Low Washer Fluid
SPEEDOMETEr
TrIP METEr
SELECTOr
InSTrUMEnT
CLUSTEr DIMMEr
1
EnGInE COOLAnT
TEMPErATUrE GAUGE
ODOMETEr/
TrIP METEr
2
GEAr InDICATOr
TCS
OFF
KEy
KEy
4WD
BSM
OFF
GLOSSAry OF WArnInG AnD InDICATOr LIGhTS
nOTE:
See Owner’s Manual for more details and explanations.
nOTE:
The tire pressure should be set when tires are cold. Large changes in ambient
temperatures or altitude will cause tire pressure change and may cause TPMS warning
light to illuminate.
1
nOTE: If the instrument cluster and other dashboard illuminations do not dim when turning on the
head lights, push the knob.
2
• Push to toggle between odometer and trip odometer (A & B).
• When a trip meter is selected, push and hold to reset to zero.
