Maxtor 4 Channel Digital Video Recorder User Manual

Page 5

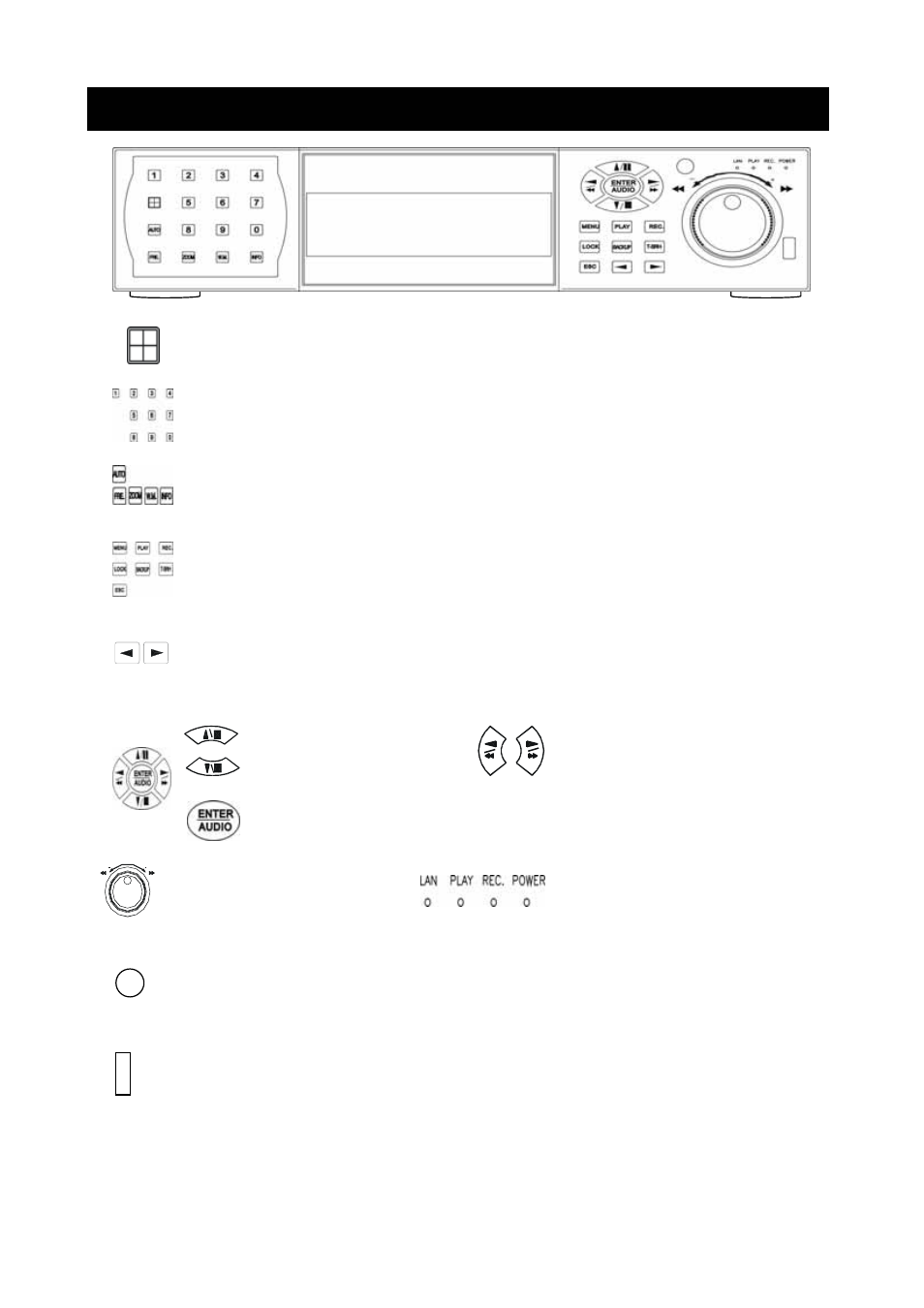

Unit Description of Front Panel

4 split screen

1 ~ 4 full screen / password

Sequence / Freezer / Zoom / Water Mark(PTZ mode) / Information

MENU

button / PLAY button / REC. record button LOCK key lock button

BACKUP

data back up button / T-SRH time search playback button

ESC

function exit button

Value change button

Direction UP / Down,

Record and play stop,

Playback pause / steps.

Direction Left / Right

Playback forward or reverse.

ENTER / Audio ON or OFF

Playback forward / reverse

Function item change shuttle.

Function LED light display

Remote controller IR

USB. Data backup or firmware update
