Connecting & Starting the MultiAccess MultiAccess Quick Start Guide
20 Multi-Tech Systems, Inc. PN 82001423L

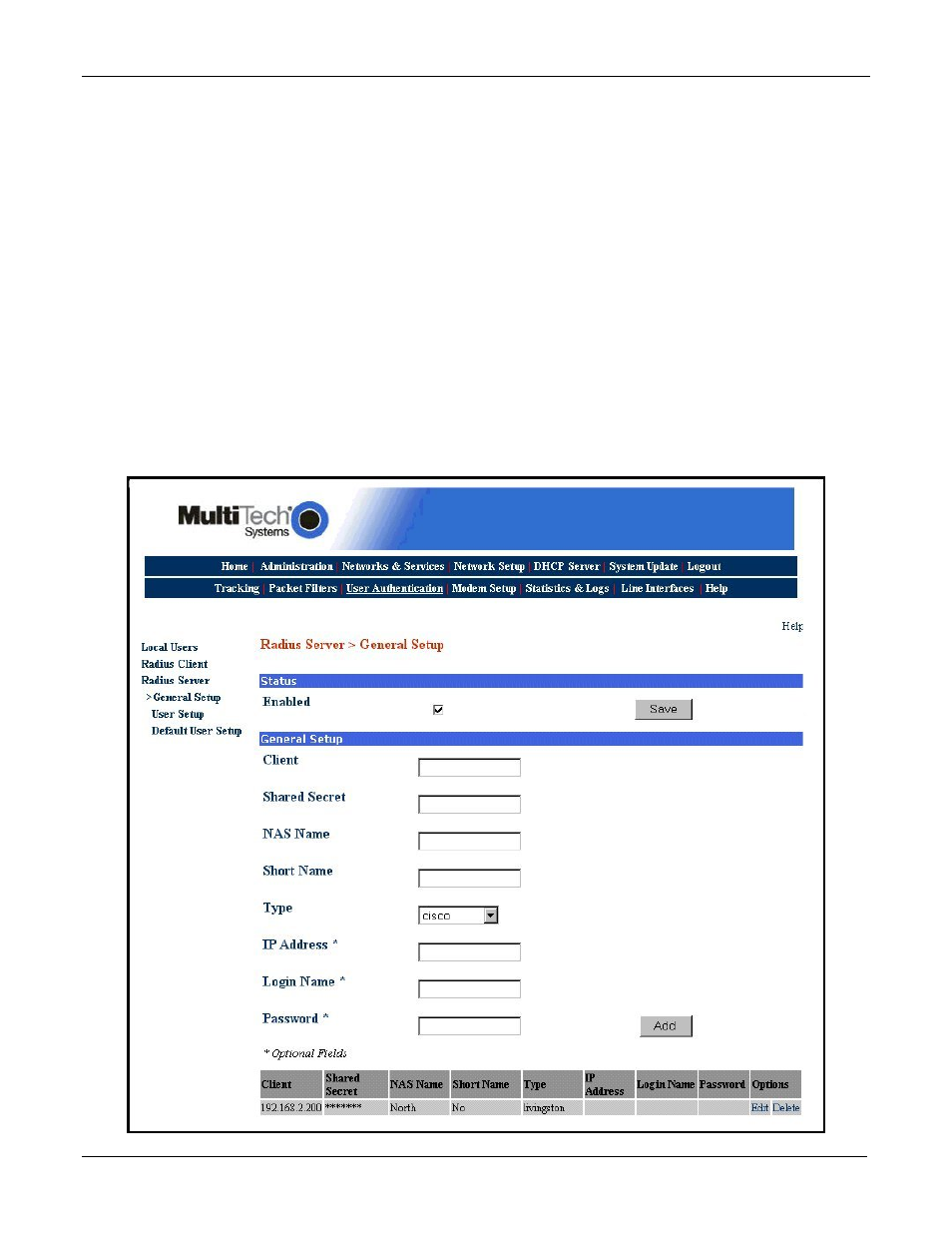

Radius Server > General Setup
If you are going to use the Radius Server that comes with your MultiAccess, then you need to tell the Radius
Server who the Radius Clients are. You need one entry for each Network Access Server (NAS) in your network.
Note: When using the internal Radius Server, you must use the IP address of network card 1 (eth0).
1. You can enable the Radius Server by clicking on the Enabled window and then clicking on the Save button
activates the server.
2. Enter the IP address of network card 1 (eht0) in the Client window. This IP address tells the Radius Server
where the Radius Client is located.
3. Enter the same Radius Server Secret used in the Radius Client screen into the Shared Secret window. The
Shared Secret in the Radius Server and the Radius Server Secret in the Radius Client have to be the same in
order for the two to communicate.
4. You can enter an arbitrary name, unique name for each NAS in the Short Name window.
5. Select the manufacture of radius client/NAS that is being used in your system from the Type drop down
arrow. For example, multitech, livingston, or etc.
6. The three optional items are to restrict simultaneous logins.
7. Click Add when you are finished.
