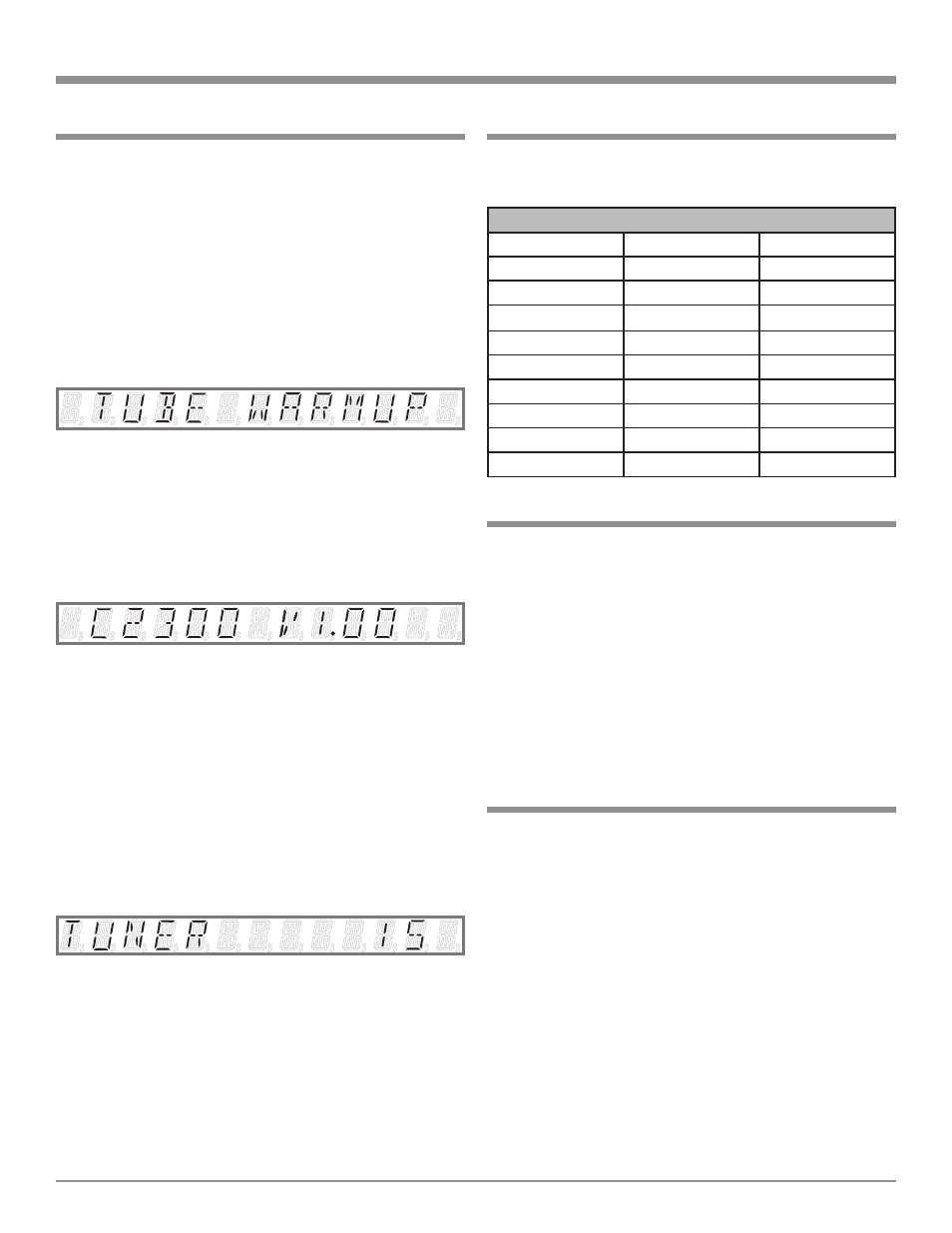

11
The C2300 functionality is controlled by internal software
that is know as Firmware. The Version of the Firmware
in the C2300 can be identified at any time by utilizing the
Setup Mode.
1. Press the SETUP Push-button to access the Setup
Mode.
2. Rotate the MENU (INPUT) Control until C2300 V1.00
or higher appears. Refer to figure 2.
3. The number after the character “V” is the Firmware
number.
4. Press the SETUP Push-button to exit the Setup Mode.
Setup
Your McIntosh C2300 has been factory configured for
default operating settings that will allow immediate enjoy-
ment of superb audio without the need for further adjust-
ments. If you wish to make changes to the factory default
settings, a Setup Feature is provided to customize the oper-
ating settings using the Front Panel Alphanumeric Display.
Refer to the C2300 Front Panel Illustration on the previous
page while performing the following steps.
Note: If the C2300 is currently, On proceed to step 2.
1. Press the STANDBY/ON Push-button to switch On the
C2300. The title TUBE WARMUP will appear on the
Front Panel Alphanumeric Display. Refer to figure 1.
Note: The Red LED above the STANDBY/ON Push-but-
ton lights to indicates the C2300 is connected to AC
Power.
2. Press the C2300 Front Panel SETUP Push-button. The
LED above the SETUP Push-button will illuminate
and the Front Panel Display will indicate C2300 V1.00
or higher. Refer to figure 2.
Note: The Front Panel Display will indicate C2300
V1.00 or higher the first time, after that it will dis-
play whatever Setup Mode was last accessed.
3. Rotate the MENU (INPUT) Control and notice the
Setup Mode goes forwards through eight different
possible adjustment selections and one informational
display.
4. To exit from a specific Setup Mode, press the SETUP
Push-button a second time. The LED above the SET-
UP Push-button will extinguish and the Front Panel
Display will revert back to its normal display. Refer to
figure 3.
How to Operate the Setup Modes
The Default Settings Chart below indicates the Function
Name, default Setting and the page number for additional
information.
Default Settings
Firmware Version
Trim Level Adjustment
Source Components can have slightly different volume
levels resulting in the need to readjust the C2300 Volume
Control when switching between different sources. The
C2300 allows the adjustment of levels for each of the
Source Inputs for the same relative volume. The Tuner and
CD Inputs are used in the following example.
Note: The range of adjustment is ± 6dB. The Tape/Record
Output Levels are unaffected by any changes in the
Level Trim Settings. The Trim adjustments made are
retained in permanent memory. They can be changed
by performing a new Trim Procedure. The Tuner Input
Volume Level can serve as a reference or choose an-
other source frequently listened to. The reference Input
Source should be set to a Trim Level of 00.
1. Rotate the INPUT Control to select the Tuner Input
and adjust the VOLUME Control to the desired listen-
ing level.
Default Settings
Function Name Setting Page No.
C2300 V_._ _ 11
TRIM TUNer 0.0 11
INPUT 3  TUN 12
METER ON 12
DISPLAY 7 13
TRIGger TUNER> - - 13
ACCessory MAIN 13
TUBE LED ON 13
PASSTHRU OFF 13
Figure 2
Figure 3
Figure 1
