McCulloch MC1136B - Manual (Page 37)

37
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC1136 (MC1136B), PRODUCT NO. 964 77 30-01

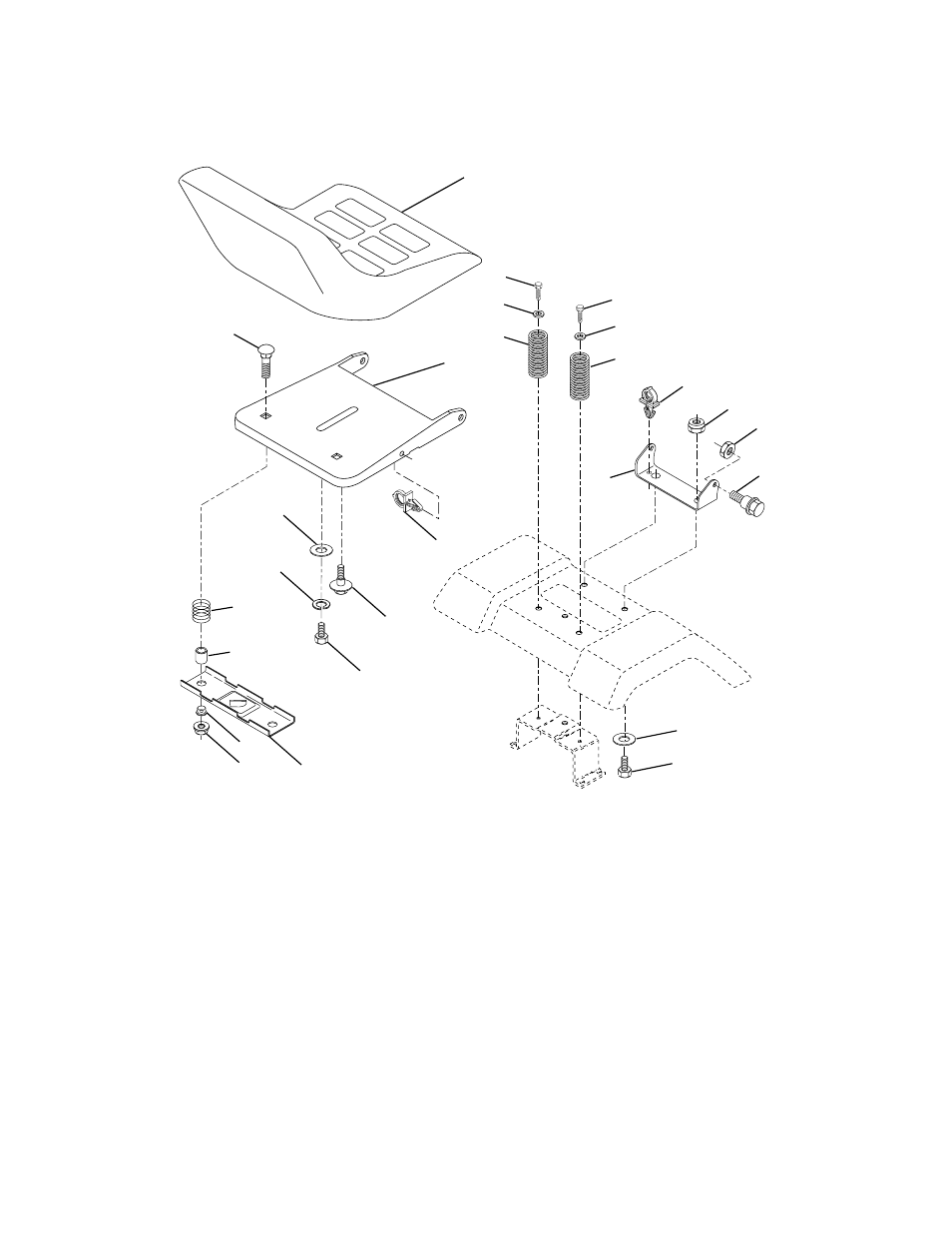

SEAT
KEY PART
NO. NO. DESCRIPTION
1 532 17 53-89 Seat
2 532 14 05-51 Bracket Seat Pivot
3 871 11 06-16 Bolt Hex 3/8 - 16 x 1
4 819 13 16-10 Washer 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push-In Hinged
6 873 80 06-00 Nut Lock Hex w/Ins 3/8 - 16
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1.5
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 18 24-93 Pan Pnt Seat (Blk)
12 532 12 12-46 Bracket Pnt Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl
KEY PART
NO. NO. DESCRIPTION
14 872 05 04-12 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2
15 532 13 43-00 Spacer Split .28 x .96
16 532 12 12-50 Spring Cprsn
17 532 12 39-76 Nut Lock 1/4 Lge Flg
21 532 17 18-52 Bolt Shoul der 5/16-18 Unc-2A
22 873 80 05-00 Nut Lock Hex w/Ins 5/16 - 18
23 871 11 08-14 Bolt Hex Black
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoul der 5/16-18 x .62
26 810 04 08-00 Washer Lock Hvy Hlcl Spr 1/2
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
seat_lt.bolt_1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
