SERVICE AND ADJUSTMENTS

TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 27)

• Raise hood.
• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

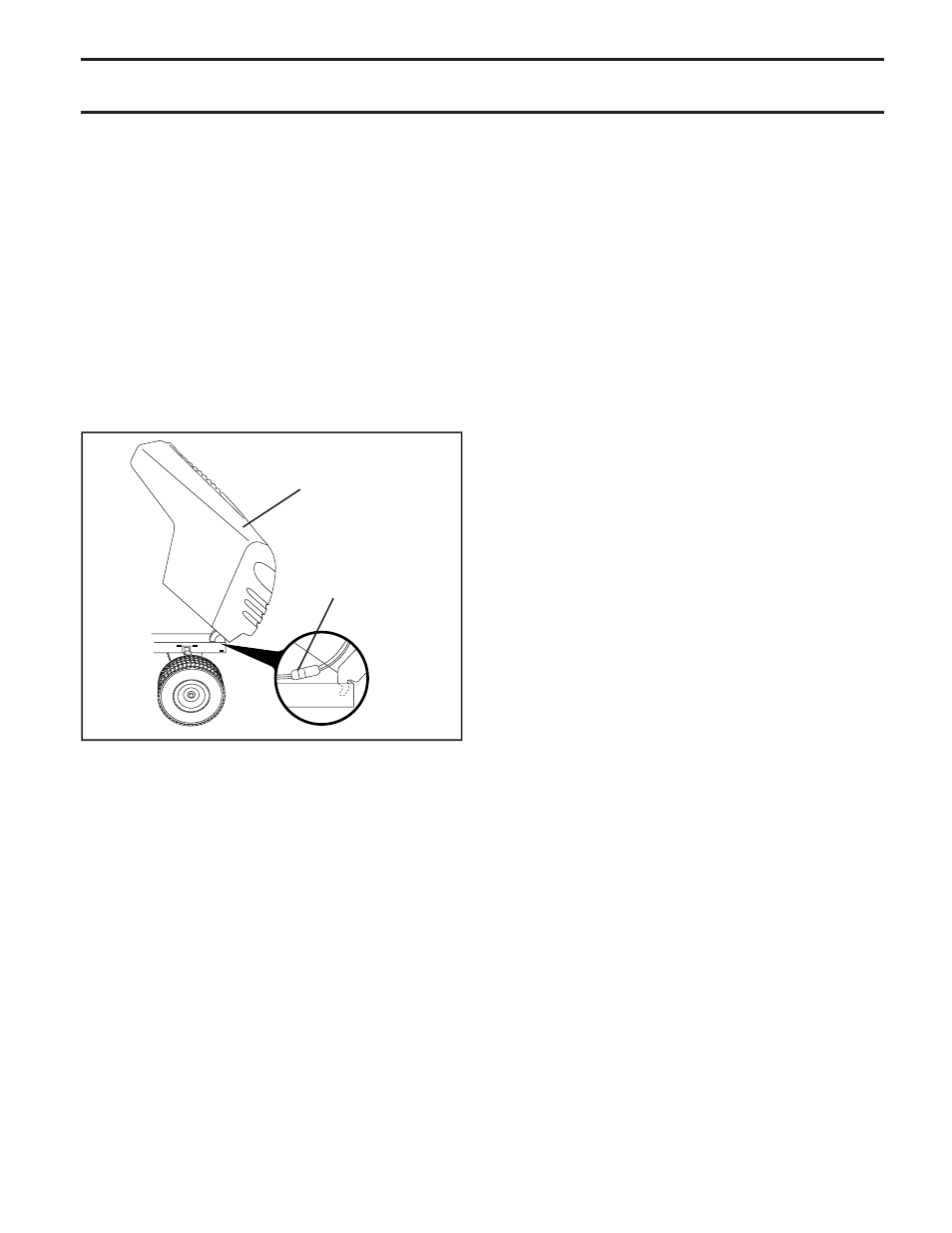

01536

FIG. 27

HEADLIGHT
WIRE
CONNECTOR

HOOD

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The

throttle control has been preset at the factory and ad just ment
should not be necessary. If adjustment is necessary, see
engine manual.

TO ADJUST CARBURETOR

The carburetor has been preset at the factory and ad just ment
should not be necessary. However, minor ad just ment may be
required to compensate for differences in fuel, temperature,
altitude or load. If the carburetor does need adjustment,
see engine manual.
