McCulloch MC1136B - Manual (Page 36)

36
KEY PART
NO. NO. DESCRIPTION
1 532 17 05-51 Control Throttle/Choke Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine, B&S Model No. 217707
(Order parts from engine manufac-
turer)
4 532 17 97-58 Muffl er
13 532 16 52-91 Gasket Muffl er
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
23 532 16 98-37 Shield BRN/DBR Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 51-15 Tank Fuel Front
32 532 14 05-27 Cap Asm Fuel
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
44
46
32
31
33
37
33
13
4
72
78
81
3
16
78
23
45
14
38
40
engine-bs.1cyl_17

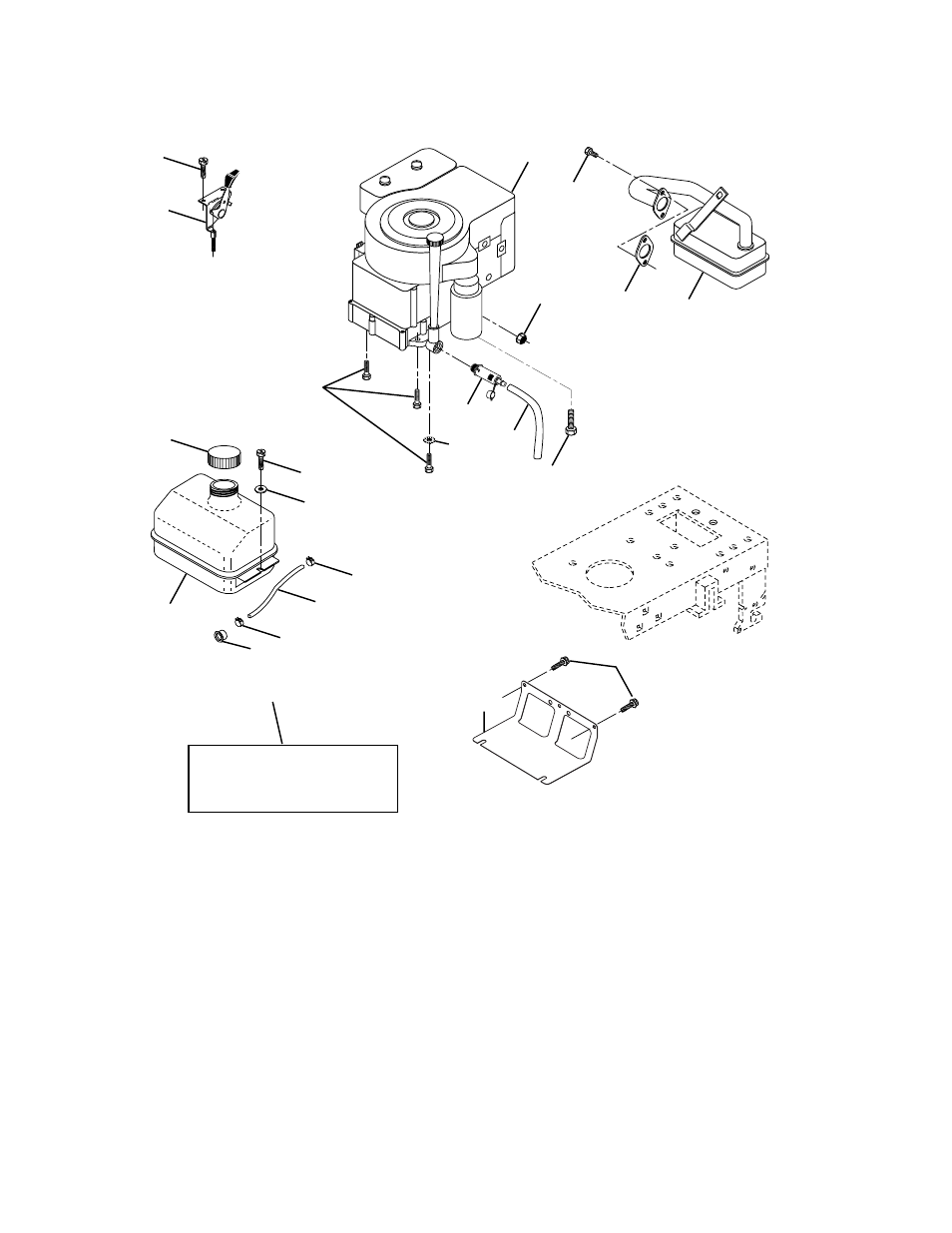

REPAIR PARTS
TRACTOR - - MODEL NUMBER MC1136 (MC1136B), PRODUCT NO. 964 77 30-01
ENGINE
33 532 12 34-87 Clamp Hose
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
40 532 12 40-28 Bushing Snap NYL BLK Fuel Line
44 817 67 04-12 Screw Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
72 532 18 39-06 Screw 5/16-18 x 1
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 Unc
KEY PART
NO. NO. DESCRIPTION
