3. Operation

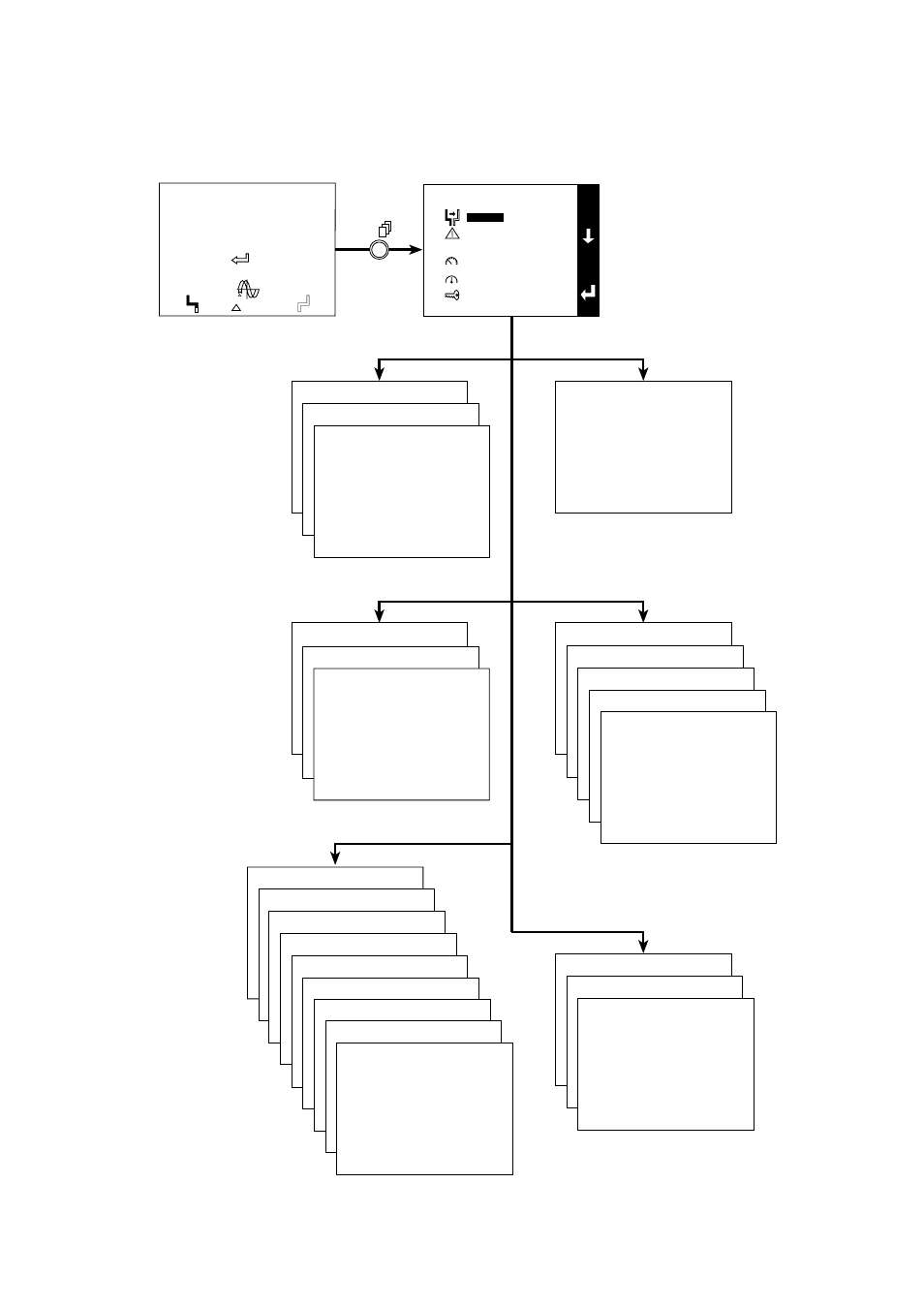

3.4 Display screens
Transfer Alarms
Initial screen
Measurements Status
Main screen
Transfer
Alarms
Status
Measurements
Setup
Maintenance
MAIN MENU
MANUAL TRANSFERT
Transfer without break
Transfer with break
ALARMS
STATUS
EVENT LOG
STATISTICS
CURRENT MEASUREMENTS
VOLTAGE MEASUREMENTS
FREQUENCY MEASUREMENTS
POWER MEASUREMENTS
LOAD MEASUREMENTS
Maintenance
Setup
SETUP
LANGUAGE
ADJUST DATE AND TIME
CONTRAST
BUZZER VOLUME
SOURCE NAMES
NEW PASSWORD
PERSONALIZATION
DRY CONTACT SETTINGS
E
S
C
VOLT
0 1 0 1
1 0 1 0
0 1 0 1
DOWNGRADED MODE
I1 17 A I2 9 A I3 2 A
1 KW 6 KVA
PF 0.3
preferred
synchro
UPS 1
= 64 °
V1 244 V
V2 230 V
V3 232 V
50.0 Hz
UPS 2
V1 232 V
V2 229 V
V3 230 V
50.0 Hz
MAINTENANCE
DISPLAY TEST
UNIT ON BYPASS
