10 Using the SC140 Enhanced OnCE Stopwatch Timer

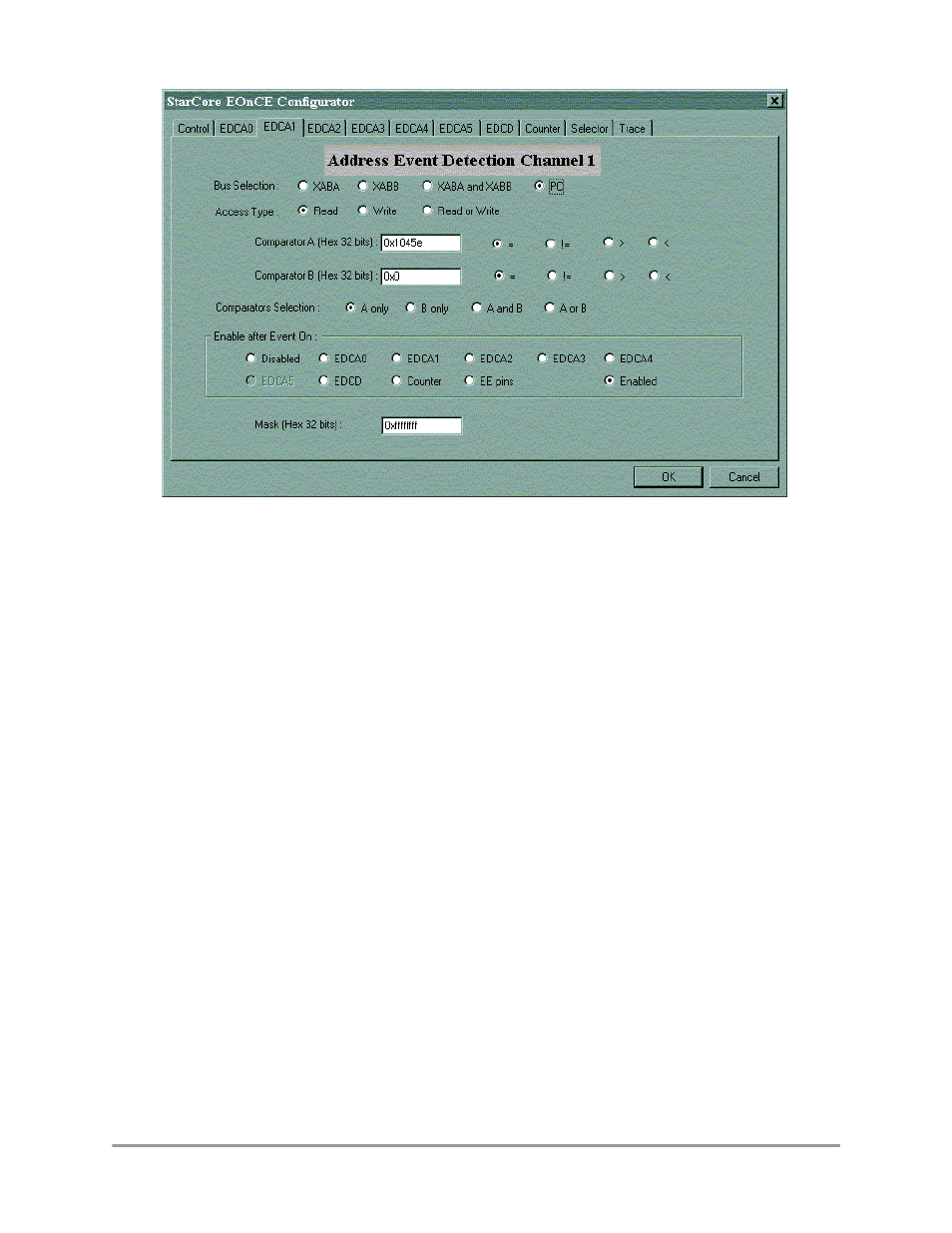

Figure 5. Event Detection Settings
4.1.2 Setting Up the Event Counter
The event counter is configured to the same mode as described in Section 3.2.1, “Event Counter Control,”
on page -5, except this time the configuration is made using the debugger windows:
1. Choose EOnCE > EOnCE Configurator > Counter.
2. Click Core Clock in the “What to count” box.
3. Click EDCA1 in the “Enable after Even On” box.
4. Type “0xffffffff” in the “Event Counter Value (Hex 32 bits)” box.
5. Check the box in the left side of “Extension Counter Value (Hex 32 bits)”.
The result of this procedure is shown in Figure 6 on page -11.
