– 11 –
EN
1L25
HOOKUPS
FOR TVs WITH S-VIDEO INPUT JACK
Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy pictures at higher
quality.

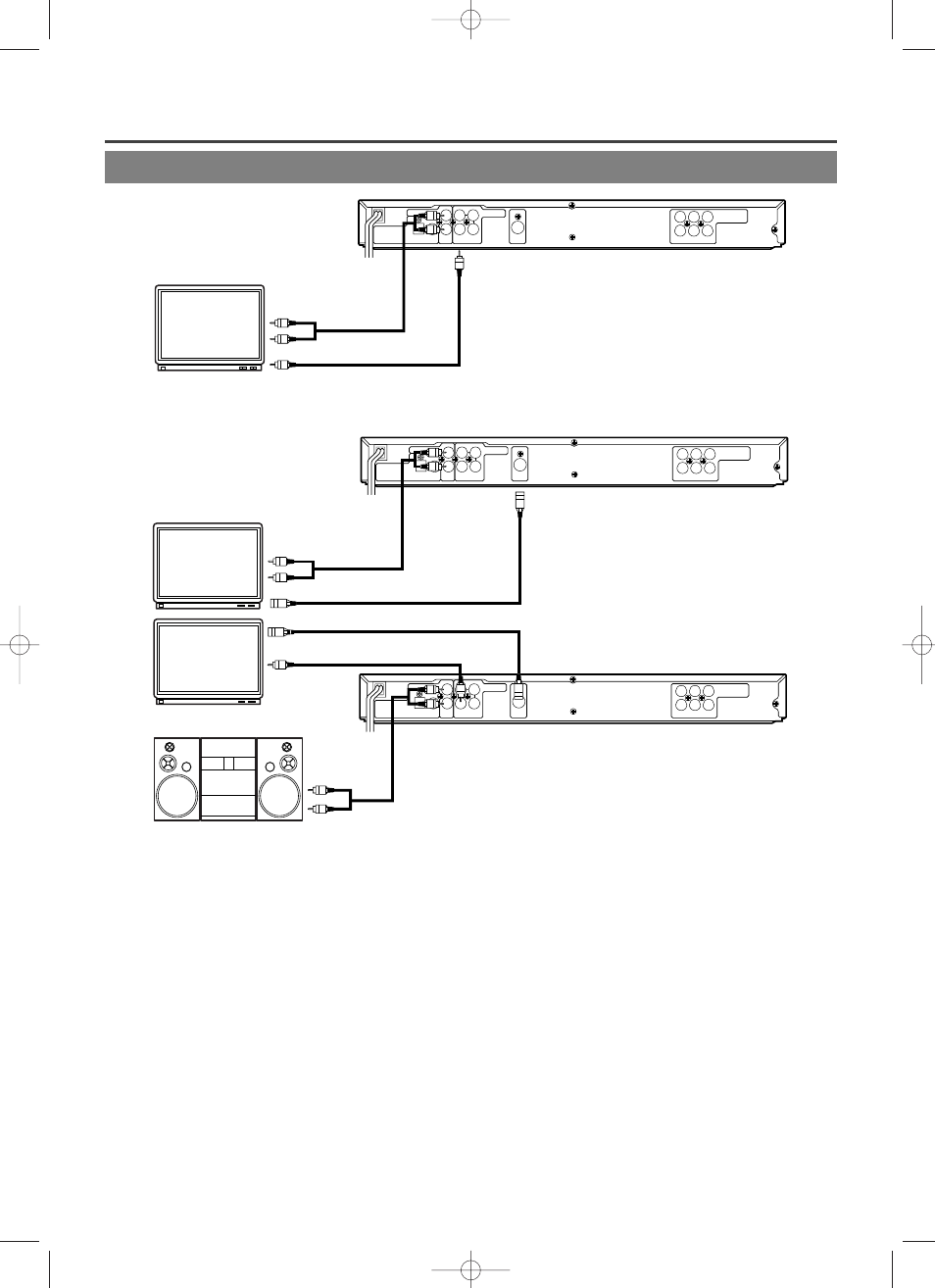

CONNECTING TO A TV
VIDEO OUT
OPTICAL COAXIAL
R
L
Y
Cr
VIDEO
S-VIDEO
OUT
Cb
CENTER
SUBWOOFER
L
R
SURROUND
R
FRONT
L
ANALOG
5.1 CH
AUDIO OUT
AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
To VIDEO OUT jack
To VIDEO INPUT jack
To Right (red)
and Left (white)
To AUDIO OUT jacks
AUDIO INPUT jacks
Notes
¡
Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
¡
Be sure to turn off the power to all components in the system before connecting another component.
¡
Refer to the Owner’s Guides for your TV, stereo system and any other components to be connected to the DVD player.
VIDEO OUT
OPTICAL COAXIAL
R
L
Y
Cr
VIDEO
S-VIDEO
OUT
Cb
CENTER
SUBWOOFER
L
R
SURROUND
R
FRONT
L
ANALOG
5.1 CH
AUDIO OUT
AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
To Right (red) and Left (white)
AUDIO OUT jacks
Stereo system
To VIDEO
INPUT jack
To VIDEO OUT jack
To S-VIDEO INPUT jack
To S-VIDEO OUT jack
but not both
To ANALOG AUDIO INPUT jacks
VIDEO OUT
OPTICAL COAXIAL
R
L
Y
Cr
VIDEO
S-VIDEO
OUT
Cb
CENTER
SUBWOOFER
L
R
SURROUND
R
FRONT
L
ANALOG
5.1 CH
AUDIO OUT
AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
To S-VIDEO OUT jack
To S-VIDEO INPUT jack
To Right (red)
and Left (white)
AUDIO INPUT jacks
To AUDIO OUT jacks
Selecting 480p Progressive Scan or 480i Interlaced Playback
¡
If your TV is compatible with 480p progressive scanning, connect the TV to the Component Video Output
jacks of the DVD player and set "PROGRESSIVE" to "PROGRESSIVE" in the display setting. Next, set your
TV to the progressive scan mode. Refer to pages 31 and 32 for instructions on changing the display setting.
¡
If your TV is not compatible with progressive scan, set "PROGRESSIVE" to "INTERLACE".
¡
Use a commercially available adaptor if the video input jacks of your TVs or monitors are the BNC type.
What is Progressive Scanning?
¡
Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in
higher resolution than that of traditional 480i television signals.
