Murphy Lube Level Maintainer LM2000S - Manual (Page 2)

LM-00010B page 2 of 2
Shutoff
Valve
Oil Outlet
Electrical Conduit
wire to switch circuits
Oil
Inlet
LM2000
Oil Level Maintainer
CRANKCASE
CLEAN Oil Supply Tank.
Height above LM recommended
2 ft. (0.6m) minimum and 25 ft
(7.7m) maximum.
For vented crankcase use the
plastic vent plug or optional
vent tube kit (15000954).
For sealed systems, vent must be
piped back to crankcase,
above oil level.

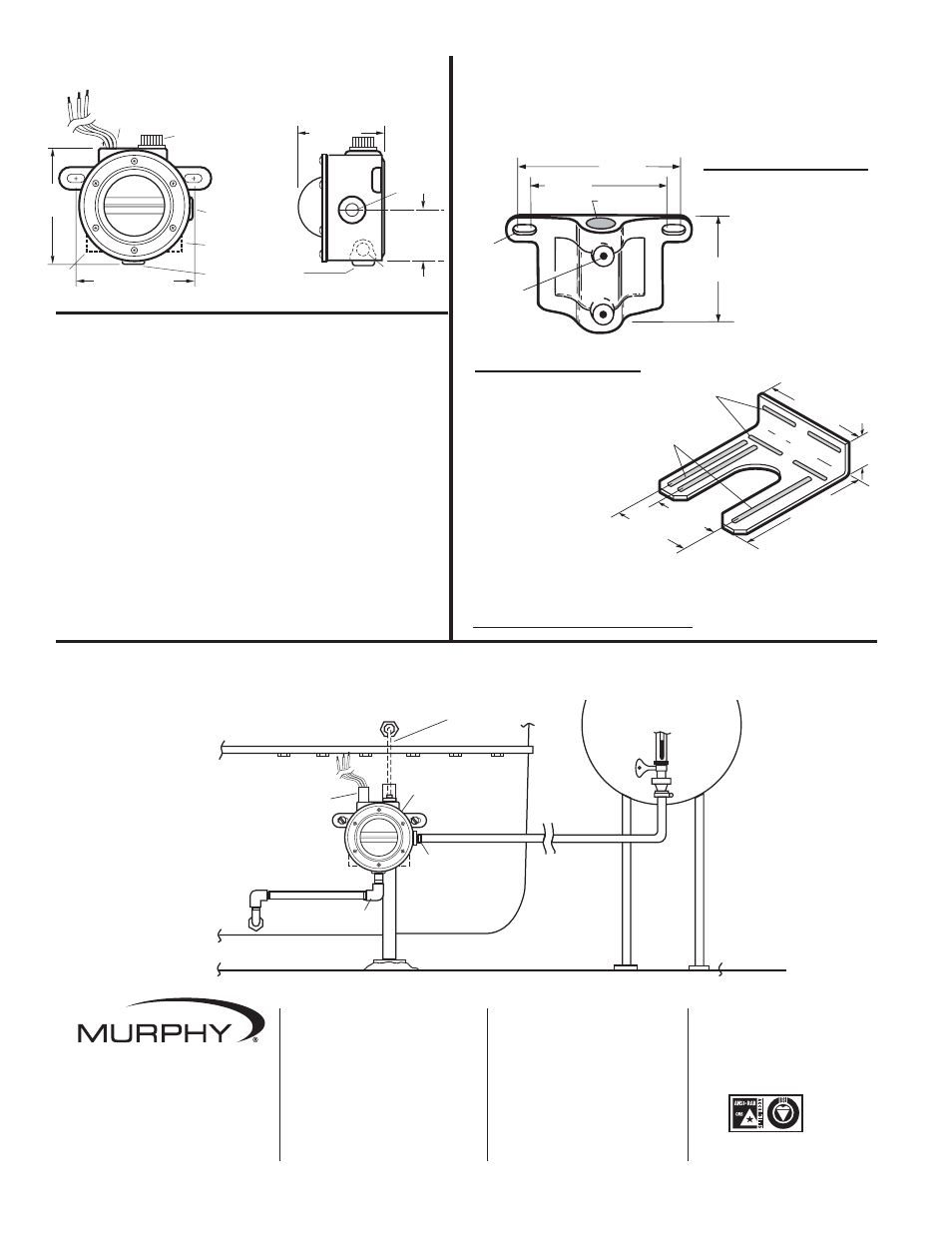

LM2000 Typical Installation
1-3/4 in.
(44 mm)
7-1/2 in.
(191 mm)
Slot, 29/64 in. (14 mm)
x 4-3/8 in. (111 mm)
3 places
6-11/16 in.
(170 mm)
Slot, 29/64 in. (14 mm)
x 2-3/8 in. (60 mm)
4 places
4-1/2 in.
(114 mm)
5-3/16 in.
(132 mm)
4-1/2 in.
(114 mm)
5-3/16 in.
(132 mm)
2-1/2 in.
(63.5 mm)
Hole 7/8 in.
(22 mm) dia.
1/4-20 NC
2 places
9/32 x 5/8 in.
(7 x 16 mm)
2 places
1/2 in. Electrical
Female Conduit
Connection
Crankcase
Balance Vent
1/2 NPTF
4-5/8 in.
(117 mm)
4-1/2 to 5-3/16 in.
(114 to 132 mm)
Oil Inlet
Connection
1/2 NPTF
Oil Outlet
Connection
3/4 NPTF
3/8 NPTF
LM2000S
3/8 NPTF
LM2000S
2-7/8 in.
(73 mm)
CL 2-1/4 in.
(57 mm)
Oil Inlet
Connection
1/2 NPTF
Oil Outlet
Connection
3/4 NPTF
3/8 NPTF
LM2000S
How to Order
Specify model LM2000
LM2000S
Accessories ( Specify part number)
Description Part Number
Vent Fittings Kit 15000954
Hose Kit 15000355
1/2NPT x 1/2 in. Hose Barbed Fittng 89080801
3/4NPT x 1 in. Hose Barbed Fitting 89081001
3/8NPTF x 1/2 in. Hose Barbed Fittng 89080601
Pipe Bracket Kit
15000238
Universal Flange Kit 15010224
LM2000/LM2000S Shipping Dimensions:
9 x 5-1/2 x 6 in. (229 x 140 x 152 mm).
LM2000/LM2000S Shipping Weight:
3 lbs. 6 oz. (1.5 kg)
Mounting Brackets with Hardware
Murphy offers two mounting brackets for the LM2000. The 15000238 Pipe
Bracket Kit fits a 7/8 in. (22 mm) diameter pipe (see typical installation
below). The 15010224 universal Flange Kit allows various mounting methods.
Dimensions
15000238
Pipe Bracket Kit
15010224
Universal Flange Kit
Additional Hardware
Supplied
(2) 1/4-20 x 7/8 inch
(22 mm) screws
(2) 1/4-20 x 1 inch
(25 mm) screws
(4) 1/4-20 hex nuts
(4) 1/4 inch (6 mm) dia.
split washer
Additional Hardware Supplied
(2) 1/4-20 x 1-1/4 inch
(32 mm) bolts
(4) 1/4 inch dia. flat washer
(2) 1/4-20 hex nuts
(2) 5/16-18 x 1-1/4 inch
(32 mm) bolts
(4) 5/16 dia. flat washer
(2) 5/16-18 hex nuts
Warranty
A limited warranty on materials and workmanship is given with this FW
Murphy product. A copy of the warranty may be viewed or printed by going to
www.fwmurphy.com/support/warranty.htm
