SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS
Lenticular Screen and Fresnel Lens Installation
Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High heat and humidity may
deform the Lenticular Screen and Fresnel Lens.

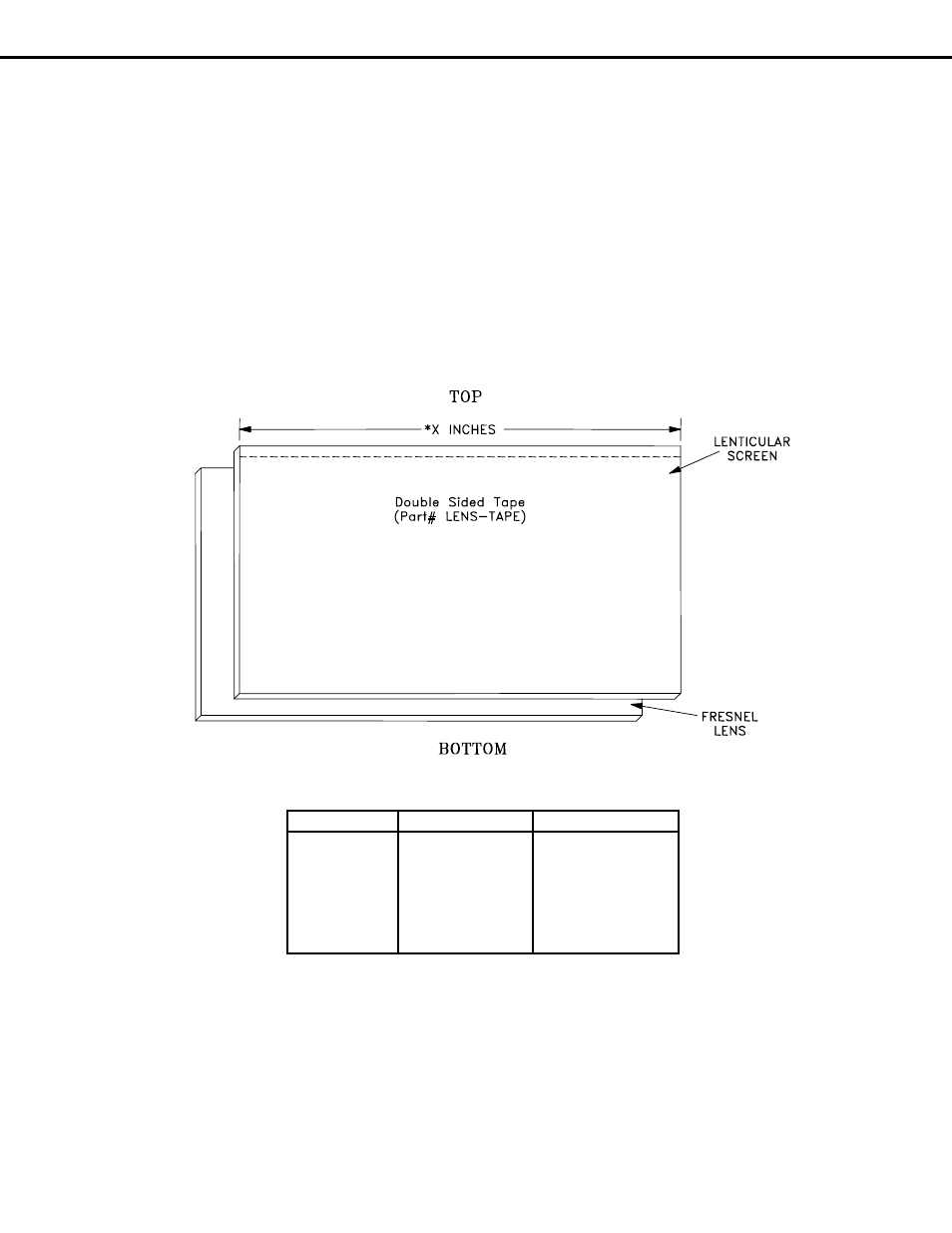

1. Apply double coated tape (Part #LENS-TAPE) along the top rear edge of the Lenticular Screen, as shown
below. Refer to the table below for the tape length.
2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge
to bond them together.
3. Reverse the Screen Removal procedure to insert the screens in the Screen Frame Assembly.
MODEL
SCREEN SIZE
TAPE LENGTH
WD-52525
52 Inches
46.3 Inches
WD-52725
"
"
WD-52825
"
"
WD-62525
62 Inches
55.1 Inches
WD-62725
"
"
WD-62825
"
"
*X INCHES - Refer to the Tape Length in the table below
