ADVANCED CONNECTIONS
CD Player

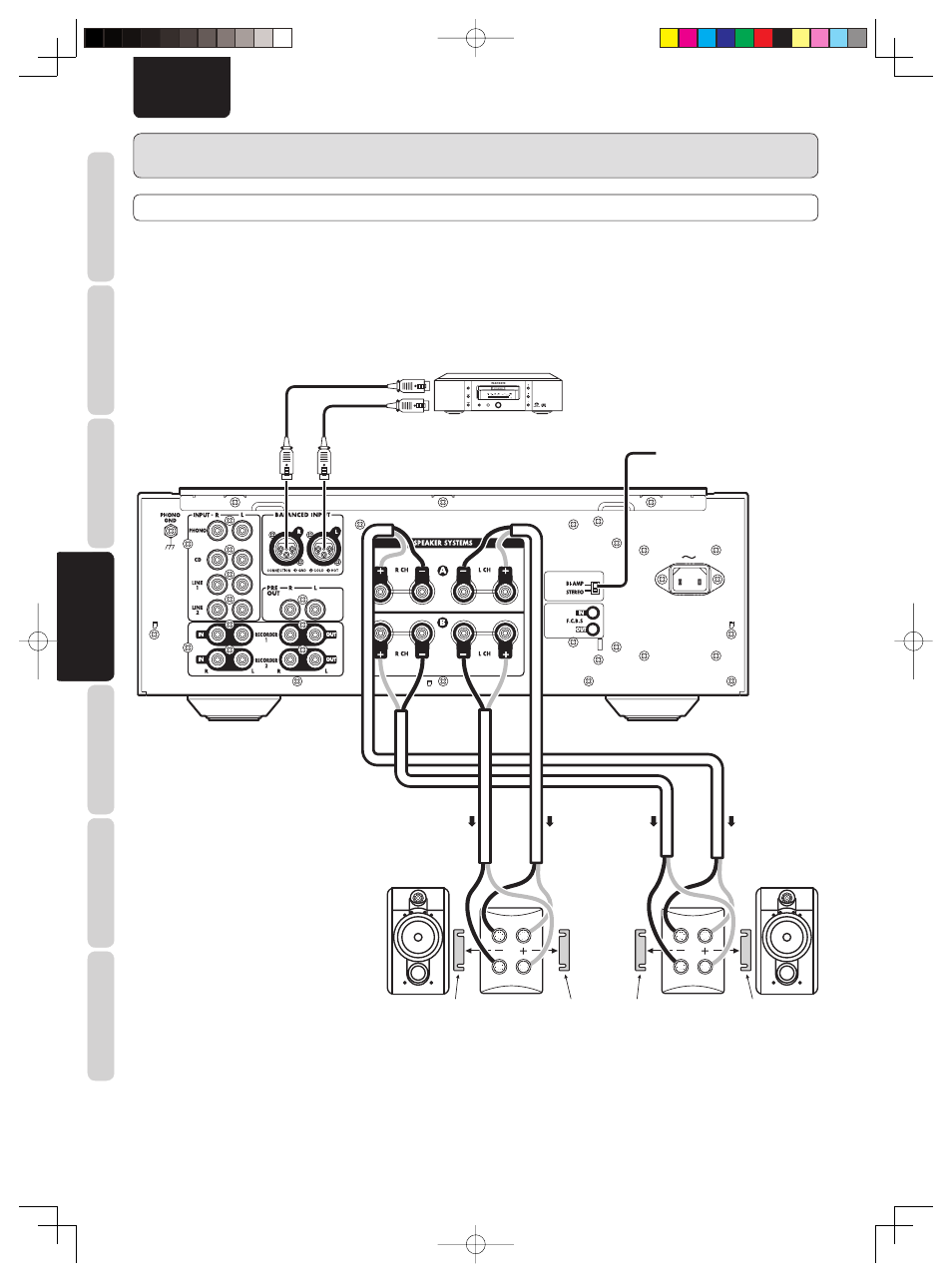

BI-WIRING CONNECTION
A bi-wiring connection separately connects the low and mid/high jacks of the speaker to the amplifier using separate speaker
cables. Because separate cables are used for low and mid/high sounds, the return current generated in the low speaker causes
little interference with the mid/high speaker.
• If speakers that do not support bi-wiring connection are used, connect them to either the SPEAKER A or B terminals.
• If using speakers that do not support a bi-wiring connection, connect them to either the SPEAKER SYSTEM A or B terminals.
AC IN 3
1 2
3
1 2
MF / HF
LF
MF / HF
LF
PAUSE PAUSE
STOP STOP
PLAY PLAY
DISPLAY OFF
OPEN/ OPEN/
SOUND SOUND POWER ON/OFF POWER ON/OFF
SUPER AUDIO CD PLAYER SA-11S1 SUPER AUDIO CD PLAYER SA-11S1 CLOSE CLOSE
MODE MODE
To balanced
output jacks
Set to “STEREO”.
Remove shorting bar. L CH
speaker
R CH
speaker
Remove shorting bar. Remove shorting
bar.
