23
Table no.2
Air adjusting (mm)
Gas type
Oven Grill
G20 2,5 25,5
G30 3,5 30
G31 3,5 30
Hob burners

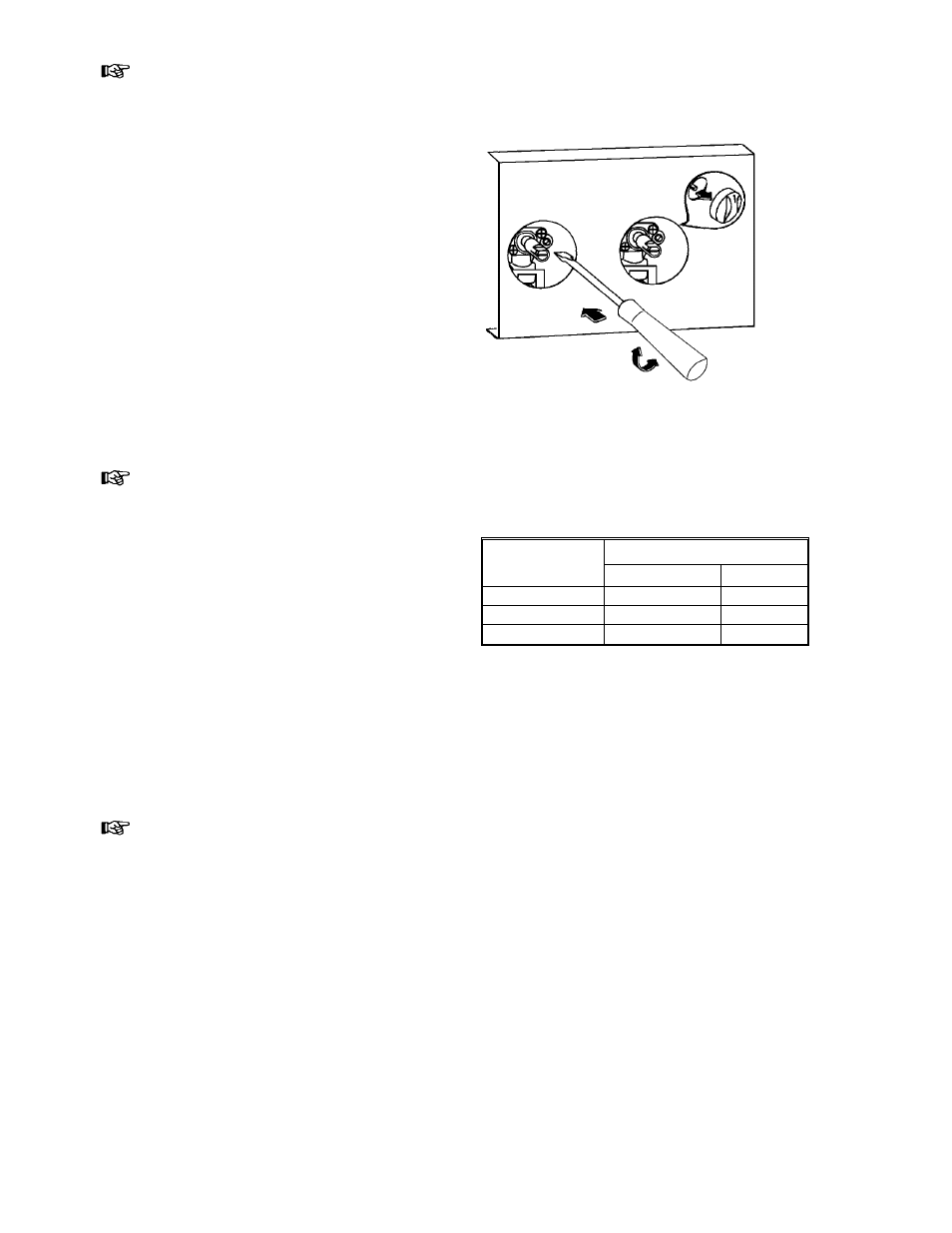

To adjust the minimum level:
• Light the burner
• Turn the knob to the position of the
minimum flame;
• Remove the knob;
• Unscrew or screw the by-pass screw (on
the left above of tap shaft) until a regular
small flame is reached.
• For LPG, adjust the by-pass screw for
minimum flame setting.
Reassemble the parts following the same
procedure in reverse.
Check that, when turning the knob quickly
from the maximum position to the minimum
one, the flame does not go out.
Replace the nozzles of the oven burners
Oven burner
To replace the gas oven nozzle, follow this
procedure:
• Check the table no.1 for diameter of
nozzle;
• Remove the oven removable base
panel;
• Remove the screw on the oven burner
rod at the rear of the oven;
• Remove the oven burner by pushing it
backwards.
• Replace the nozzle by means of a No 10
socket spanner;
Reassemble the parts following the same
procedure in reverse.
Grill burner
To replace the gas grill nozzle, follow this
procedure:
• Remove the grill burner after removing
the fixing screw.
• Replace the nozzle by means of a No 10
socket spanner;
• Refit all parts and test.
