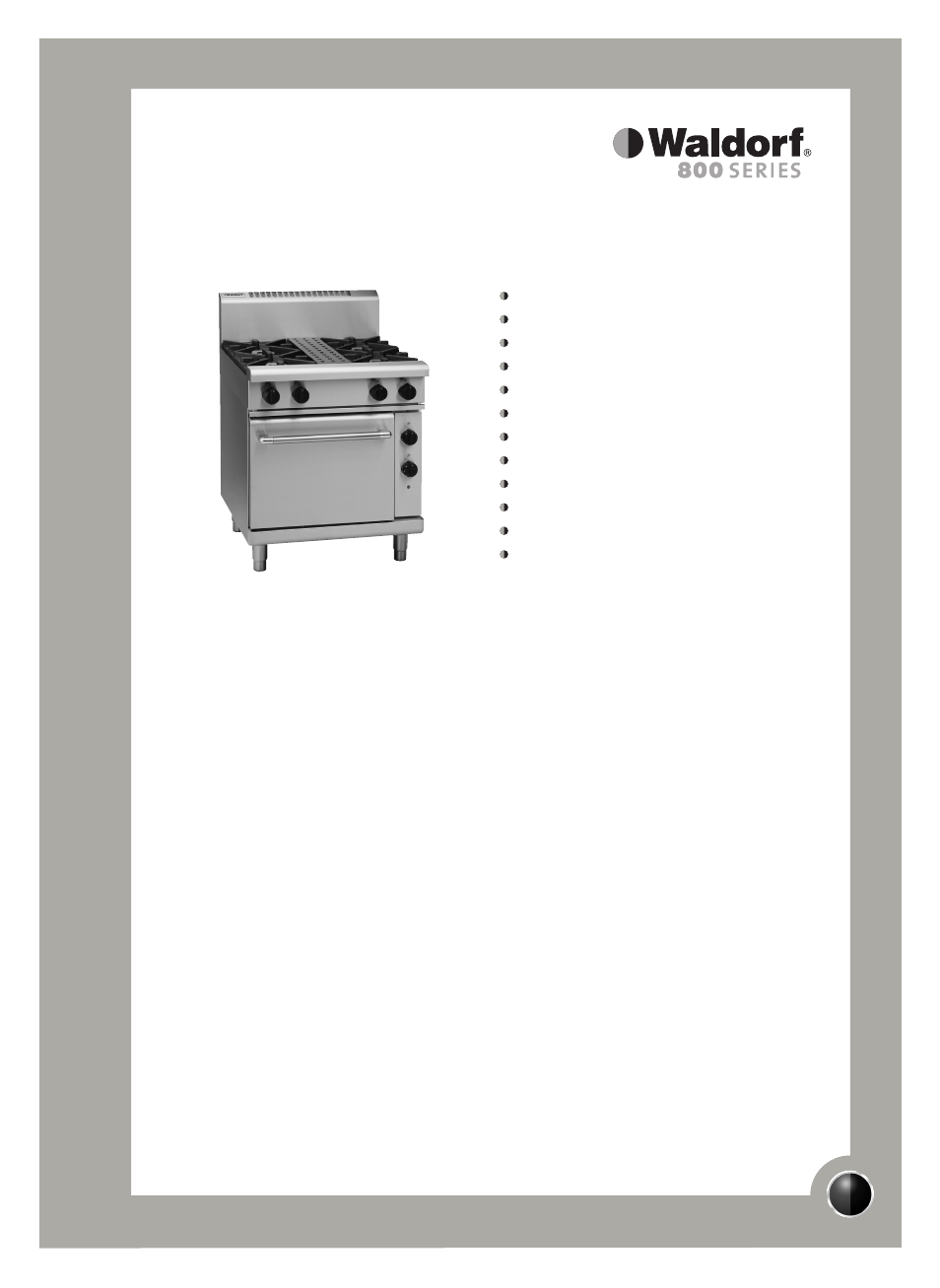

background image

Technical data sheet for

GAS RANGE ELECTRIC

STATIC OVEN 750mm

RN8510GE, RN8513GE

Heavy-duty construction
28 MJ/hr open burners
Flame failure standard
Pilot burners optional
300mm griddle plate options
Optional simmer plates
GN 1/1 5.5kW electric static oven
Drop down door
Stainless steel exterior
Easy clean
Easy service
Fully modular

Overall Construction

• Galvanized steel chassis
• Welded hob with 1.5mm 304 stainless steel bull nose
• Splashback and hob sides 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel

with adjustable feet

Cooktop

• Cast iron 28MJ/hr open burners with forged brass cap
• Vitreous enamelled cast iron potstands
• Vitreous enamelled open burner spill covers
• Cast iron simmer plates (optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled spill trays
• Aluminised steel internal construction
Griddle sections are standard on RH side. Available on LH side to

order or by conversion.

Oven

• Fully welded and vitreous enamelled oven liner
• GN 1/1 capacity with 4 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Cast iron even heat oven sole plate
• 5.5kW heating elements
• Welded frame drop down door with heavy-duty spring

hinge system
• 0.9mm 304 stainless steel door outer
• 1.0mm press formed vitreous enamelled door inner
• High density fibreglass insulated
• Stay cool stainless steel door handle with cast metal handle mounts
• Supplied with two chrome wire oven racks

Controls

• Large easy use control knob - heat resistant reinforced
• Easy view control settings on knob

Cooktop

• Variable high to low controls to open burners
• Open burners flame failure standard with pilot burners optional
• Variable high to low controls to griddles
• Griddles standard with pilot, flame failure and piezo ignition

Oven

• Separate temperature and top heat power regulation controls
• 50-320˚C thermostatic control
• Lo-Hi top heat control
• Indicator lights for power and heating

Cleaning and Servicing

• All models with easy clean stainless steel external finish
• Lift off burners heads and vitreous enamelled burner spill covers
• Vitreous enamelled spill trays under open burner and

griddle sections
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• Door hinge spring adjustable on unit (door outer removed)
• Door disengages for lift off removal and increased service access
• Access to all parts from front of unit
