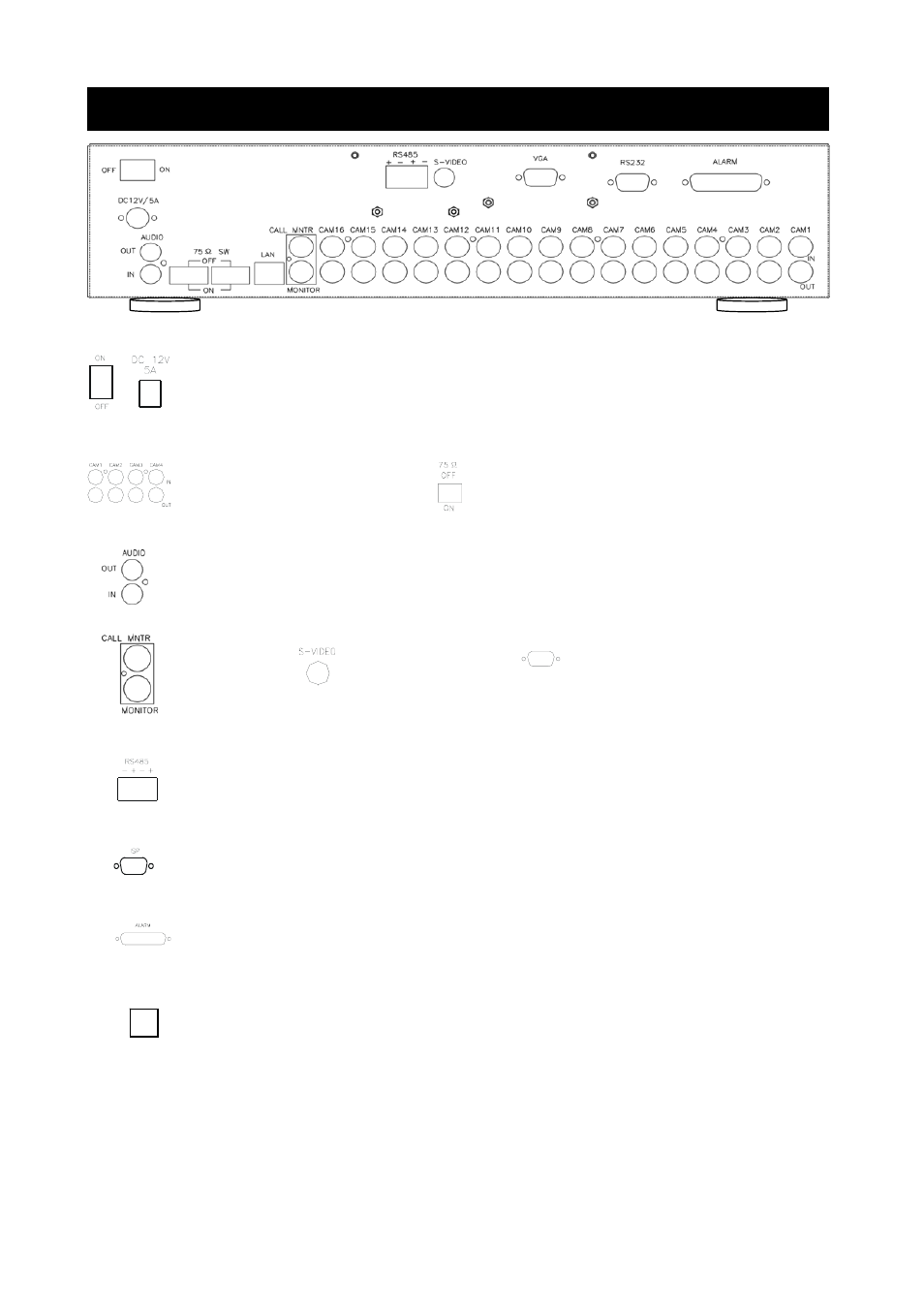

Unit Description of Rear Panel
Power cord in 12V/5A, power switcher (ON / OFF)
Camera 1 ~ 16 in and
looping out
Audio channel input x 1 and output x 1
75 Ohm ON/OFF (high/low adjust)
Monitor out
VGA output. PC monitor connector.
(Optional)
VGA
S-Video (Y/C) monitor
RS-485 control keyboard connector
6
RS-232 connector (ISP. For RD control)
Alarm connector
LAN
