Maxtor 16 Channel Digital Video Recorder - Manual (Page 50)

VGA Description (Optional)
Accessories:
1. 20 PIN Male to Female D-SUB pin cable X 1
2. VGA PCB bracket X1
3. Screws X4
(Only fit on product serials Z7-00-VGA0-00)

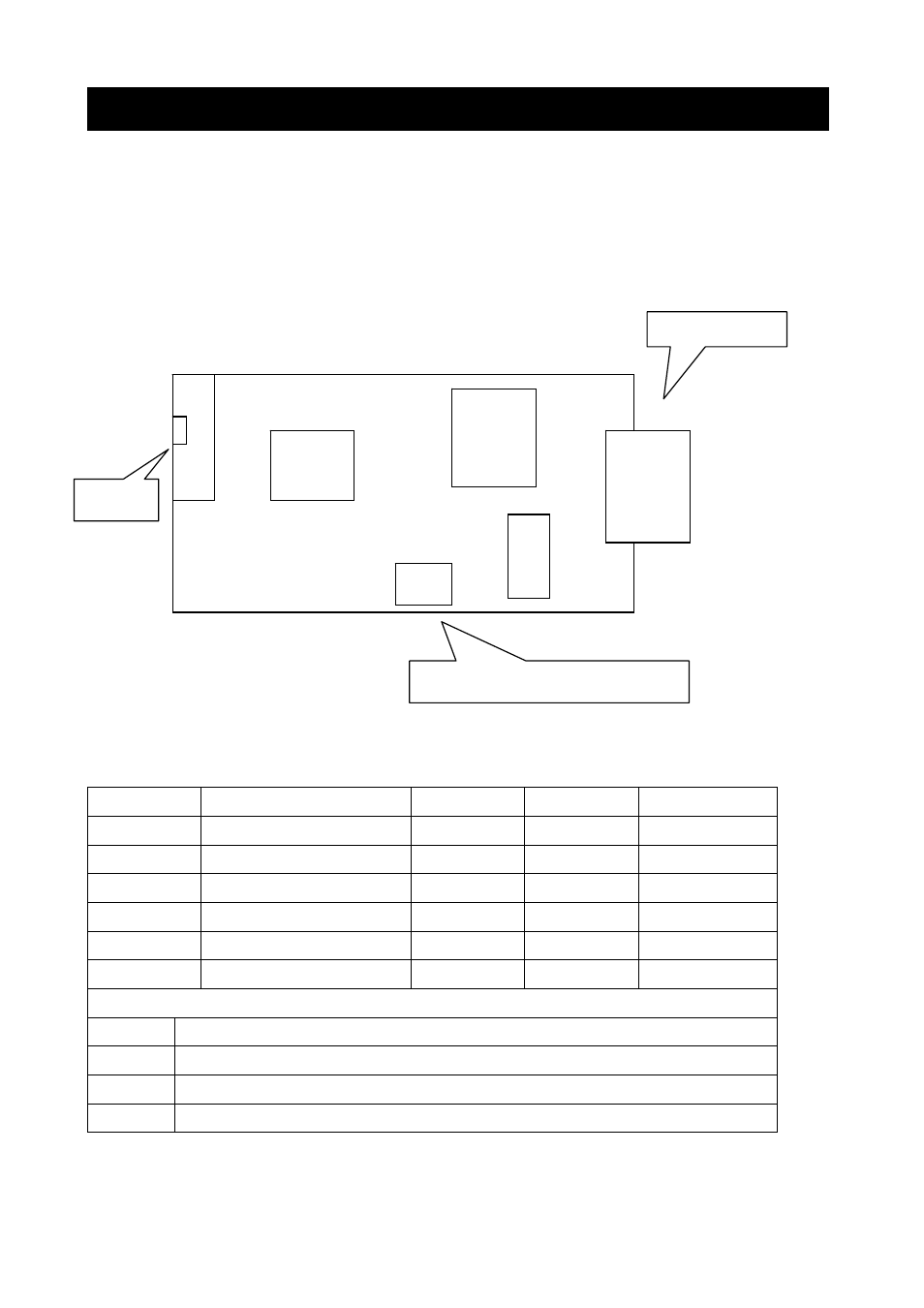

1. VGA board introduction.
Socket
VGA connector
Resolution and NTSC/PAL switcher
3. Resolution and NTSC/PAL switcher table
Pin 4 Resolution Pin 1 Pin 2 Pin 3
PAL -----ON 640X480 60HZ ON ON ON
NTSC ---OFF 800X600 60HZ ON ON OFF
1024X768 60HZ ON OFF ON
640X480 75HZ ON OFF OFF
800X600 75HZ OFF ON ON
1024X768 75HZ OFF ON OFF
Resolution and NTSC/PAL switcher description
Step. 1 DVR Power off
Step. 2 Pin 4 switcher to NTSC or PAL
Step. 3 DVR Power on
Step. 4 Pin 1 ~3 switcher resolution. It cannot be power off DVR.
50
