OM-227 674 Page 9
SECTION 3 − INSTALLATION
3-1. Specifications
Model
Wire Feed
Wire Diameter Range Type Of Input Power
Weight
Model
Wire Feed
Speed Range
Wire Diameter Range Type Of Input Power
Net Ship
AA40GBU
50 To 1400 ipm
(1.3 To 35.6 mpm)
.045 To .062 in
(1.1 To 1.6 mm)
40 VDC, 10 A
16-1/2 lb
(7.5 kg)
21-1/2 lb
(9.8 kg)

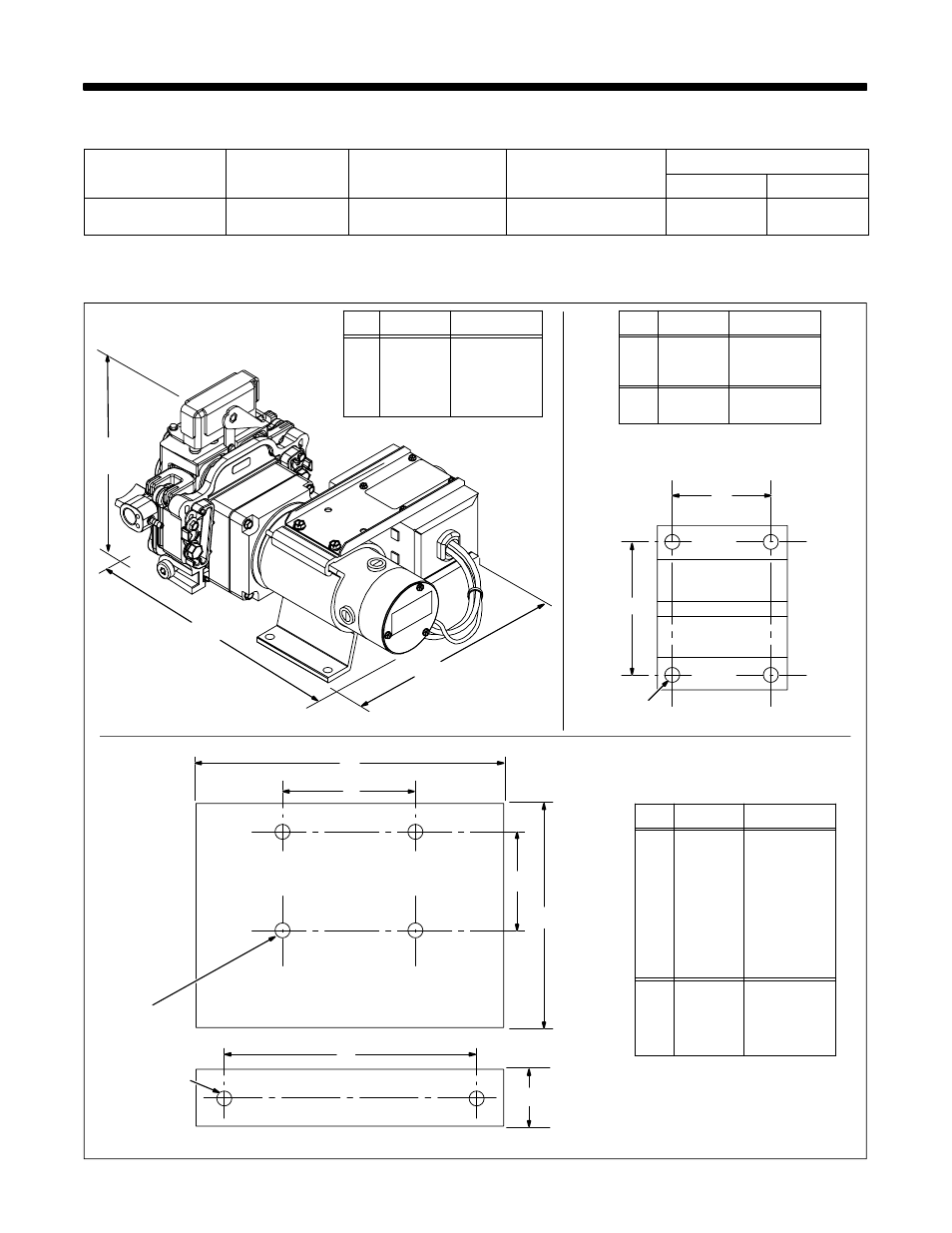

3-2. Overall Dimensions And Mounting Hole Layout
Ref. 804 102-B
Inches Millimeters
A 8 203
B 12-1/2 318
C 9-1/2 241
Inches Millimeters
A 3-1/4 83
B 3-1/2 89
C 3/8 Dia. 9.5 Dia.
4 Holes 4 Holes
C
A
B
Adapter Bracket
H
C
B
Inches Millimeters
A 7 178
B 3-1/2 89
C 3-1/4 83
D 6 152
E 5-1/2 140
F 1-1/2 38
G 25/64 Dia. 9.9 Dia.
2 Holes 2 Holes
H 3/8 Dia. 9.5 Dia.
4 Holes 4 Holes
A
D
G
E
F
B
C
A
